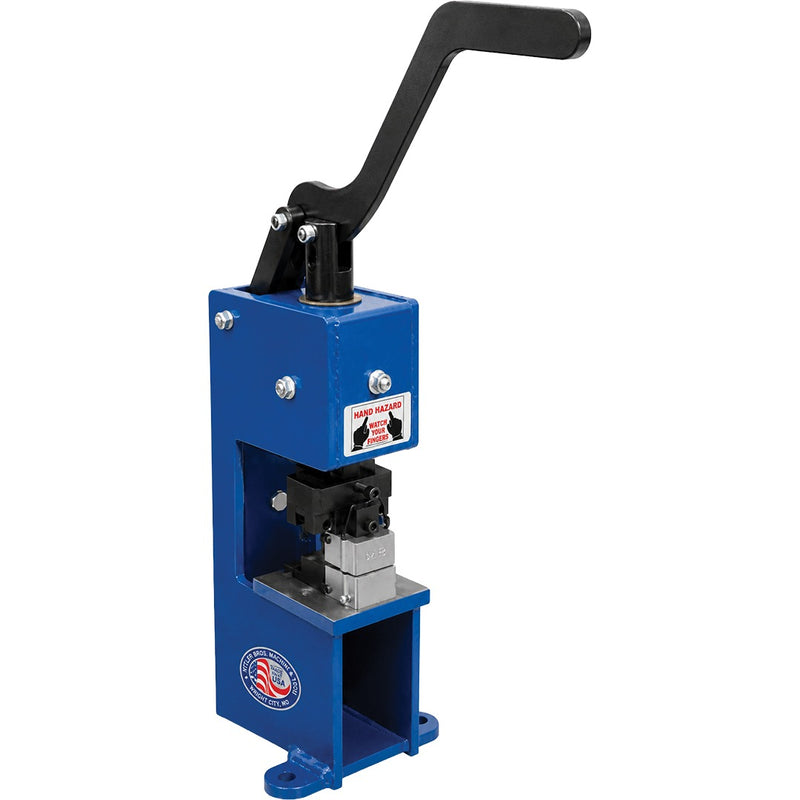

Mittler Bros. Small Manual Arbor Press (2240-1M)

SKU: 2240-1M  by Mittler Bros.
Made in the USA
$695.00 - $695.00
$695.00
$695.00 - $695.00
$695.00
Availability:
Only 1 left!

Call for our Best Deal (855) 605-4599

Mittler Bros. 2240-1M - Small Manual Arbor Press

  • 3" deep throat with 3" maximum clearance between tooling
  • 3" punch and flare in 18 gauge mild steel is the maximum tooling capacity Mittler rates it for
  • 5/16" welded plate frame with bronze bushings on the ram
  • Mounts on any stable surface using the included hole drill template
  • Bolts to either side of the 2240-2M Dual Manual Bench Press
  • Tooling mounts straight in or rotated 90 degrees for side to side work
  • Includes spring loaded center and upper and lower punch and flare adapters with bolts
  • Made in USA by Mittler Bros.
  • Ships at 45 lb in a 43" x 13" x 10" box
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2240-1M Small Manual Arbor Press with 3" Throat

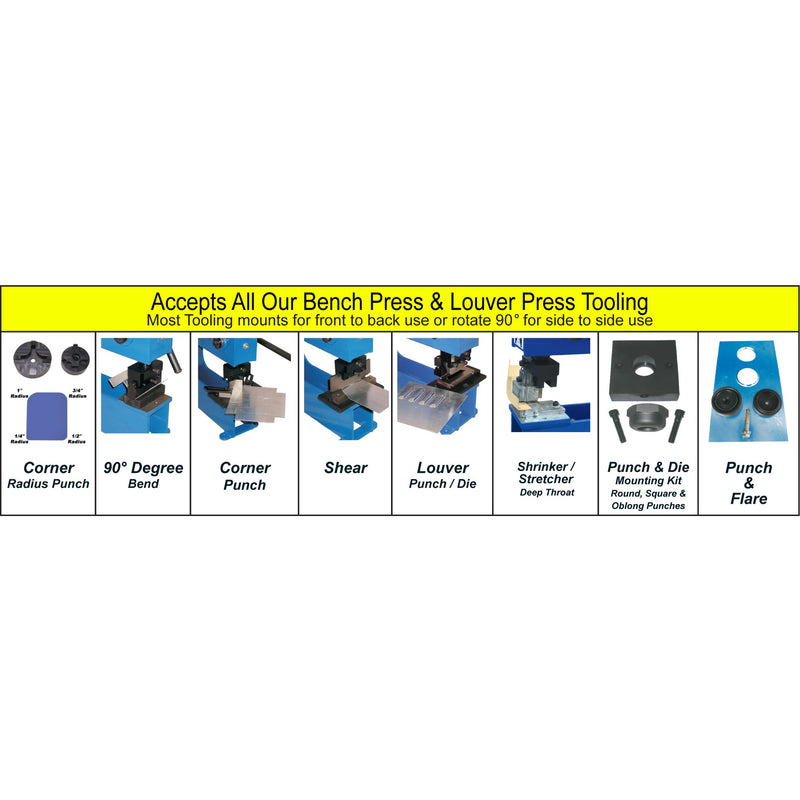

The Mittler Bros. 2240-1M is the smallest press in the range: a manual arbor press with a 3" throat that takes the same punch and flare dies and press tooling as the larger 2200 series presses.

A 3" throat means it works near the edge of the part. That covers flanges, brackets, tabs and gussets, which is where a lot of punch and flare work ends up. Mittler rates it for a 3" punch and flare in 18 gauge mild steel. It also earns a spot as a second station: leave one tool set up in it and stop swapping dies on your main press.

The frame is 5/16" welded plate with bronze bushings on the ram. It mounts on any stable surface using the included hole drill template. It ships at 45 lb in a 43" x 13" x 10" box.

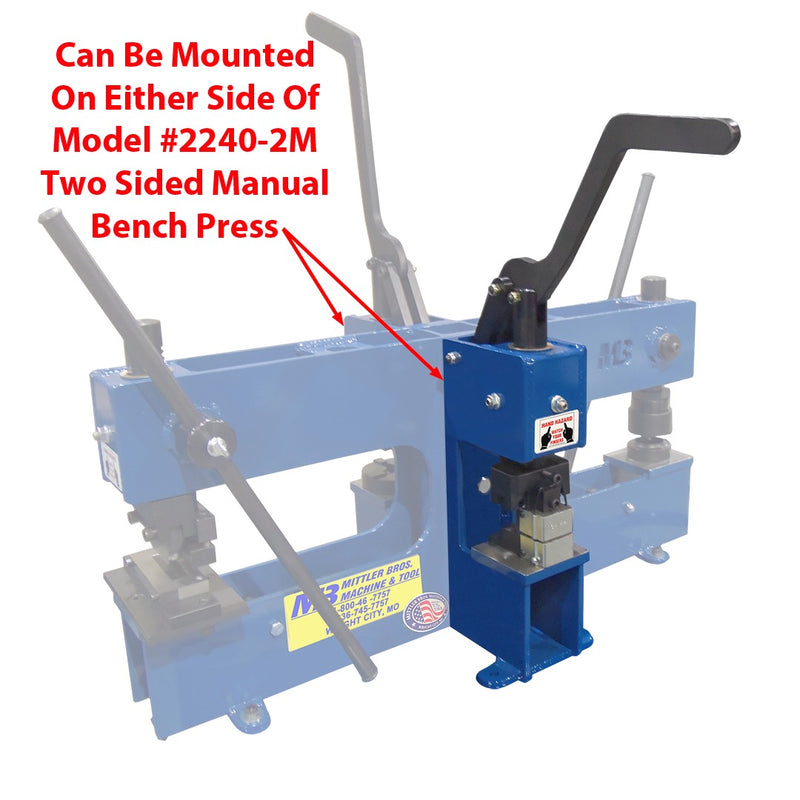

The 2240-1M also bolts to either side of the 2240-2M Dual Manual Bench Press using the pre-drilled holes. For work further from the edge, the 2200-M has a 12" throat. See all bench presses.
