Mittler Bros. Dual Manual Bench Press (2240-2M)

SKU: 2240-2M  by Mittler Bros.
Made in the USA
$2,100.00 - $2,100.00
$2,100.00
$2,100.00 - $2,100.00
$2,100.00
Availability:
Only 1 left!

Call for our Best Deal (855) 605-4599

Mittler Bros. 2240-2M - Dual 3 Ton Manual Bench Press

  • Two press stations on one frame, each with a 12" deep throat
  • 3 ton capacity, manually operated
  • Both sides can be operated at the same time
  • 3" maximum clearance between tooling
  • 3" punch and flare in 16 gauge mild steel is the maximum tooling capacity Mittler rates it for
  • 5/16" welded plate frame with bronze bushings on the rams
  • Pre-drilled to take a 2240-1M small press on either side
  • Includes quick index handles, 2 spring loaded centers, 2 slug ejector assemblies, 2 sets of upper and lower punch and flare adapters with bolts, and arbor nut wrench
  • Made in USA by Mittler Bros.
  • Ships at 126 lb in a 44" x 25" x 13" box
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

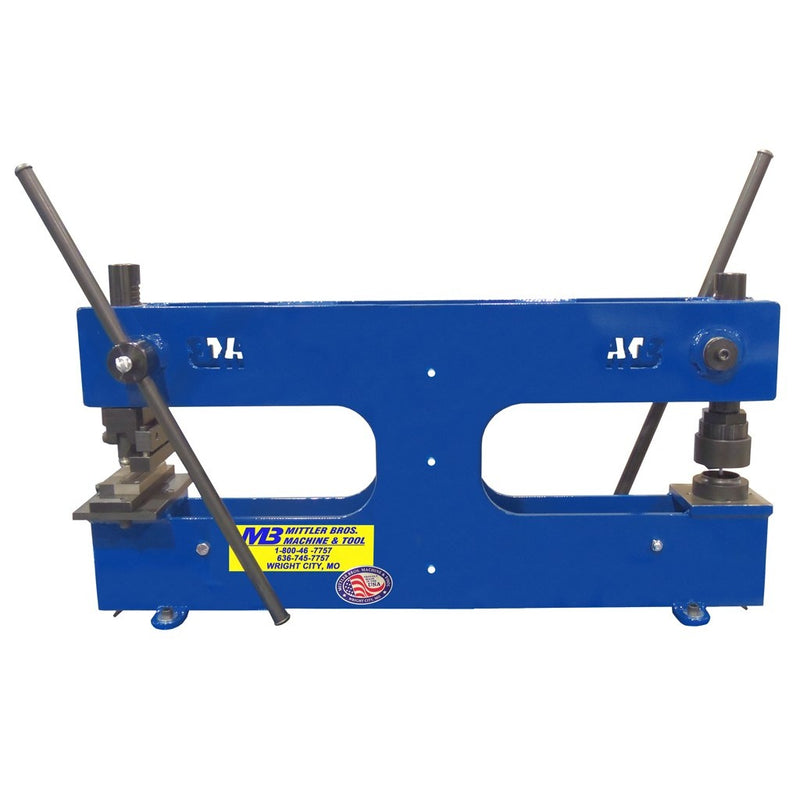

Mittler Bros. 2240-2M Dual 3 Ton Manual Bench Press - Two 12" Throat Stations

The Mittler Bros. 2240-2M puts two 3 ton manual press stations on one frame, one at each end, each with a 12" deep throat. Set a different tool in each side and both stay ready.

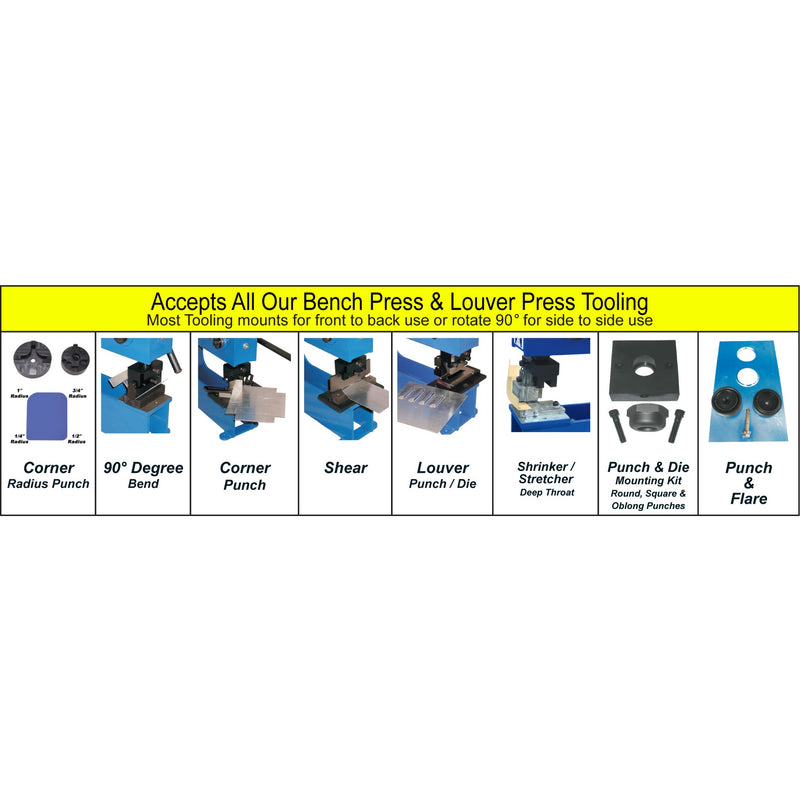

The point is setup time. Keep a punch and flare die in one station and a louver punch, corner punch or second die size in the other, and move the panel instead of changing tooling. Both sides can be operated at the same time, so two people can work it. Each station takes the same punch and flare dies and press tooling as the single 2200 series presses, and Mittler rates it for a 3" punch and flare in 16 gauge mild steel.

The frame is 5/16" welded plate with bronze bushings on the rams, and tooling mounts straight in or rotated 90 degrees. It ships at 126 lb in a 44" x 25" x 13" box.

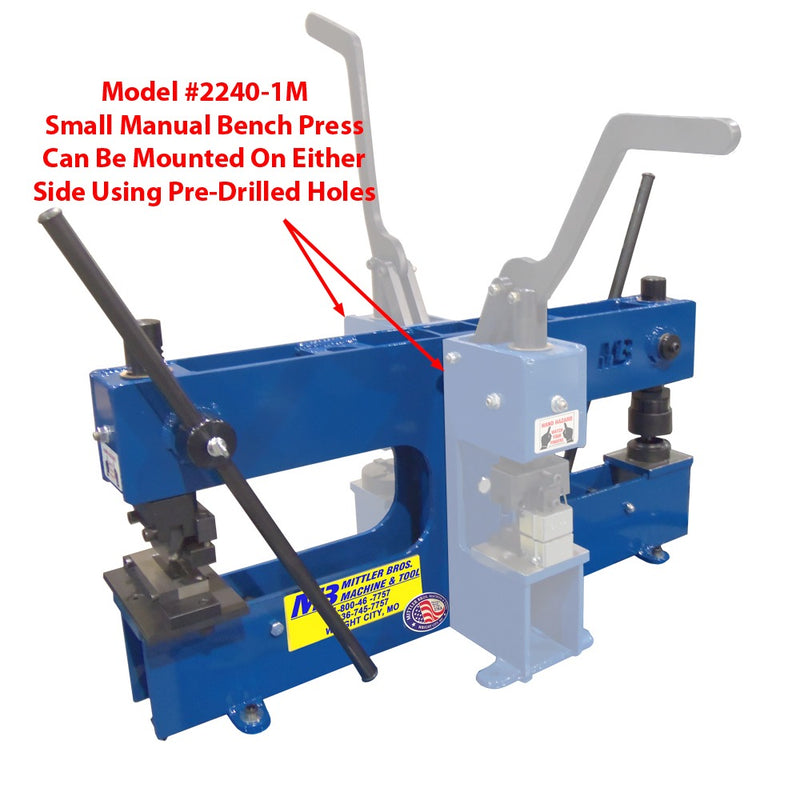

The frame is pre-drilled to take a 2240-1M small press on either side, which builds it out to four stations. Mittler also sells it that way as the 2240-4M Quad Manual Bench Press. See all bench presses.
