Mittler Bros. 2240-4M Quad Manual Bench Press

Mittler Bros. 2240-4M Quad Manual Bench Press - Compatible Press Tooling (Not Included)

Mittler Bros. Quad Manual Bench Press (2240-4M)

Name: Mittler Bros. Quad Manual Bench Press (2240-4M)
Brand: Mittler Bros.
SKU: 2240-4M
Price: 3350.0 USD
Availability: InStock

SKU: 2240-4M by Mittler Bros.

$3,350.00 - $3,350.00

$3,350.00

$3,350.00 - $3,350.00

$3,350.00

Availability:

Only 1 left!

Call for our Best Deal (855) 605-4599

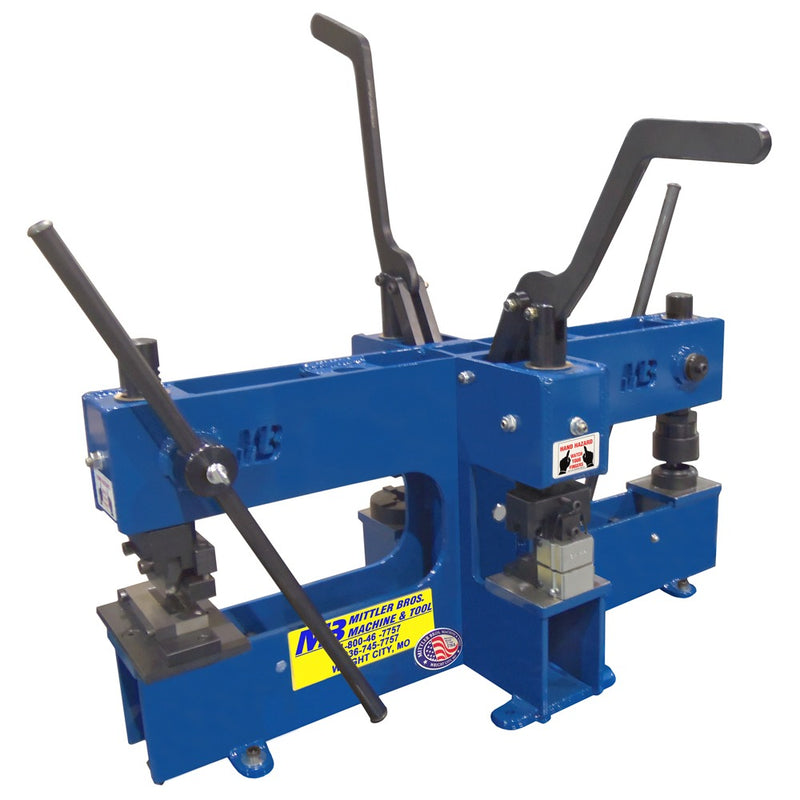

Mittler Bros. 2240-4M - Four Station Manual Bench Press

Four press stations on one frame: two 12" deep throats and two 3" deep throats
3 ton capacity, manually operated
3" maximum clearance between tooling
3" punch and flare in 16 gauge mild steel is the maximum tooling capacity Mittler rates it for
5/16" welded plate frame with bronze bushings on the rams

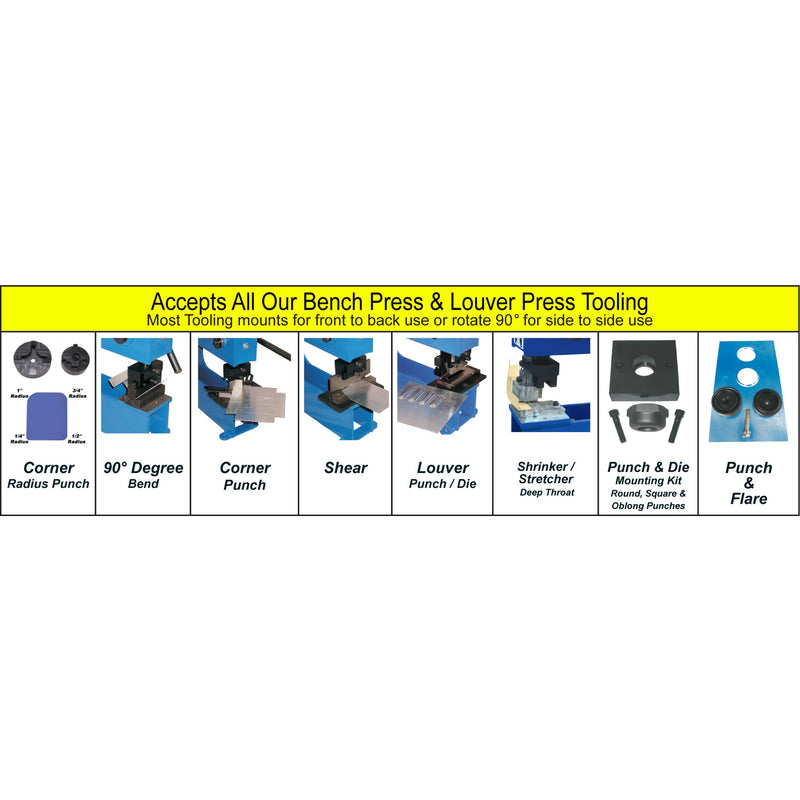

Tooling mounts straight in or rotated 90 degrees for side to side work
Includes quick index handles, 2 spring loaded centers, 2 slug ejector assemblies, 2 sets of upper and lower punch and flare adapters with bolts, and 2 arbor nut wrenches
Made in USA by Mittler Bros.
Ships truck freight at 210 lb

Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2240-4M Quad Manual Bench Press - Four Stations, 3 Ton

The Mittler Bros. 2240-4M is four manual press stations on one frame: two with 12" deep throats and two with 3" deep throats. It is built for shops that run several tools on the same part and do not want to stop and change dies.

Set up a punch and flare die, a louver punch, a corner radius punch and a second die size, then walk the panel around the press. The 12" stations reach into the panel and the 3" stations handle edge work. Every station takes the same punch and flare dies and press tooling as the rest of the 2200 series, and Mittler rates the press at 3 tons with a 3" punch and flare in 16 gauge mild steel.

The frame is 5/16" welded plate with bronze bushings on the rams. It ships truck freight at 210 lb.

The quad is a 2240-2M dual press with a 2240-1M small press bolted to each side, so you can also start with the dual and add stations later. See all bench presses.
