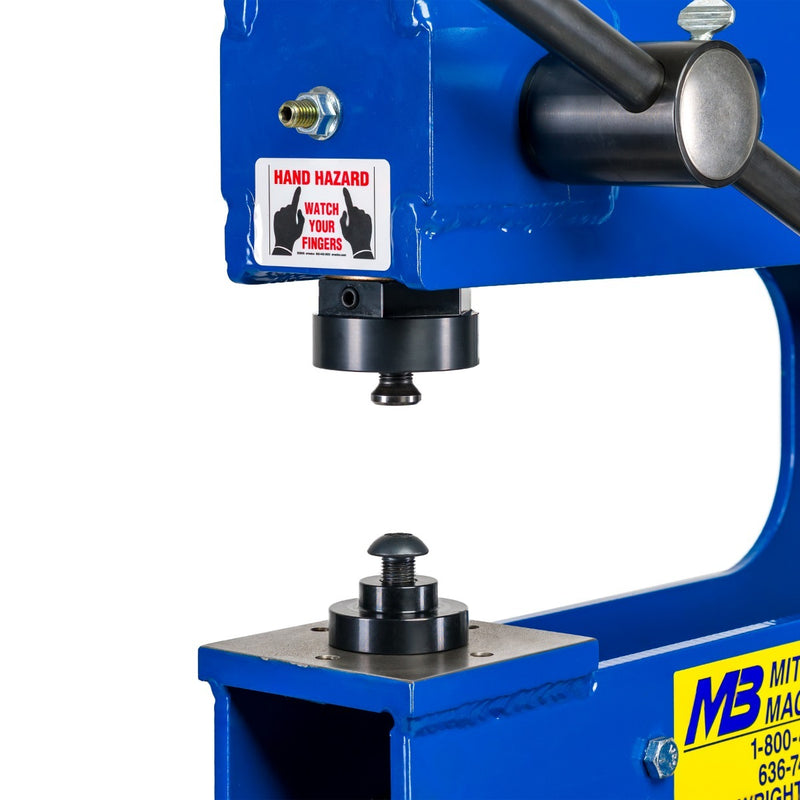

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Ram and Lower Adapter Close Up
Mittler Bros. 2200-M 3 Ton Manual Bench Press - Upper and Lower Adapters
Mittler Bros. 2200-M 3 Ton Manual Bench Press - On Optional Floor Stand

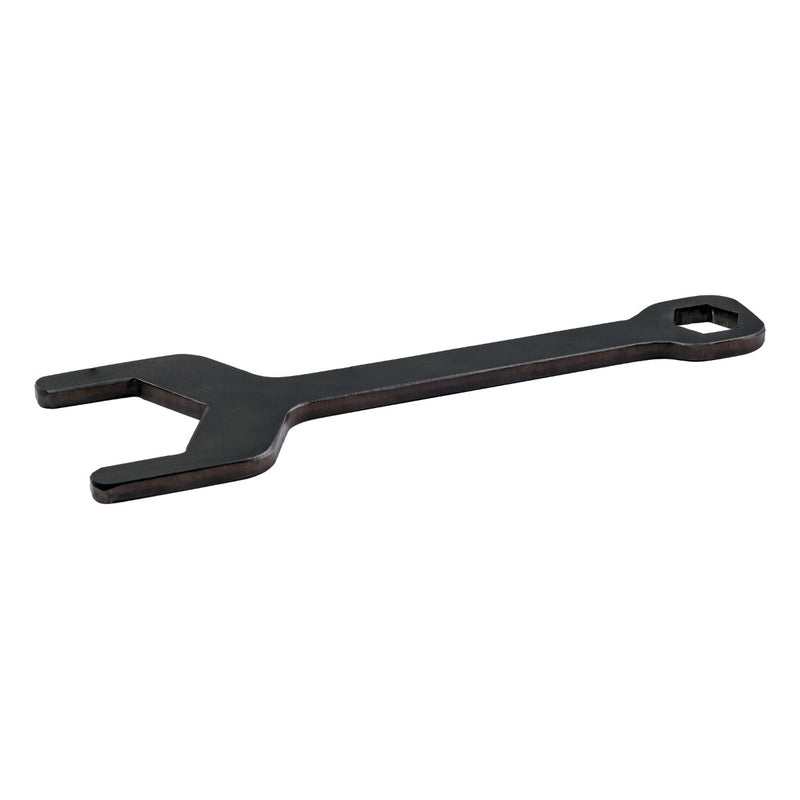

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Arbor Nut Wrench
Mittler Bros. 2200-M 3 Ton Manual Bench Press - Included Spring and Pins
Mittler Bros. 2200-M 3 Ton Manual Bench Press - Compatible Press Tooling (Not Included)

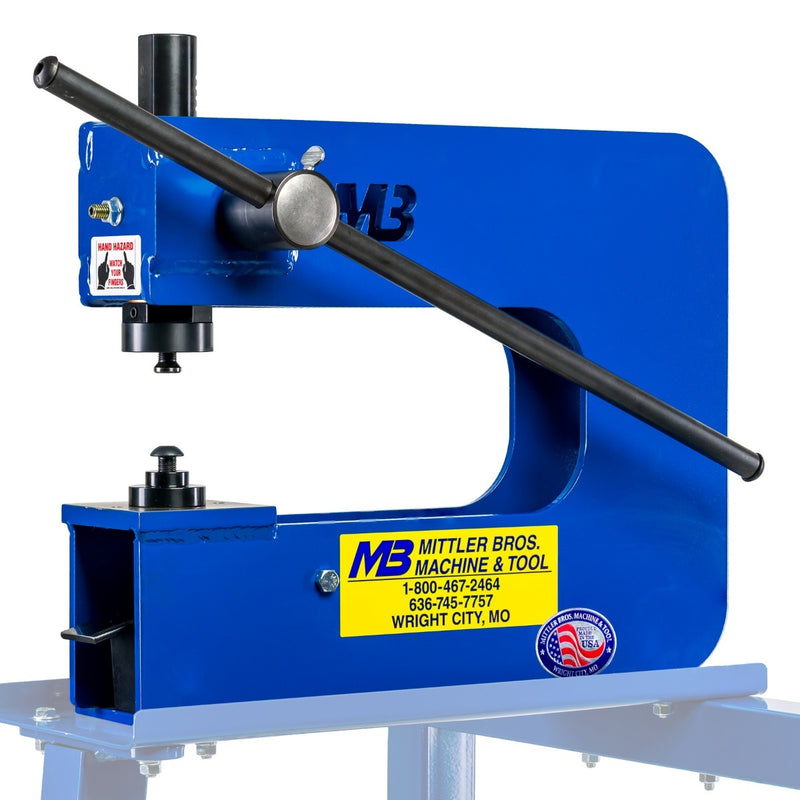

Mittler Bros. 2200-M 3 Ton Manual Bench Press

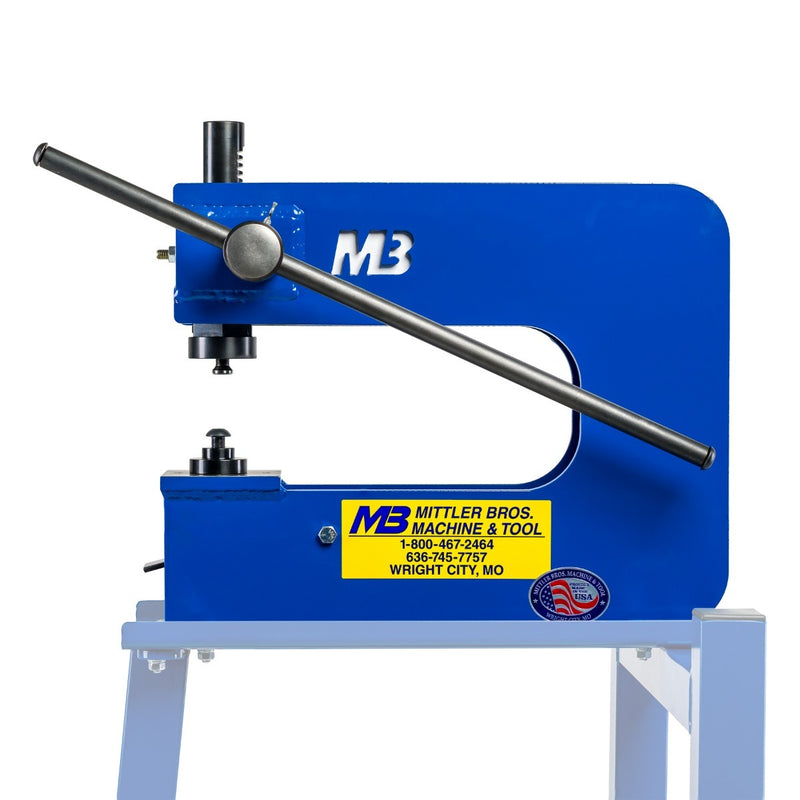

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Side View

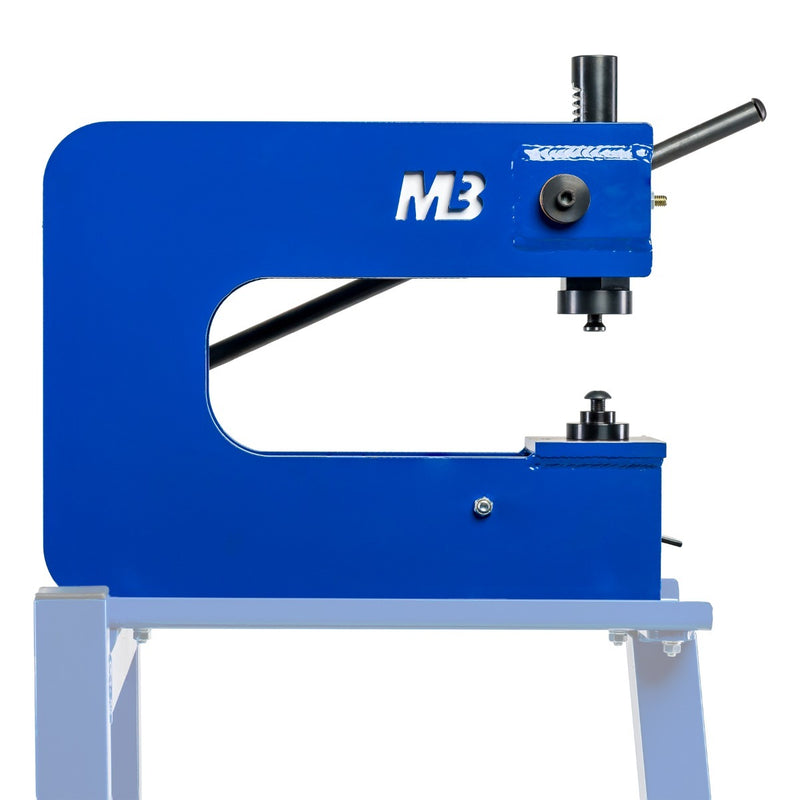

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Opposite Side View

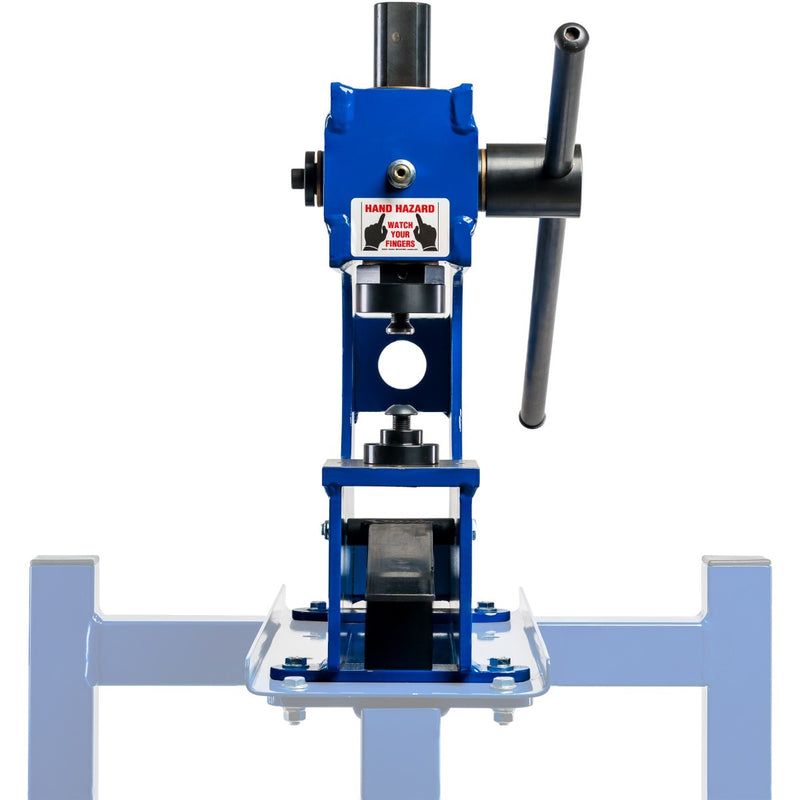

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Front View
Mittler Bros. 2200-M 3 Ton Manual Bench Press - Ram and Lower Adapter Close Up

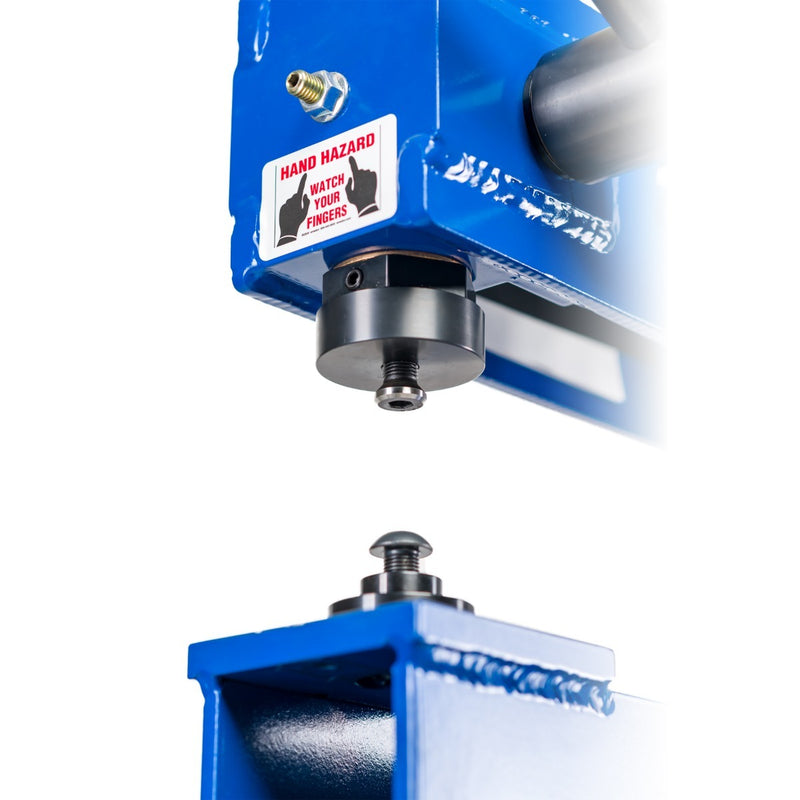

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Upper and Lower Adapters

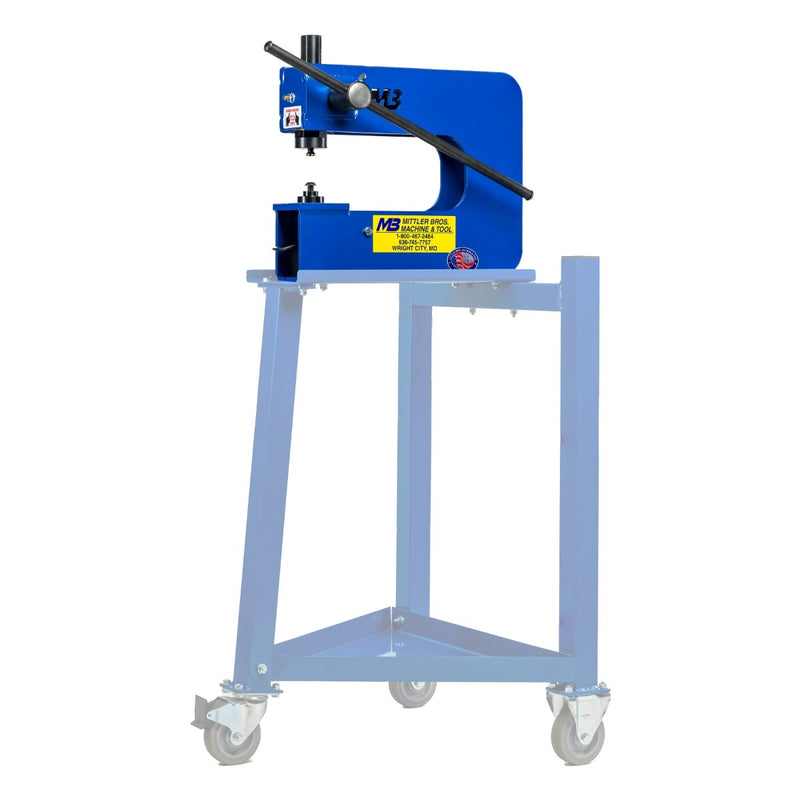

Mittler Bros. 2200-M 3 Ton Manual Bench Press - On Optional Floor Stand
Mittler Bros. 2200-M 3 Ton Manual Bench Press - Arbor Nut Wrench

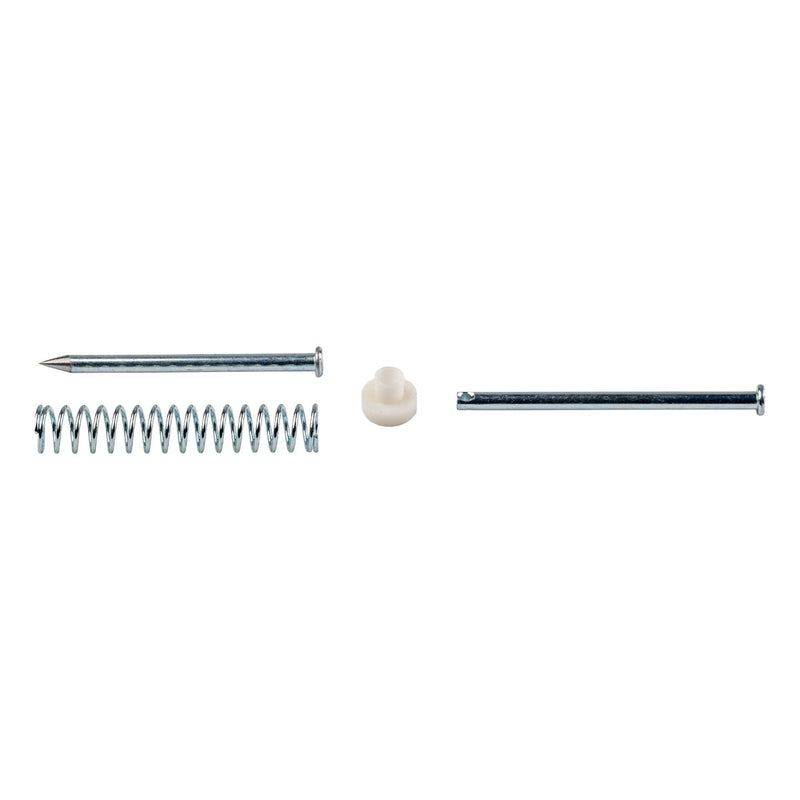

Mittler Bros. 2200-M 3 Ton Manual Bench Press - Included Spring and Pins
Mittler Bros. 2200-M 3 Ton Manual Bench Press - Compatible Press Tooling (Not Included)
Mittler Bros. 3 Ton Manual Bench Press Video - Manual Bench Press Demonstration
Mittler Bros. 3 Ton Manual Bench Press Video - Bench Press Demonstration
Mittler Bros. 3 Ton Manual Bench Press Video - Punch and Flare Tool
Mittler Bros. 3 Ton Manual Bench Press Video - Quick Change Punch and Flare Tooling

Mittler Bros. 3 Ton Manual Bench Press (2200-M)

SKU: 2200-M  by Mittler Bros.
Made in the USA
$1,150.00 - $1,150.00
$1,150.00
$1,150.00 - $1,150.00
$1,150.00
Availability:
Only 1 left!

Call for our Best Deal (855) 605-4599

Mittler Bros. 2200-M - 3 Ton Manual Bench Press

  • 3 ton capacity from a 24" handle, no air or hydraulics needed
  • 12" deep throat with a 5" tall opening and 3" maximum clearance between tooling
  • 3" punch and flare in 16 gauge mild steel is the maximum tooling capacity Mittler rates it for
  • 5/16" welded plate frame with bronze bushings on the ram
  • Tooling mounts straight in or rotated 90 degrees for side to side work
  • Works as a standard press or an arbor press
  • Includes quick index handles, spring loaded center, slug ejector assembly, upper and lower punch and flare adapters with bolts, and arbor nut wrench
  • Made in USA by Mittler Bros.
  • Ships at 68 lb in a 25" x 25" x 13" box
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2200-M 3 Ton Manual Bench Press with 12" Throat

The Mittler Bros. 2200-M is a 3 ton manual bench press built around a 12" deep throat. It is the press most fabricators buy to run punch and flare dies: drop the die in, pull the 24" handle, and the hole is punched and flared in one stroke.

Mittler rates it for a 3" punch and flare in 16 gauge mild steel. The 12" throat reaches the middle of a 24" wide panel, so lightening holes in seat panels, gussets and interior tins are within reach without flipping the work. The spring loaded center locates the die on a pilot hole, and the slug ejector clears the scrap between hits. Tooling mounts straight in or rotated 90 degrees. Mittler Bros. press tooling covers louver punches, corner radius punches, corner notching, a 90 degree bend kit and a shear assembly, all sold separately.

The frame is 5/16" welded plate with bronze bushings on the ram, and it bolts down to a bench or to Mittler's optional floor stand. It ships at 68 lb in a 25" x 25" x 13" box.

If your tooling stacks taller than 3", the 2200-TM high throat press gives 6" of clearance on the same 12" throat. For repeat work, the 5 ton hydraulic 2200-H uses the same tooling. See all bench presses.
