Mittler Bros. 3 Ton High Throat Manual Bench Press (2200-TM)

SKU: 2200-TM  by Mittler Bros.
Made in the USA
$1,295.00 - $1,295.00
$1,295.00
$1,295.00 - $1,295.00
$1,295.00
Availability:
Only 1 left!

Call for our Best Deal (855) 605-4599

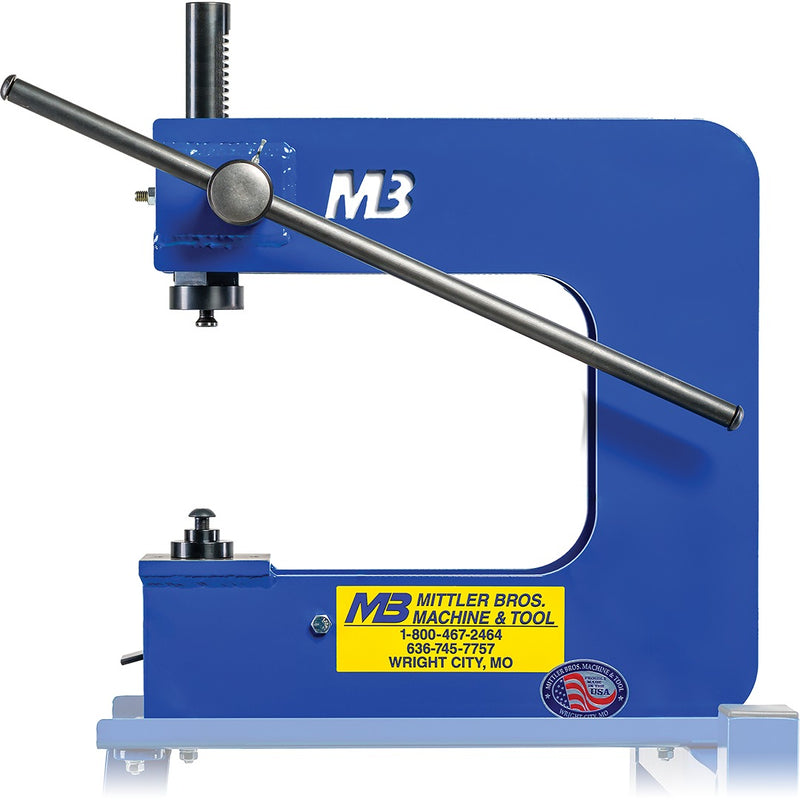

Mittler Bros. 2200-TM - High Throat 3 Ton Manual Bench Press

  • 3 ton capacity, manually operated
  • 6" maximum clearance between tooling, double the standard 2200-M
  • 12" deep throat with an 8" tall opening
  • 3" punch and flare in 16 gauge mild steel is the maximum tooling capacity Mittler rates it for
  • 5/16" welded plate frame with bronze bushings on the ram
  • Tooling mounts straight in or rotated 90 degrees for side to side work

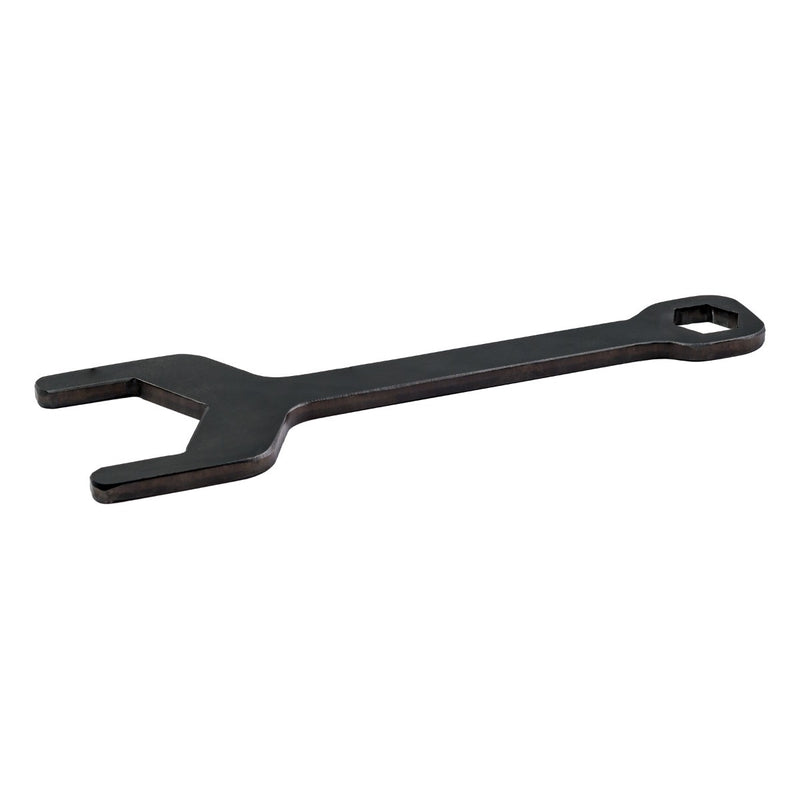

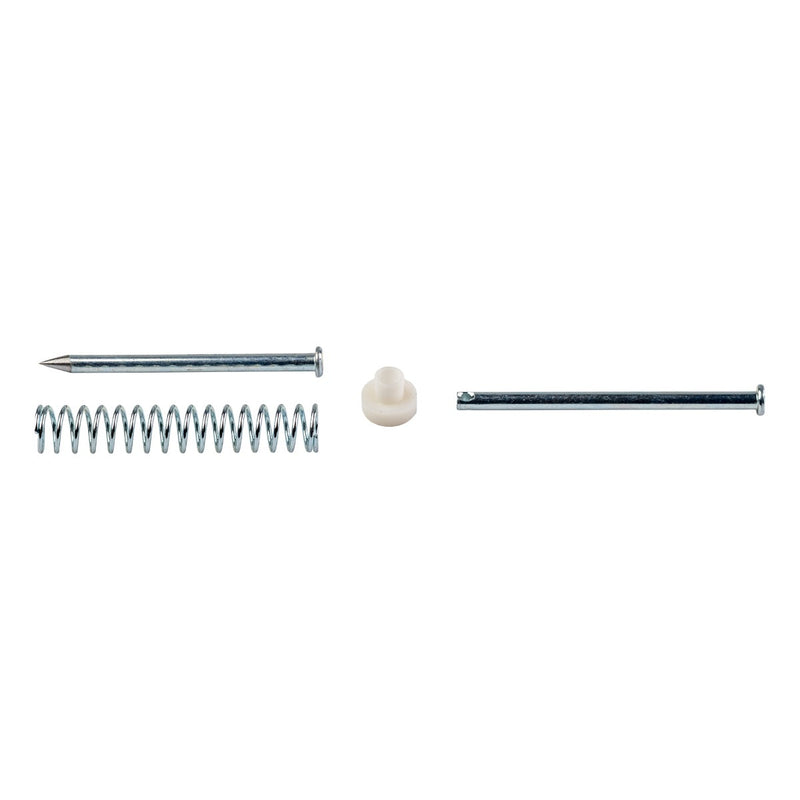

  • Includes quick index handles, spring loaded center, slug ejector assembly, upper and lower punch and flare adapters with bolts, and arbor nut wrench
  • Made in USA by Mittler Bros.
  • Ships at 78 lb in a 24" x 24" x 12" box
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2200-TM High Throat 3 Ton Manual Bench Press - 6" Tooling Clearance

The Mittler Bros. 2200-TM is the high throat version of Mittler's 3 ton manual bench press. The throat is still 12" deep, but the opening is 8" tall, which gives 6" of clearance between tooling where the standard press gives 3".

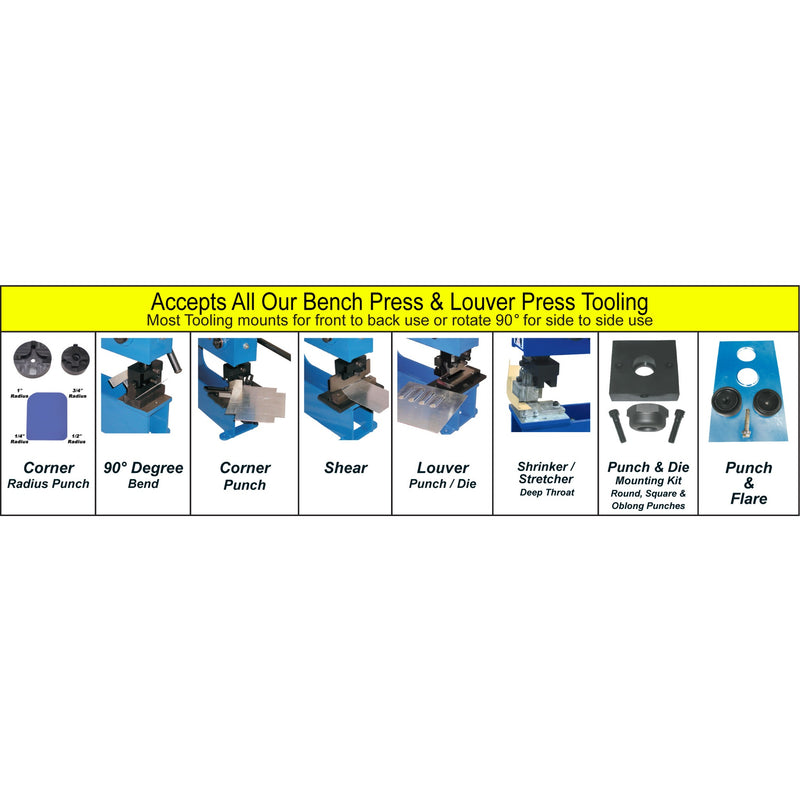

That extra height is for tall tooling stacks and for work that will not slide into a 3" gap: formed panels, flanged parts, and brackets that already have a bend in them. Capacity is unchanged. Mittler rates it for a 3" punch and flare in 16 gauge mild steel, and it takes the same punch and flare dies and press tooling as the rest of the 2200 series. Mittler Bros. press tooling covers louver punches, corner radius punches, corner notching, a 90 degree bend kit and a shear assembly, all sold separately.

The frame is 5/16" welded plate with bronze bushings on the ram. Tooling mounts straight in or rotated 90 degrees for side to side work. It ships at 78 lb in a 24" x 24" x 12" box.

If you only work flat sheet, the standard 2200-M does the same job for less. See all bench presses.
