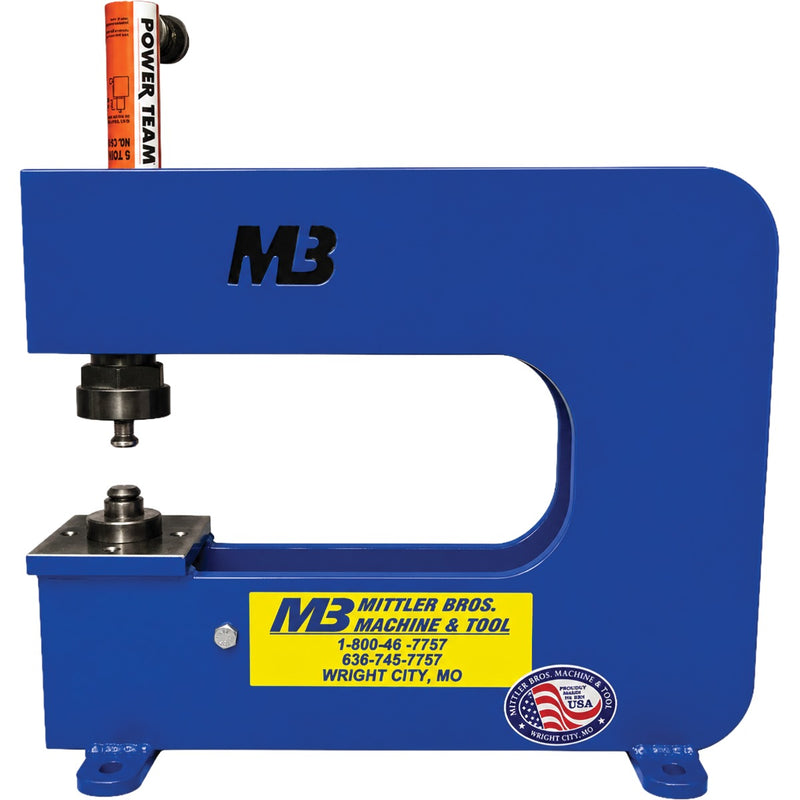

Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press

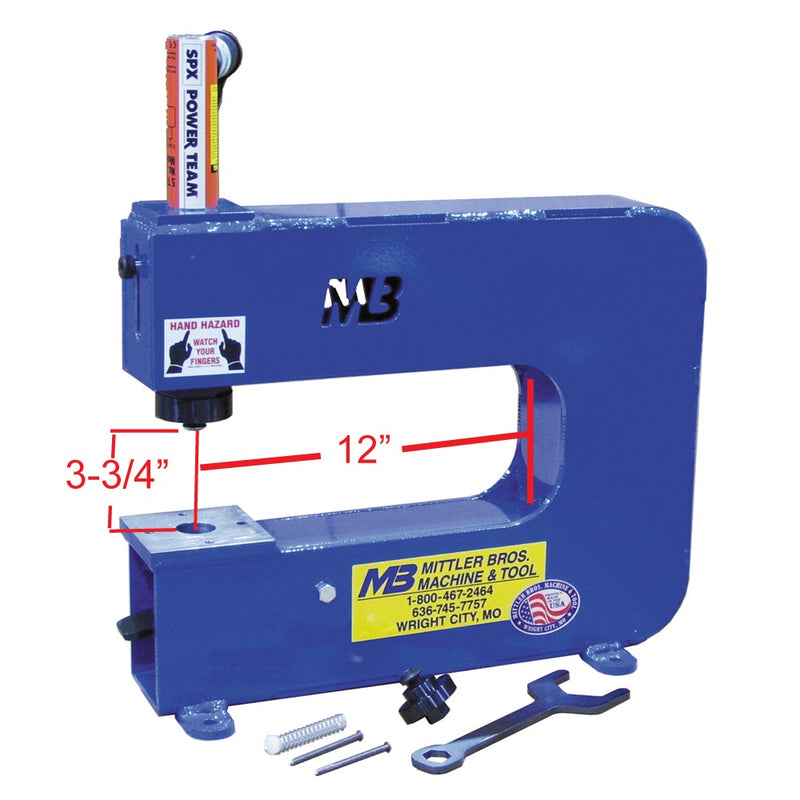

Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press - Throat Dimensions and Included Tooling

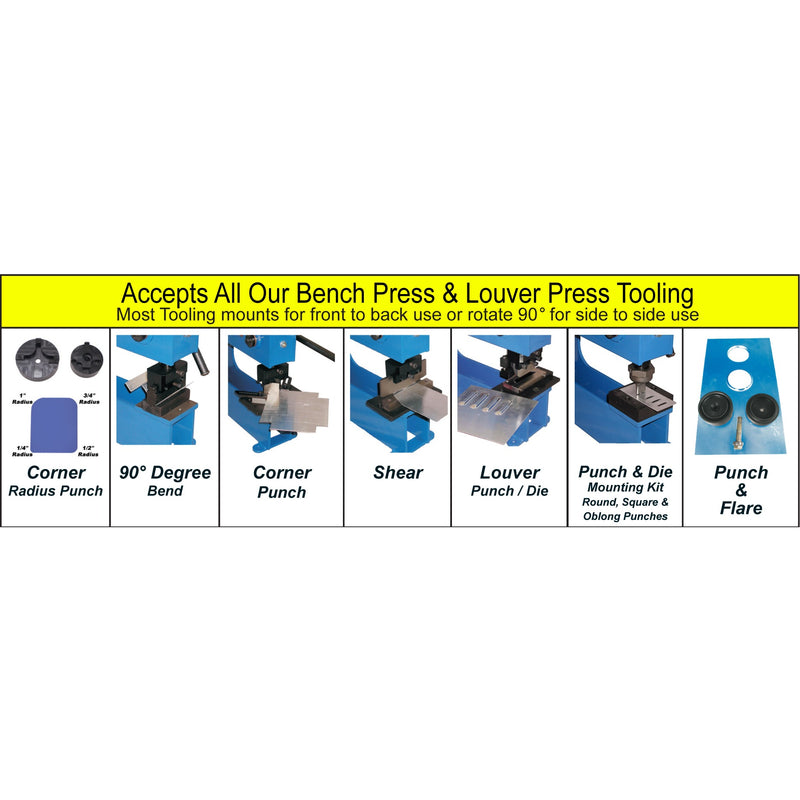

Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press - Compatible Press Tooling (Not Included)
Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press
Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press - Throat Dimensions and Included Tooling
Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press - Compatible Press Tooling (Not Included)
Mittler Bros. 5 Ton Hydraulic Bench Press Video - Bench Press Demonstration
Mittler Bros. 5 Ton Hydraulic Bench Press Video - Quick Change Punch and Flare Tooling

Mittler Bros. 5 Ton Hydraulic Bench Press (2200-H)

SKU: 2200-H  by Mittler Bros.
Made in the USA
$1,375.00 - $1,375.00
$1,375.00
$1,375.00 - $1,375.00
$1,375.00
Availability:
Only 1 left!

Call for our Best Deal (855) 605-4599

Mittler Bros. 2200-H - 5 Ton Hydraulic Bench Press

  • 5 ton capacity from a hydraulic cylinder with a 3-1/4" stroke
  • 12" deep throat with 3" maximum clearance between tooling
  • 3" punch and flare in 16 gauge mild steel is the maximum tooling capacity Mittler rates it for
  • 3/8" plate frame with bronze bushings on the ram
  • Hydraulic pump sold separately - air or electric
  • Tooling mounts straight in or rotated 90 degrees for side to side work
  • Includes spring loaded center, slug ejector assembly, upper and lower punch and flare adapters with bolts, and arbor nut wrench
  • Made in USA by Mittler Bros.
  • Ships at 76 lb in a 25" x 25" x 13" box
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2200-H 5 Ton Hydraulic Bench Press with 12" Throat

The Mittler Bros. 2200-H is the hydraulic version of Mittler's 12" throat bench press. A 5 ton cylinder replaces the hand lever, so the press does the work and both hands stay on the panel.

It runs the same punch and flare dies and press tooling as the manual 2200 series, and Mittler rates it for a 3" punch and flare in 16 gauge mild steel. Hydraulic power earns its keep on repeat work: a row of lightening holes, a run of louvers, or a batch of brackets where pulling a lever fifty times gets old. Mittler Bros. press tooling covers louver punches, corner radius punches, corner notching, a 90 degree bend kit and a shear assembly, all sold separately.

The press needs a pump, which is sold separately. Mittler's air hydraulic pump runs off shop air, and the electric hydraulic pump suits shops without the compressor capacity. The frame is 3/8" plate with bronze bushings on the ram, and it ships at 76 lb in a 25" x 25" x 13" box.

For occasional use, the manual 2200-M needs no pump. For deep panels and 14 gauge, step up to the 10 ton 2210-HD. See all bench presses.
