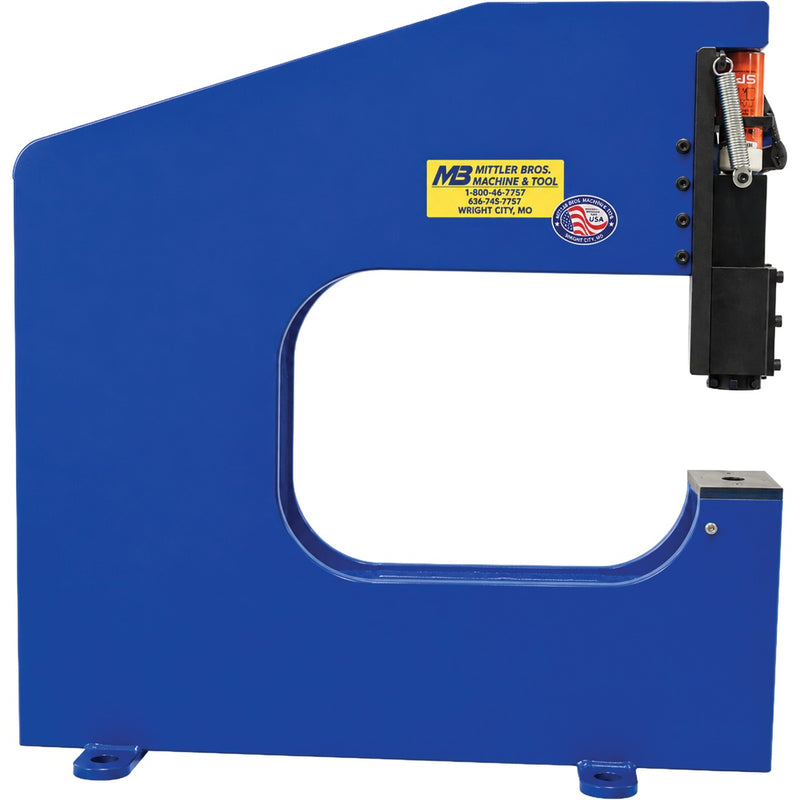

Mittler Bros. 2210-HD 10 Ton Hydraulic Bench Press

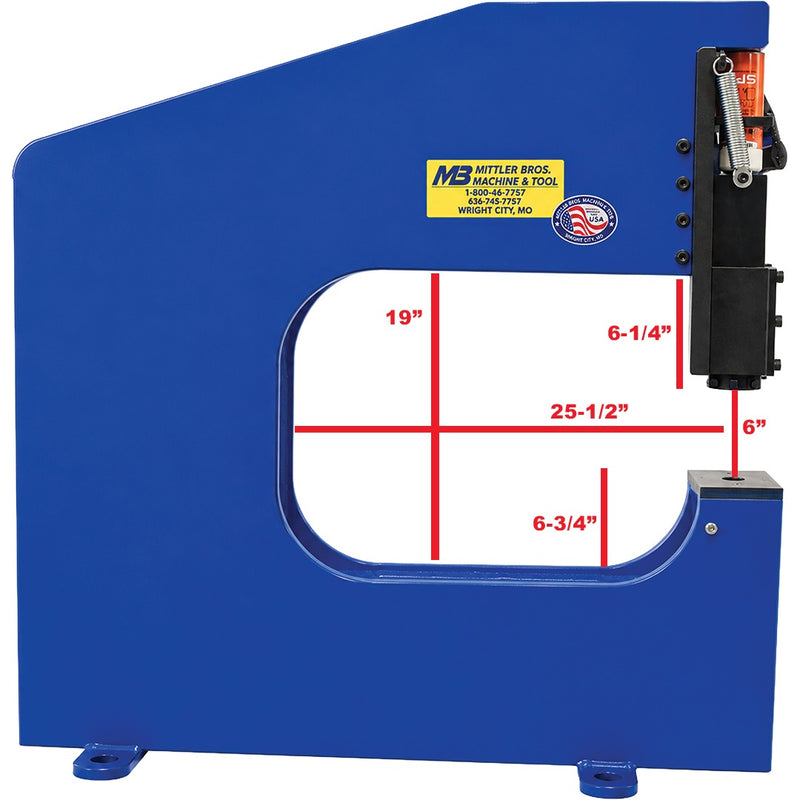

Mittler Bros. 2210-HD 10 Ton Hydraulic Bench Press - Throat Dimensions

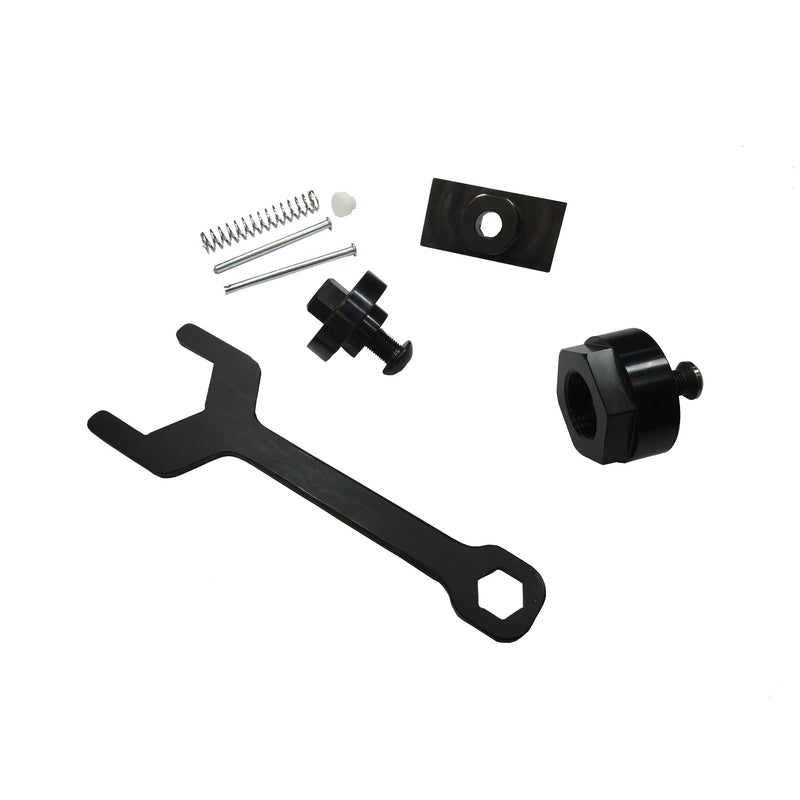

Mittler Bros. 2210-HD 10 Ton Hydraulic Bench Press - Included Tooling

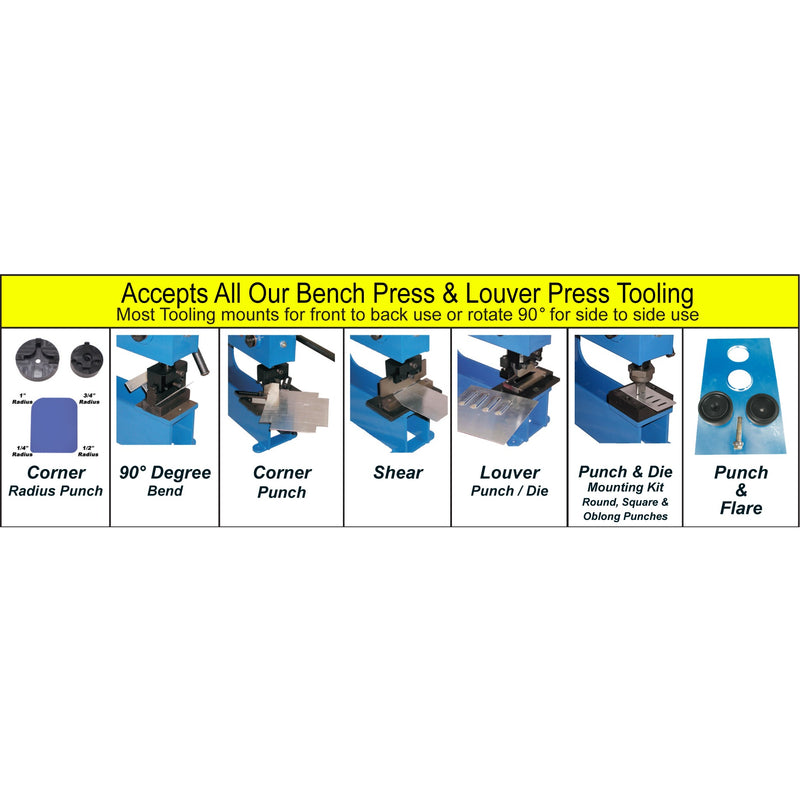

Mittler Bros. 2210-HD 10 Ton Hydraulic Bench Press - Compatible Press Tooling (Not Included)

Mittler Bros. 10 Ton Hydraulic Bench Press - 25-1/2" Throat (2210-HD)

Name: Mittler Bros. 10 Ton Hydraulic Bench Press - 25-1/2" Throat (2210-HD)
Brand: Mittler Bros.
SKU: 2210-HD
Price: 4500.0 USD
Availability: InStock

SKU: 2210-HD by Mittler Bros.

$4,500.00 - $4,500.00

$4,500.00

$4,500.00 - $4,500.00

$4,500.00

Call for our Best Deal (855) 605-4599

Mittler Bros. 2210-HD - 10 Ton Hydraulic Press, 25-1/2" Throat

10 ton capacity from a hydraulic cylinder with a 4" stroke
25-1/2" deep throat reaches the center of a 51" wide panel
6" throat height with 3" maximum clearance between tooling
3" punch and flare in 14 gauge mild steel is the maximum tooling capacity Mittler rates it for
Welded plate and box tube frame
Hydraulic pump sold separately - use a 10 ft hose minimum on the optional stand
Tooling mounts straight in or rotated 90 degrees for side to side work
Includes tool mount adapter, spring loaded center, slug ejector assembly, upper and lower punch and flare adapters with bolts, and arbor nut wrench
Made in USA by Mittler Bros.
Ships truck freight at 775 lb

Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2210-HD 10 Ton Hydraulic Bench Press with 25-1/2" Deep Throat

The Mittler Bros. 2210-HD is the big press in Mittler's bench press range: 10 tons of hydraulic force on a 25-1/2" deep throat. It runs the same punch and flare dies and press tooling as the 12" presses, a long way further into the panel.

A 25-1/2" throat reaches the center of a 51" wide sheet, which covers door skins, floor panels, firewalls and full bulkheads. Mittler rates it for a 3" punch and flare in 14 gauge mild steel, a gauge heavier than the 3 and 5 ton presses. The throat is 6" tall with 3" maximum clearance between tooling, and the stroke is 4". Mittler Bros. press tooling covers louver punches, corner radius punches, corner notching, a 90 degree bend kit and a shear assembly, all sold separately.

The frame is welded plate and box tube. A hydraulic pump is needed and is sold separately: Mittler's air hydraulic pump runs off shop air, or use the electric hydraulic pump. Mittler calls for a 10 ft hose minimum if the press sits on its optional stand.

This one ships truck freight at 775 lb, so plan on a forklift or a liftgate delivery. If a 12" throat covers your work, the 5 ton 2200-H ships by parcel. See all bench presses.
