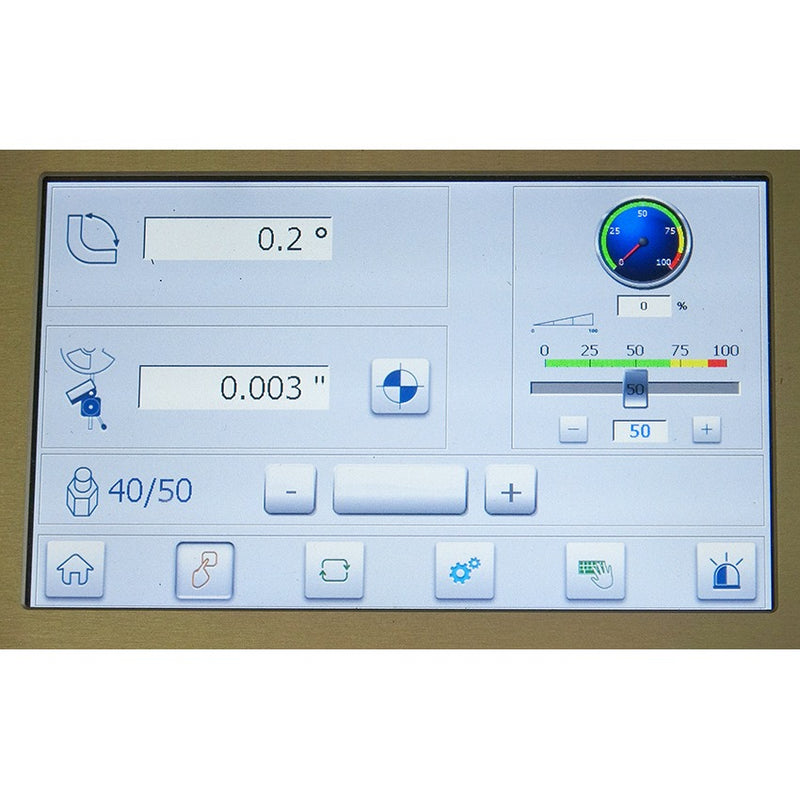

Ercolina TB130 Top Bender - Touch Screen Manual Mode

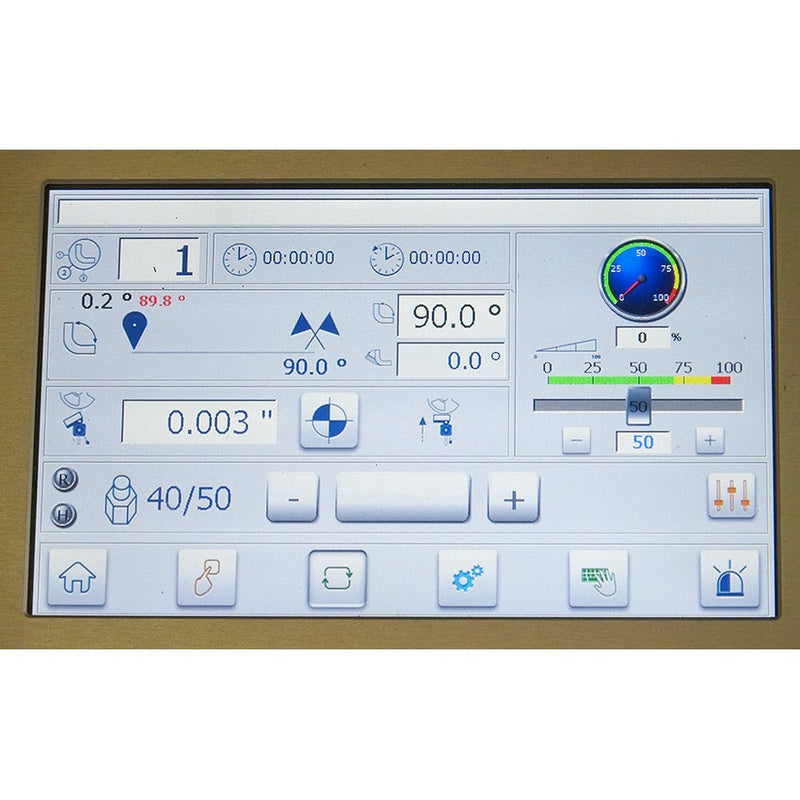

Ercolina TB130 Top Bender - Touch Screen Bend Program

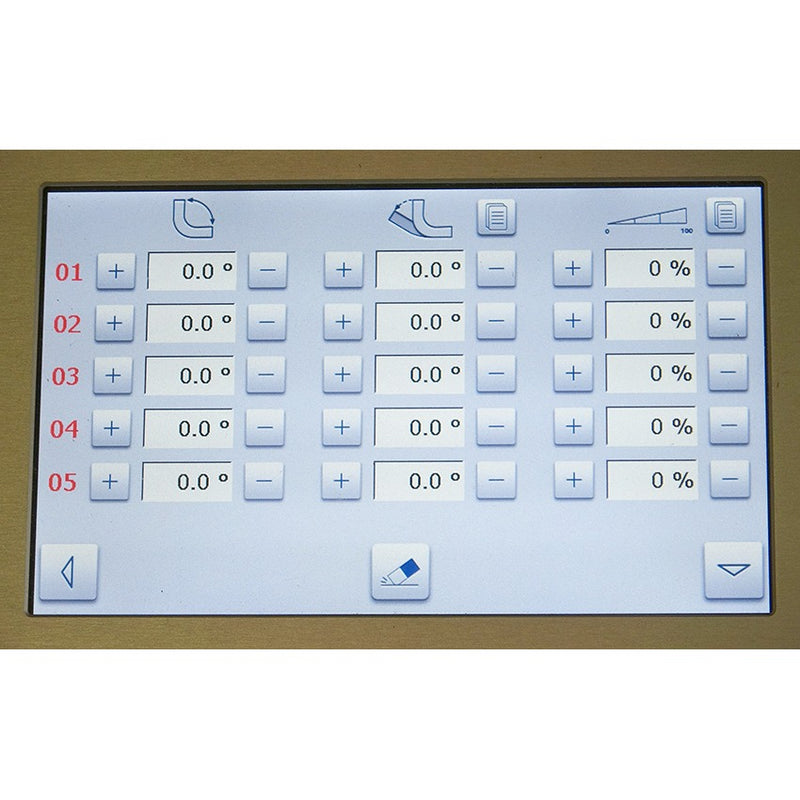

Ercolina TB130 Top Bender - Touch Screen Multi-Bend Program

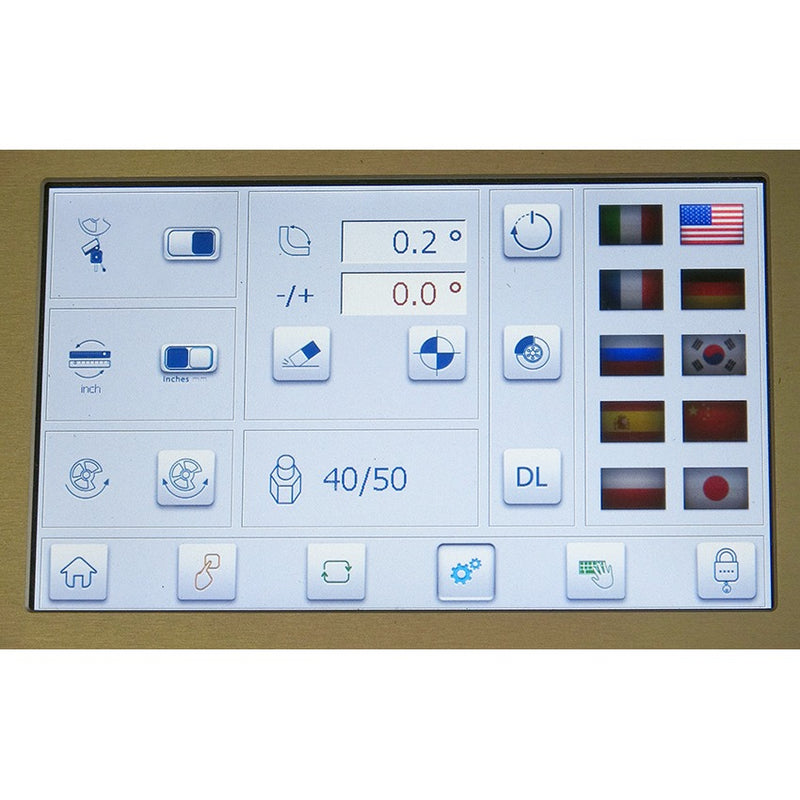

Ercolina TB130 Top Bender - Touch Screen Settings

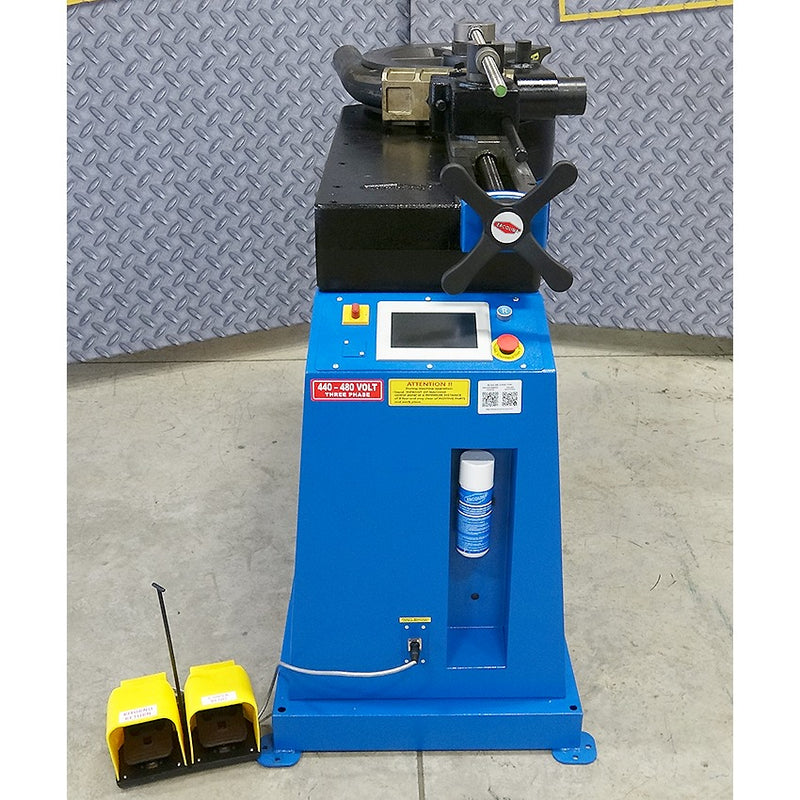

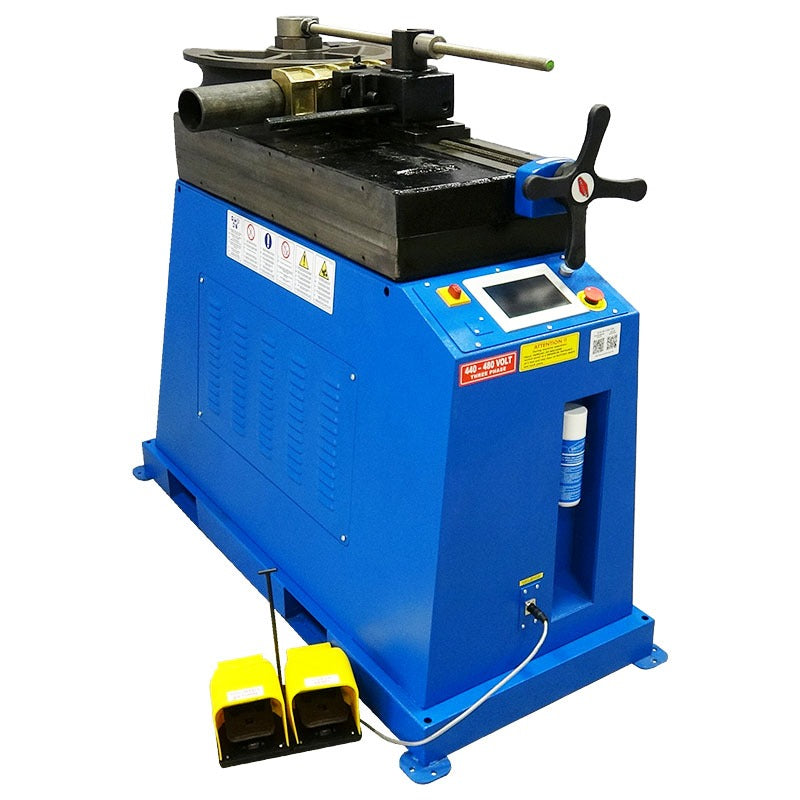

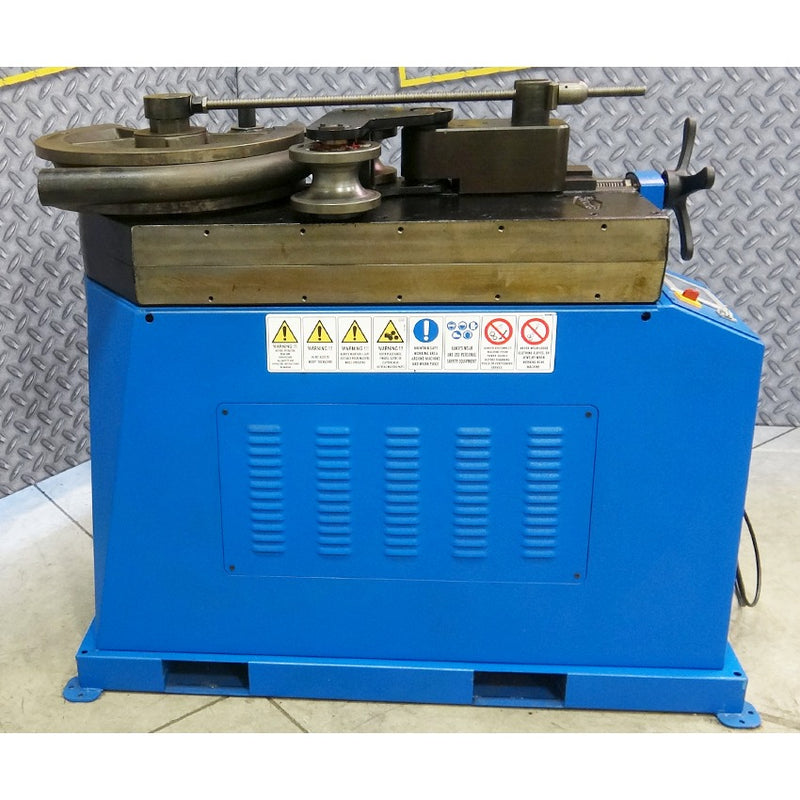

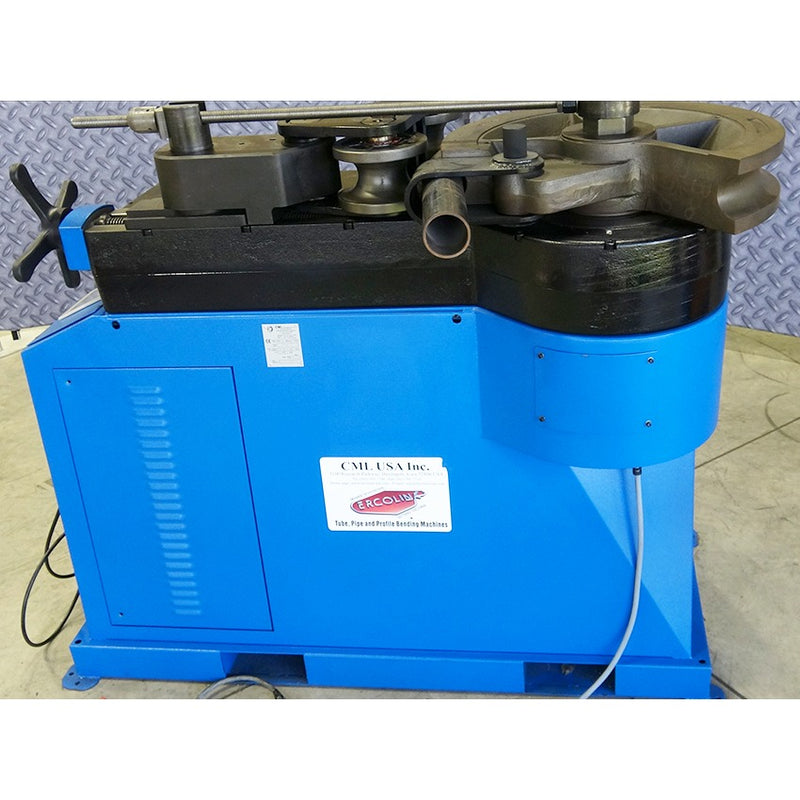

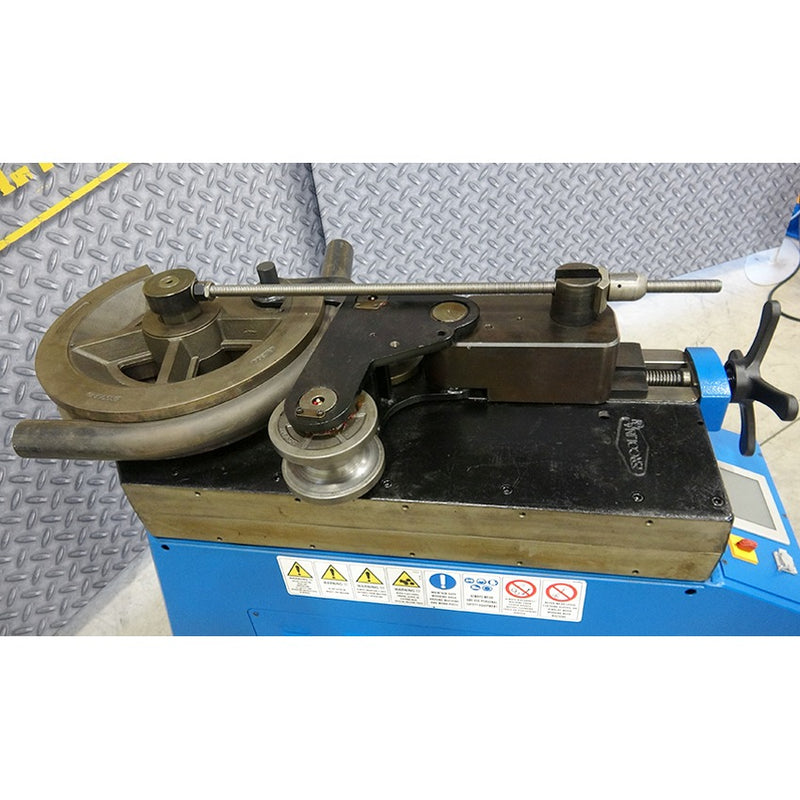

Ercolina TB130 Top Bender

Name: Ercolina TB130 Top Bender
Brand: Ercolina
SKU: TB130
Price: 67900.0 USD
Availability: InStock

SKU: TB130 by Ercolina

$67,900.00 - $67,900.00

$67,900.00

$67,900.00 - $67,900.00

$67,900.00

Call for our Best Deal (855) 605-4599

Quantity

Ercolina TB130 Top Bender

5" round tube, 4" x .187" wall square tube - capacities rated on A53 Grade A material.
4" Schedule 40 pipe - heavy wall and high-tensile material reduce capacity.
2 x OD to 27-1/2" centerline radius - bends to 180 degrees with per-bend springback compensation.
Touch screen, 12 bends per program - unlimited program storage via USB, inch or metric.
Electromechanical drive, no hydraulics - variable speed to .75 RPM, heavy-duty steel gear case.
Quick-change 40, 50, 80 and 110mm drive tooling - swing-away counterbend die vise with electronic position monitoring.
220V or 480V 3-phase, 1,330 lb - 34" x 34" x 47"; 1-year limited warranty.

Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Ercolina TB130 Top Bender Spec Sheet

Download Ercolina Top Bender Single Bend Programming Guide

Download Ercolina Top Bender Multiple Bend Programming Guide

Ercolina TB130 Top Bender: 5" Tube and 4" Schedule 40 Pipe

The Ercolina TB130 is the largest of Ercolina's 220V-capable Top Benders: an electromechanical rotary draw bender for round tube up to 5", 4" Schedule 40 pipe and 4" x .187" wall square tube. Centerline radius runs from 2 x OD up to 27-1/2", and it bends to 180 degrees with springback compensation for each bend. There are no hydraulic components.

The long maximum radius is what sets it apart from the TB100: sweeping bends in 3" and 4" pipe for handrail, process piping and architectural work fit on one machine, alongside tight 2 x OD bends in smaller tube.

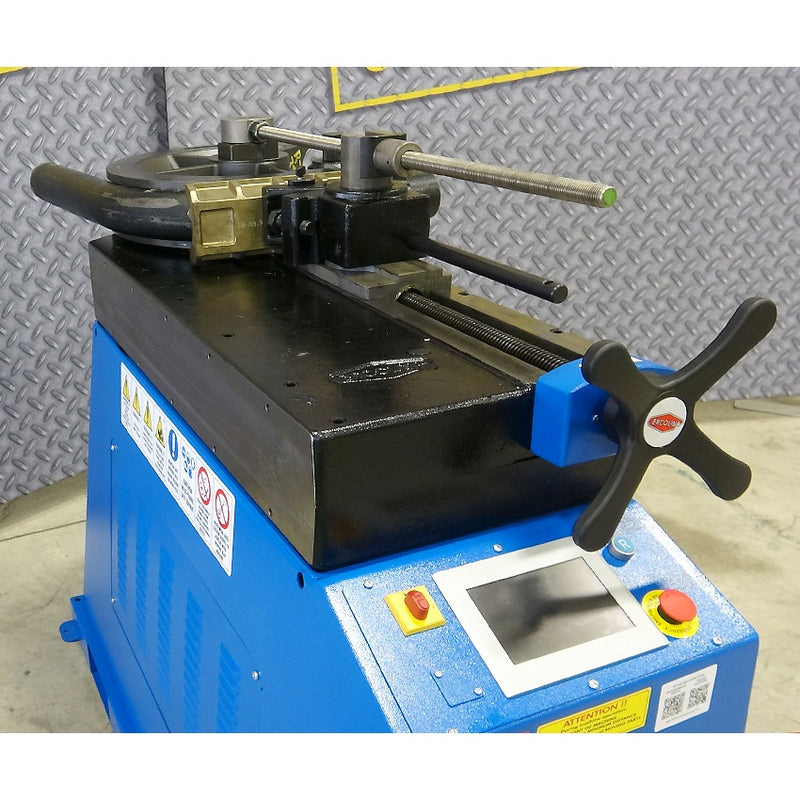

Bends are programmed on the touch screen in inch or metric, with up to 12 bends per program and unlimited program storage via USB. The display shows bend angle, the counterbend die position is monitored electronically for repeatable results, and a foot pedal runs the bend and return. The swing-away counterbending die vise makes loading heavy material easier, and the gear case is heavy-duty steel.

Tooling is quick-change on 40mm, 50mm, 80mm and 110mm drive diameters. Ercolina offers a 5-piece pipe kit (PIPEKIT4, 1-1/4" to 3" pipe) and small and large radius tube kits (TUBEKIT1SR and TUBEKIT1, 3/4" to 2" tube), and individual center formers and counterbend dies are in Ercolina tube and pipe dies.

The TB130 is 34" x 34" x 47", weighs 1,330 lb and runs on 220V or 480V 3-phase; choose the voltage when you order. It ships LTL freight with Ercolina's 1-year limited warranty. Capacities are rated on A53 Grade A pipe; heavy wall and high-tensile material reduce capacity. See all Ercolina tube benders or the full range of tube and pipe benders at Shape The Metal.
