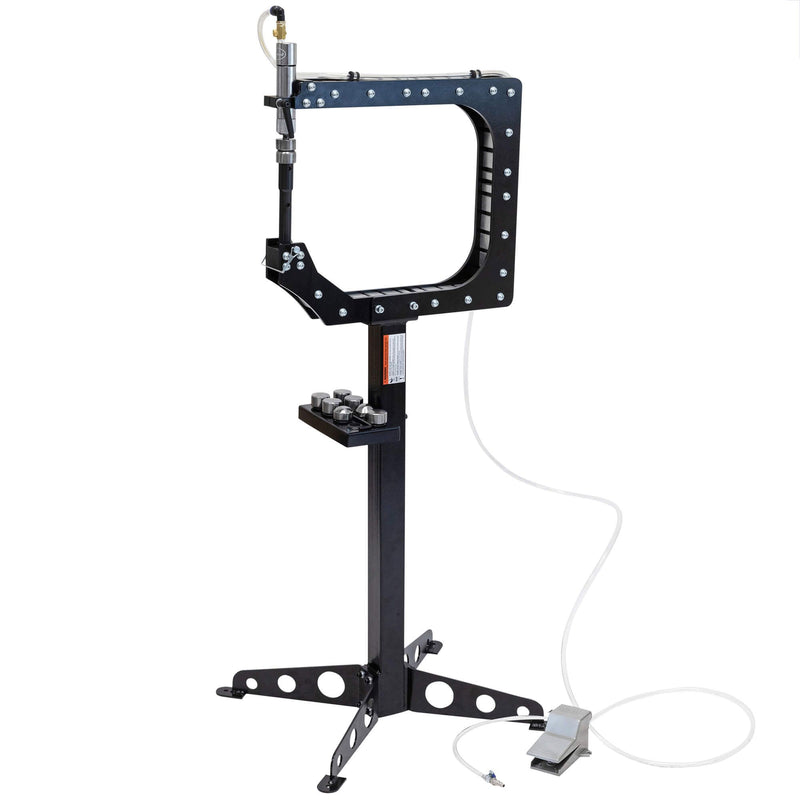

Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Angled View 2
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Side
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Frame and Air Hammer
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Hammer and Anvil Close Up

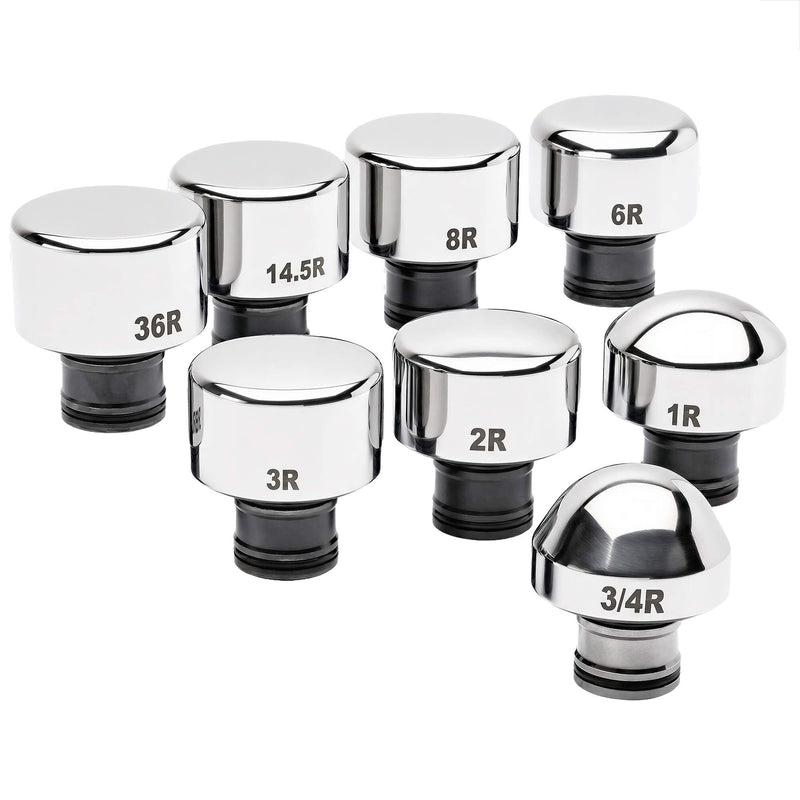

Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Radius Anvils
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Frame Close Up

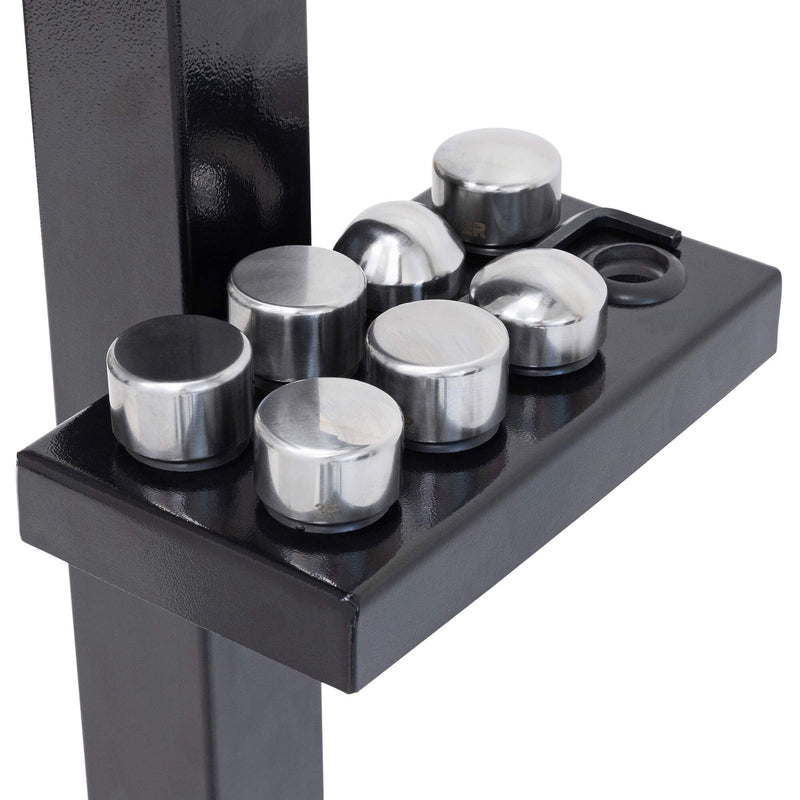

Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Anvil Storage Tray
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Foot Pedal
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Foot Pedal Air Fittings
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Radius Anvils in Row
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 2
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 3
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 4

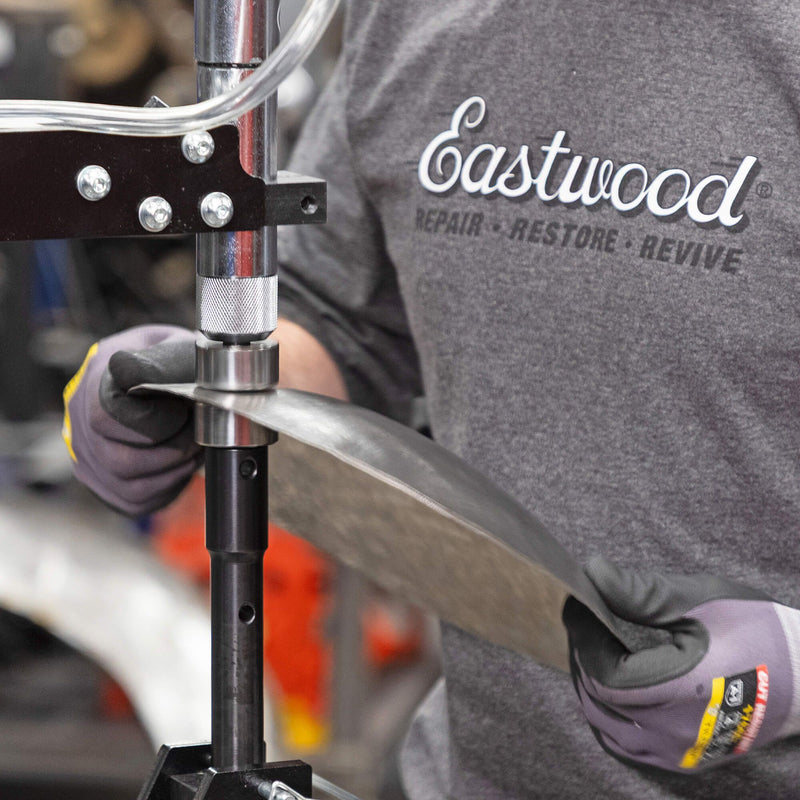

Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 5
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Planishing a Panel Close Up
Eastwood 74163 18 Inch Pneumatic Planishing Hammer
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Features
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 1
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Size Reference
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Angled View 1
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Angled View 2
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Side
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Frame and Air Hammer
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Hammer and Anvil Close Up
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Radius Anvils
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Frame Close Up
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Anvil Storage Tray
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Foot Pedal
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Foot Pedal Air Fittings
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Radius Anvils in Row
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 2
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 3
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 4
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - In Use 5
Eastwood 74163 18 Inch Pneumatic Planishing Hammer - Planishing a Panel Close Up

Eastwood 18 Inch Pneumatic Planishing Hammer (74163)

SKU: 74163  by Eastwood
$399.99 - $399.99
$399.99
$399.99 - $399.99
$399.99

Call for our Best Deal (855) 605-4599

Eastwood 18 Inch Pneumatic Planishing Hammer

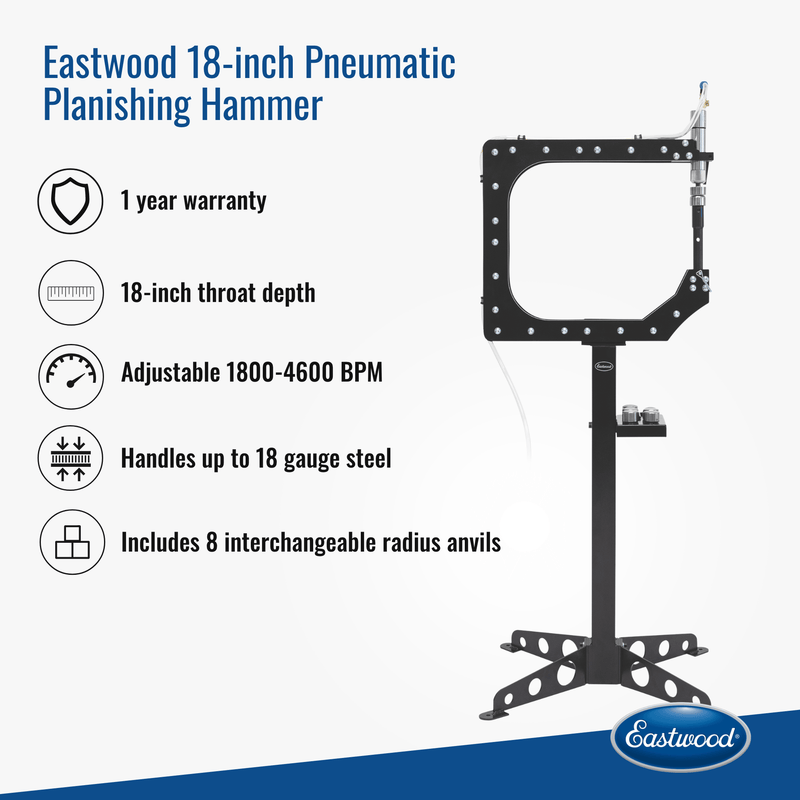

  • 18" throat depth - reaches well into body panels and tanks.
  • 18-gauge mild steel, 16-gauge aluminum, 20-gauge stainless - material capacity.
  • 1,800 to 4,600 blows per minute - adjustable hammer speed to suit the material.

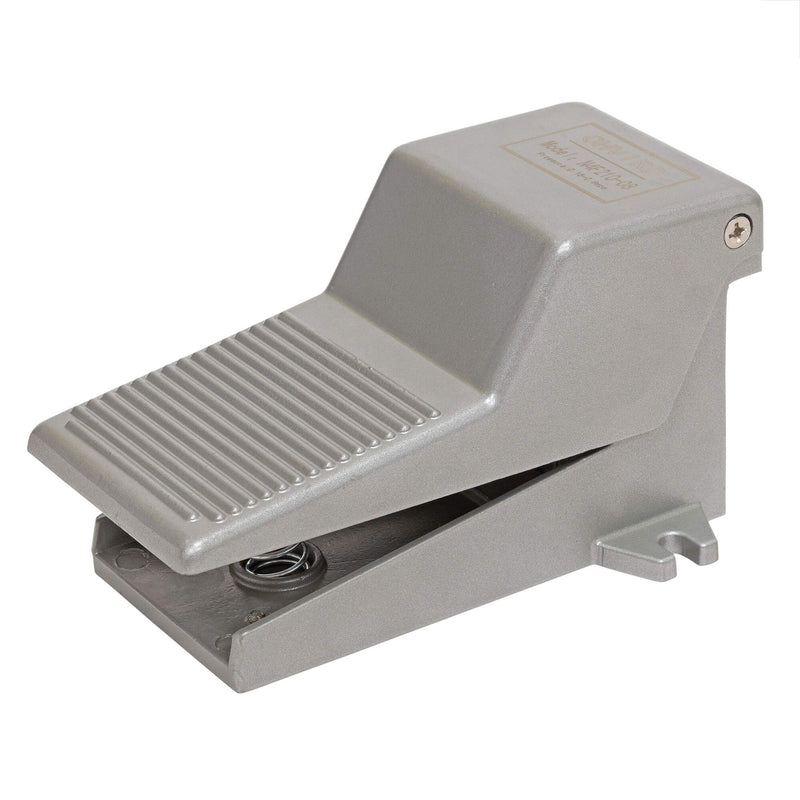

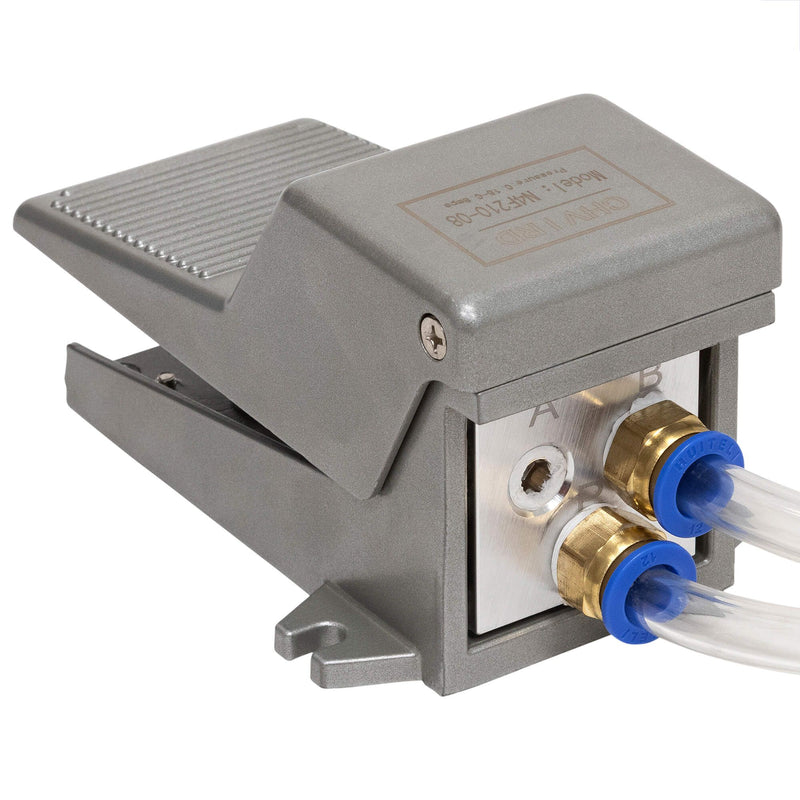

  • Foot-pedal control - both hands stay on the panel.

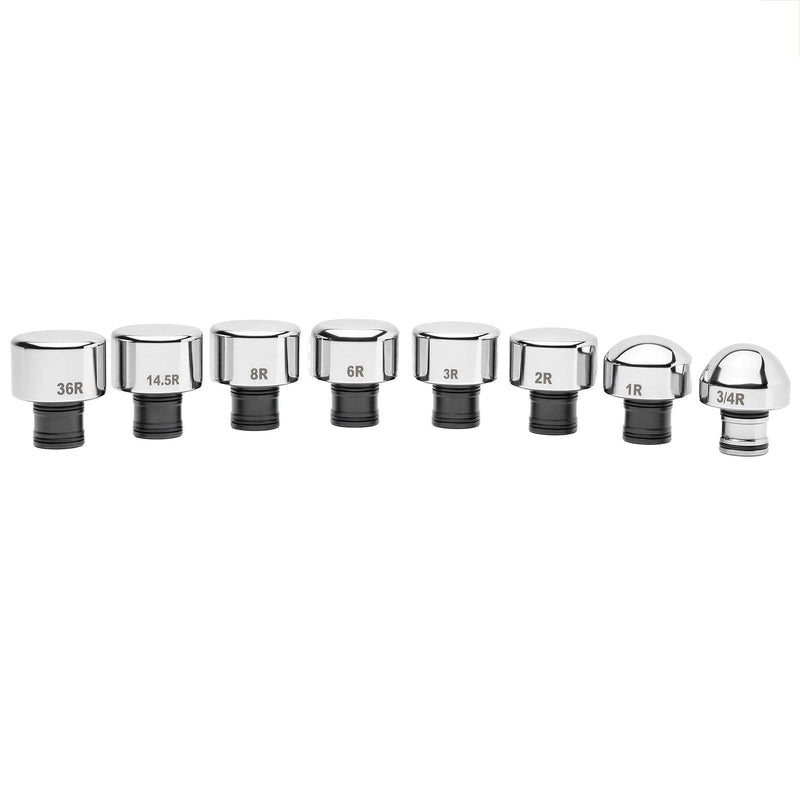

  • 8 radius anvils, 3/4" to 36" - 3/4", 1", 2", 3", 6", 8", 14.5" and 36" radius, 40mm diameter, O-ring retained for quick changes.
  • 80 to 120 psi air supply, 4 SCFM - Eastwood recommends a compressor that sustains 4 CFM at 90 psi.
  • Stand with anvil storage tray included - 22" x 22" x 58", 47.5" working height, 64.5 lb assembled.
  • 1-year Eastwood warranty
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Eastwood 74163 18 Inch Pneumatic Planishing Hammer Manual

Eastwood 18 Inch Pneumatic Planishing Hammer (74163)

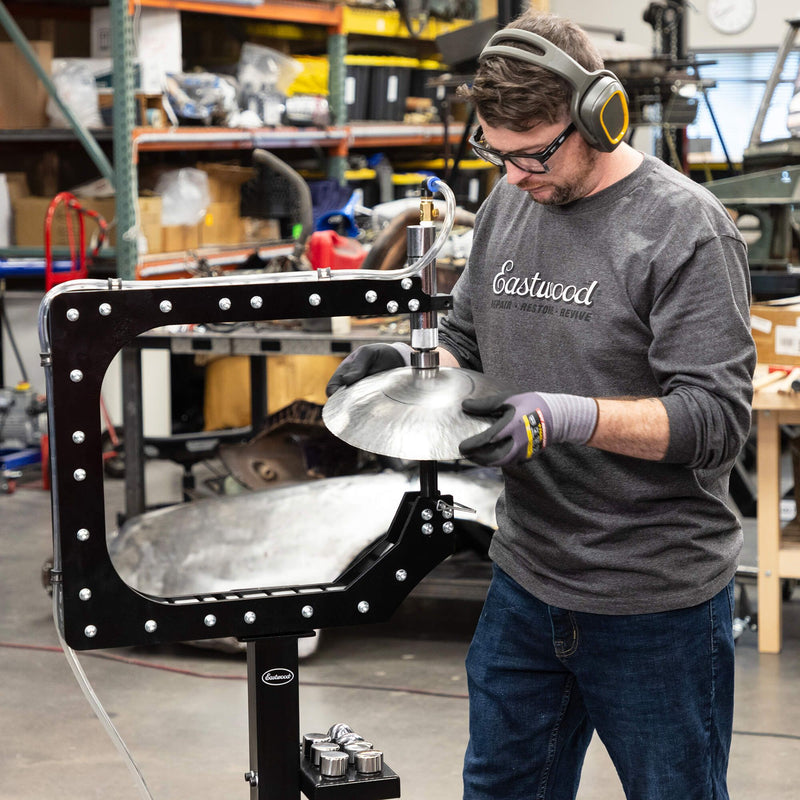

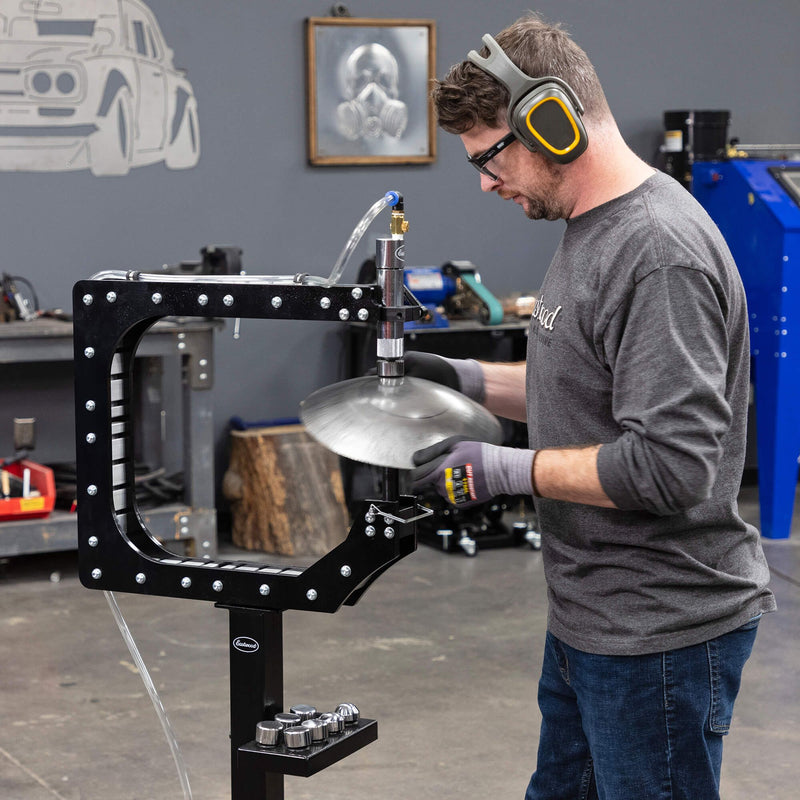

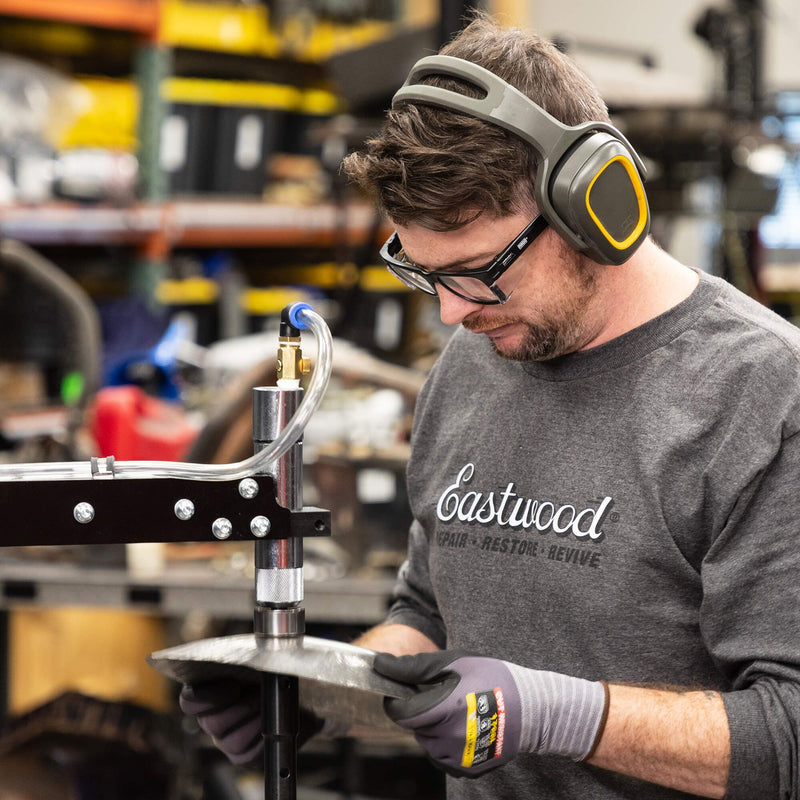

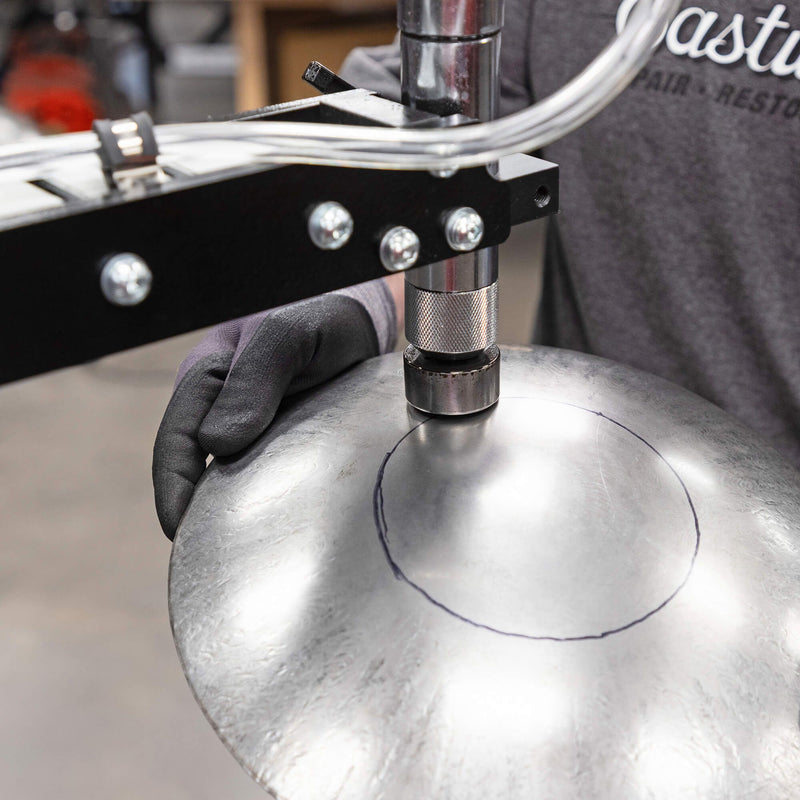

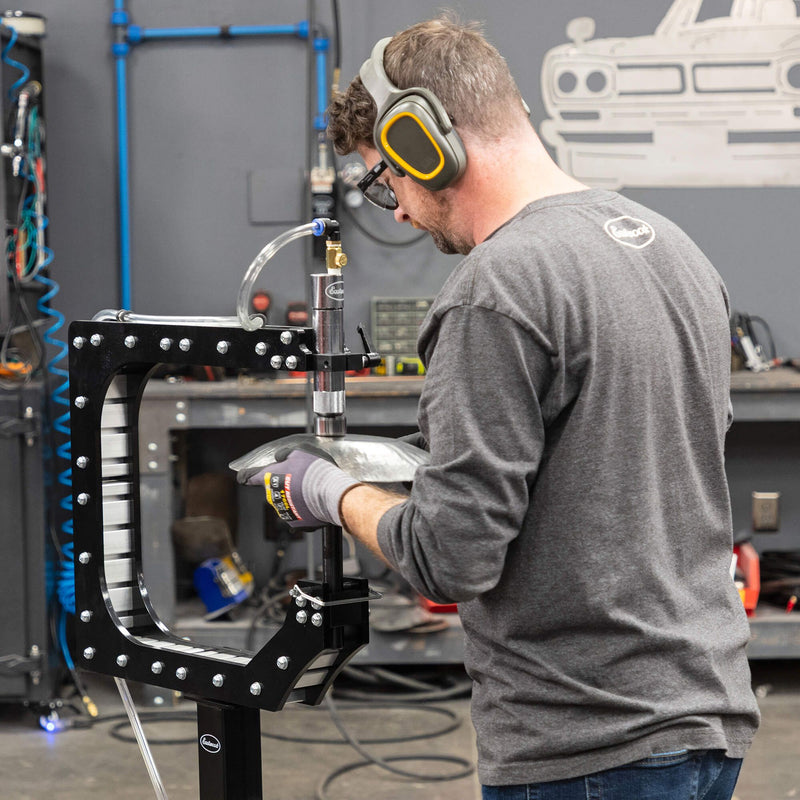

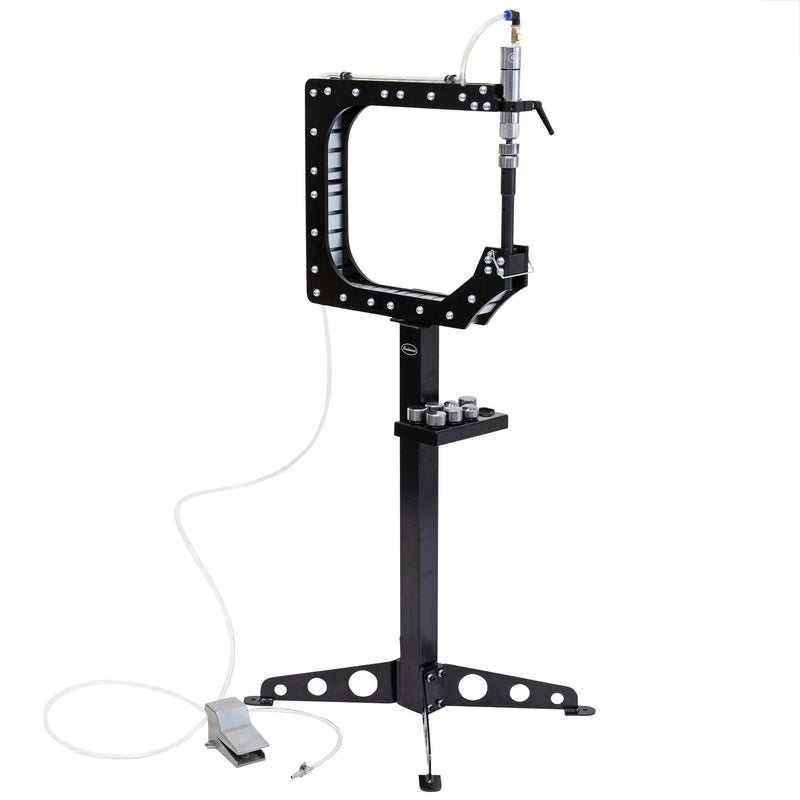

A stand-mounted pneumatic planishing hammer with an 18-inch throat, foot-pedal control and eight radius anvils. It smooths weld seams, takes the lumps out of shaped panels and puts a consistent crown in sheet metal with far less effort than hand planishing.

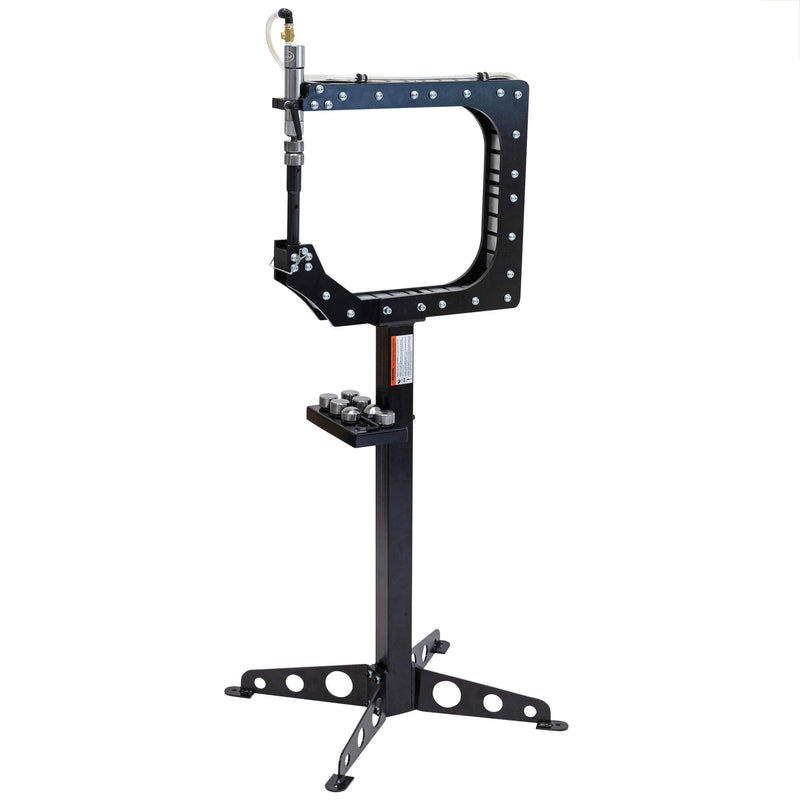

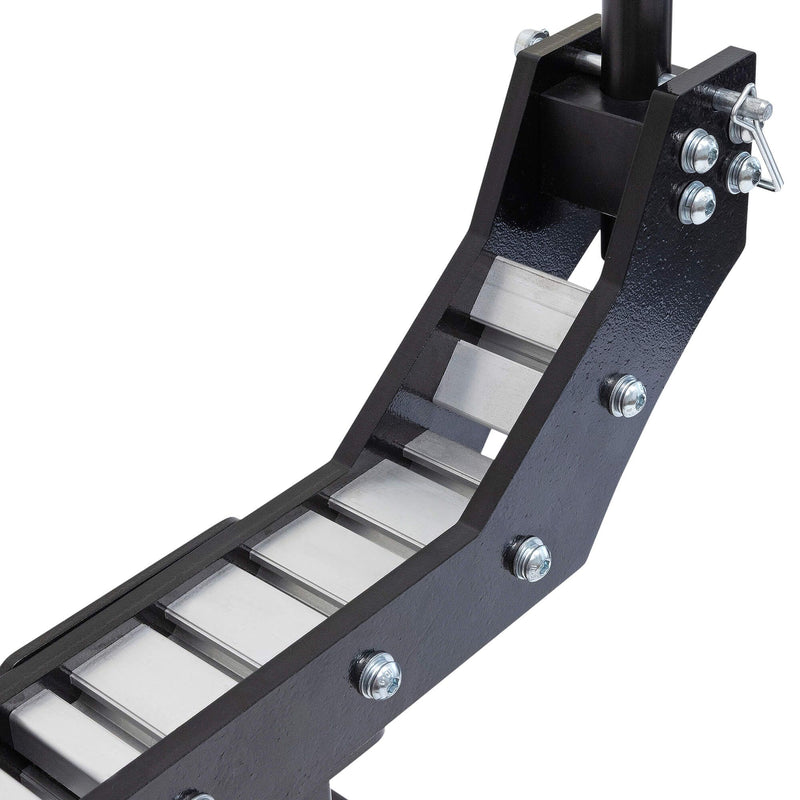

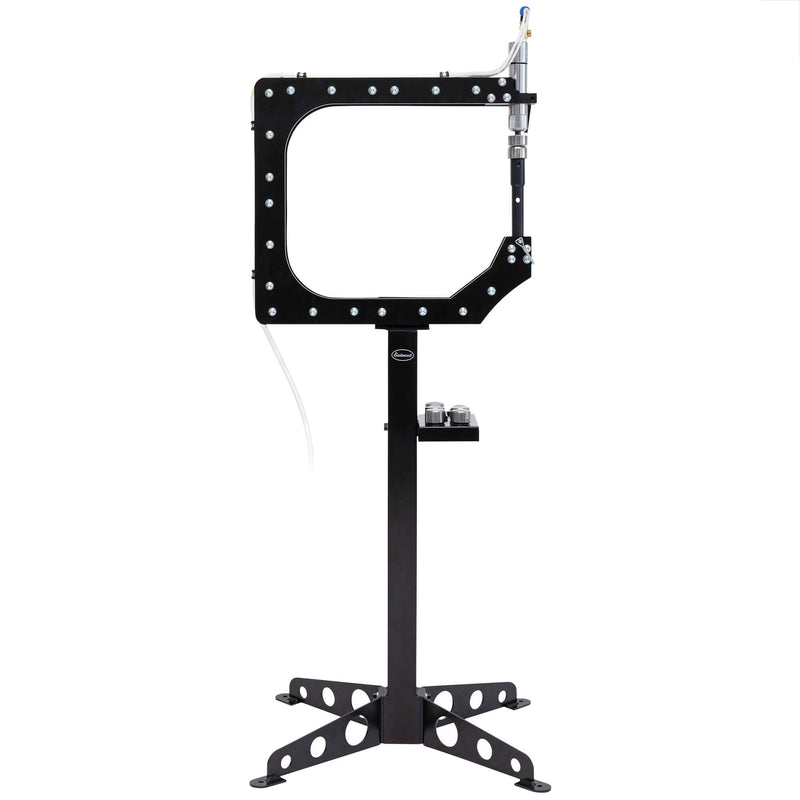

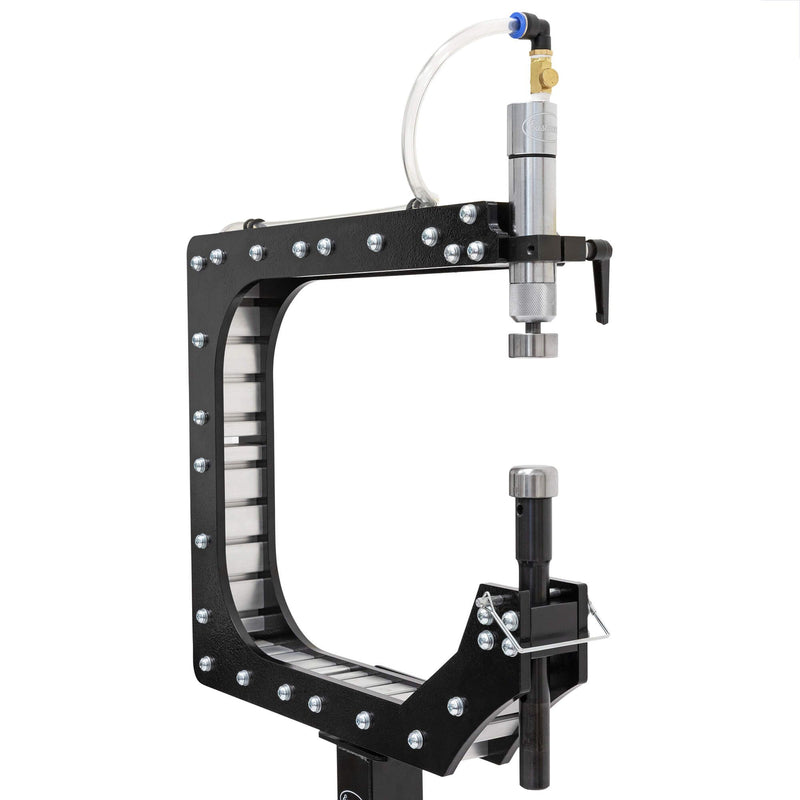

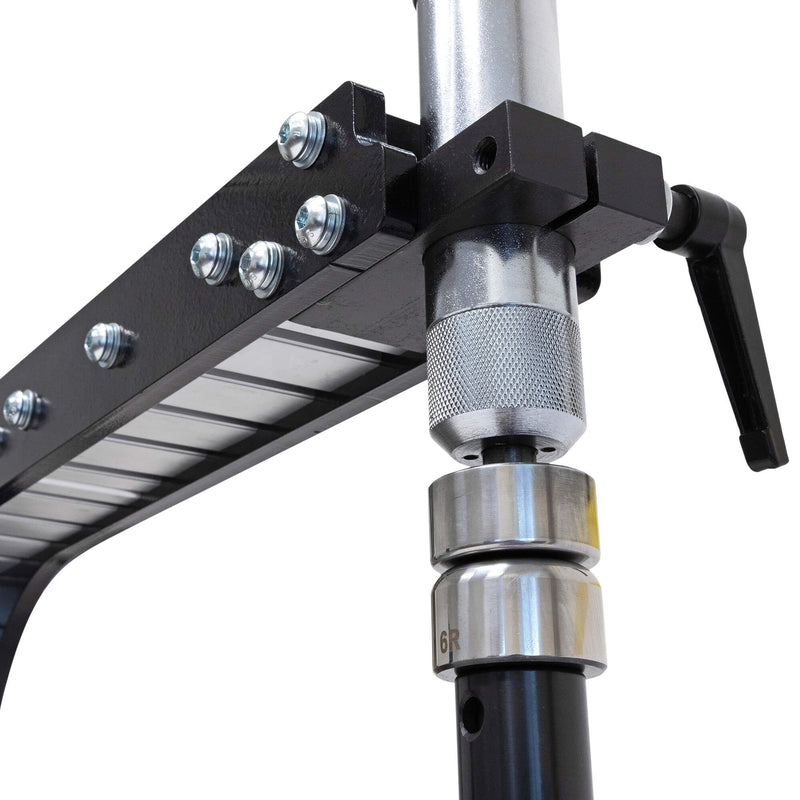

The rigid steel frame gives 18 inches of reach into the panel. Hammer speed adjusts from 1,800 to 4,600 blows per minute, and the foot pedal leaves both hands free to guide the panel. Capacity is 18-gauge mild steel, 16-gauge aluminum and 20-gauge stainless, which covers patch panels, door skins and motorcycle tanks. The eight anvils (3/4, 1, 2, 3, 6, 8, 14.5 and 36 inch radius) are 40mm diameter, held by an O-ring for quick changes, and live in a storage tray on the stand.

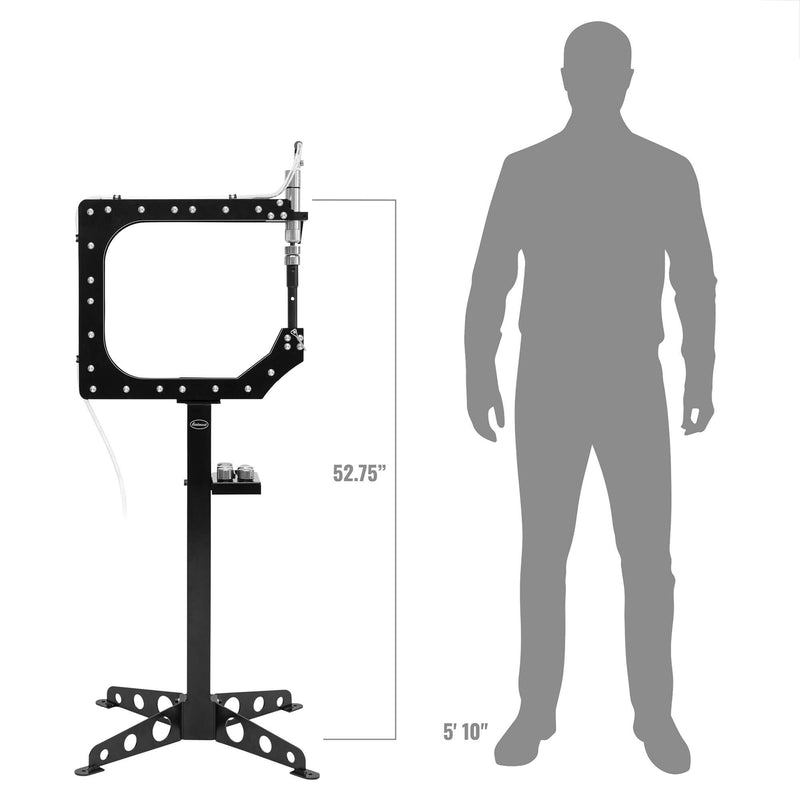

It runs on 80 to 120 psi, and Eastwood recommends a compressor that can sustain at least 4 CFM at 90 psi. Assembled it measures 22 x 22 x 58 inches with a 47.5-inch working height and weighs 64.5 lb. The stand, foot pedal, air hose, fittings and mounting hardware are included, and it carries a 1-year Eastwood warranty.

For larger panels or heavier sheet, step up to the 28-inch HD pneumatic planishing hammer (74164). The linear stretching anvil (74173) adds controlled one-direction stretching for edges and flanges. A planishing hammer is the natural companion to an English wheel, and you can see all planishing hammers at Shape The Metal.
