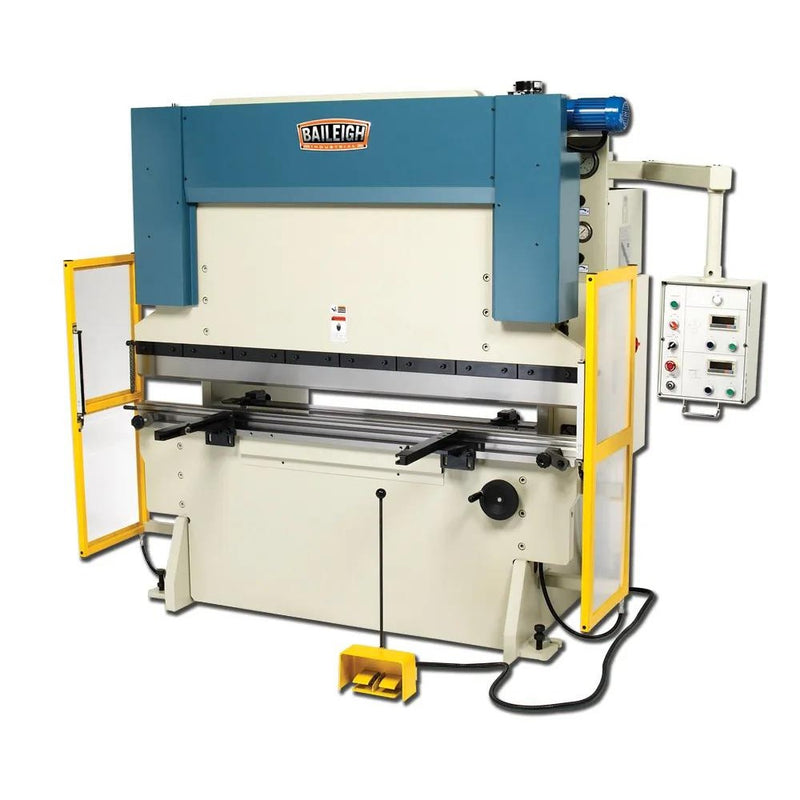

Baileigh BP-9078NC Hydraulic Press Brake

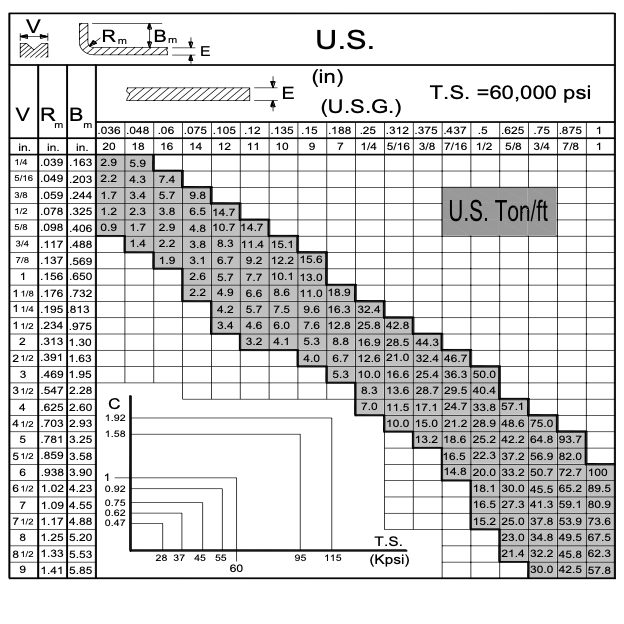

Baileigh BP-9078NC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-9078NC Hydraulic Press Brake
Baileigh BP-9078NC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-9078NC Hydraulic Press Brake

SKU: BA9-1000839  by Baileigh
Save $9,750.00 Save $9,750.00
$92,949.00
$92,949.00 - $92,949.00
$92,949.00
$83,199.00
$83,199.00 - $83,199.00
$83,199.00

Call for our Best Deal (855) 605-4599

Baileigh BP-9078NC - 90-Ton Press Brake, 78.75in Bending Capacity

  • 90 tons of bending force across the full bed.
  • 78.75in maximum bend at .196in mild steel - 3/16in plate full width.
  • Encoder DROs on ram depth and back gauge, set by hand wheel.
  • 7.87in throat depth, 61in between housings, 11.81in table to ram.
  • Extra-wide guideways and adjustable two-step downward travel.
  • Photo-electric safety curtain fitted as standard.
  • 220V 3-phase, 10 hp main motor, 45 gallon reservoir.
  • 8,800 lb machine weight - ships by flatbed freight. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-9078NC Hydraulic Press Brake Manual

Baileigh BP-9078NC 90-Ton Hydraulic Press Brake, 78.75in Bending Capacity

The BP-9078NC is a 90-ton hydraulic press brake with a 78.75 inch bed, running an NC digital counter control rather than a full CNC. Ram depth and back gauge position each read out on their own encoder-driven display, and the gauge is set by hand wheel.

Full capacity is 78.75 inches at .196 inch mild steel, so 3/16 inch plate across the whole bed. Throat depth is 7.87 inches, the housings are 61 inches apart, and there is 11.81 inches from table to ram. A 10 hp main motor drives the pump and a 1/2 hp motor drives the back gauge over 23.62 inches of travel. Stroke is 5.9 inches, approach 3.14 inches per second, bending .236, return 2.36.

The machine carries extra-wide guideways, adjustable two-step downward travel, an oversized hydraulic tank and a photo-electric safety curtain. Power is 220V 3-phase with a 45 gallon reservoir. It weighs 8,800 lbs and ships by flatbed freight. One year warranty.

If you run repeat jobs and want stored bend programs, the BP-9078CNC is the same machine with a Delem CNC control. The full range is in press brakes.
