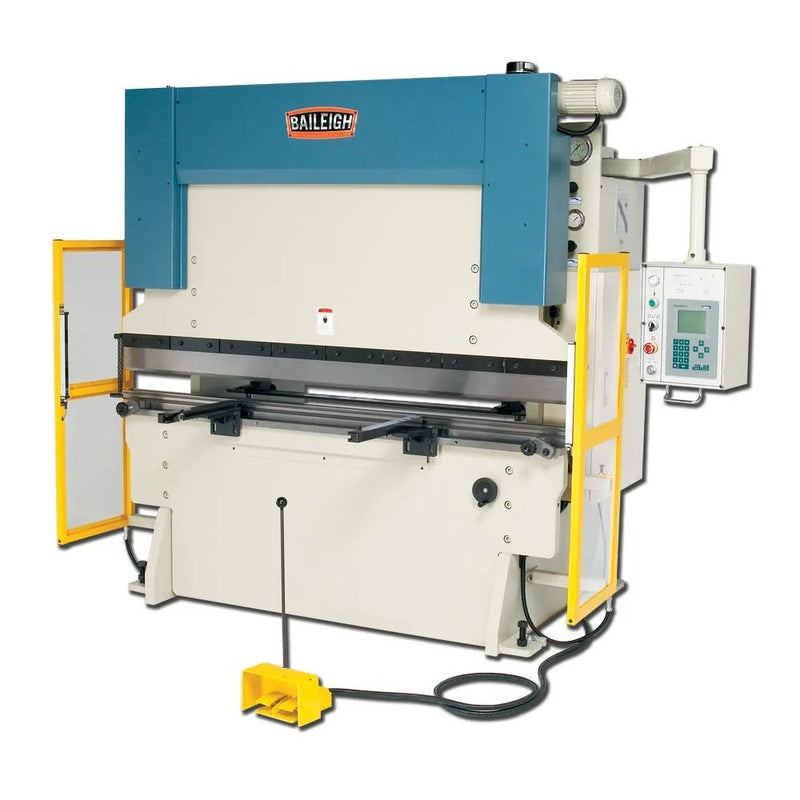

Baileigh BP-9078CNC Hydraulic Press Brake

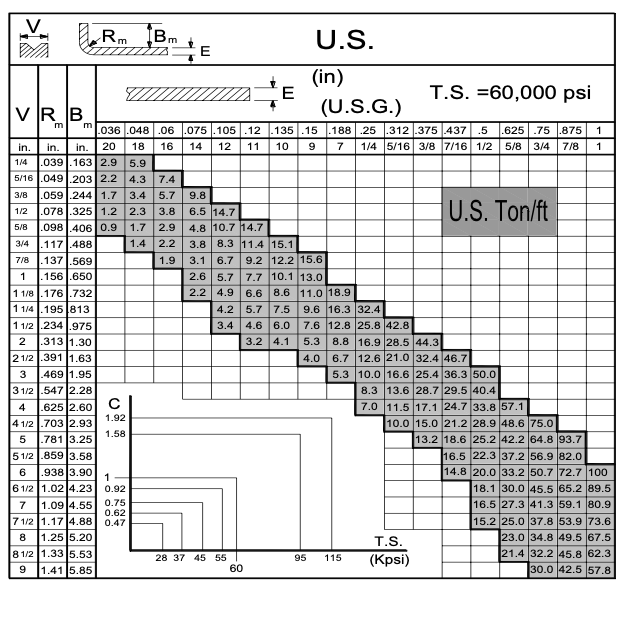

Baileigh BP-9078CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-9078CNC Hydraulic Press Brake
Baileigh BP-9078CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-9078CNC Hydraulic Press Brake

SKU: BA9-1000837  by Baileigh
$70,999.00 - $70,999.00
$70,999.00
$70,999.00 - $70,999.00
$70,999.00

Call for our Best Deal (855) 605-4599

Baileigh BP-9078CNC - 90-Ton Press Brake with Delem CNC Control

  • 90 tons of bending force across the full bed.
  • 78.75in maximum bend at .196in mild steel - 3/16in plate full width.
  • Delem CNC control - stored bend programs rather than dialling in by hand.
  • 7.87in throat depth, 61in between housings, 11.81in table to ram.
  • Motorized back gauge, 23.62in travel, 1/2 hp drive.
  • 5.9in stroke, 3.14in/sec approach, .236in/sec bending, 2.36in/sec return.
  • 220V 3-phase, 10 hp main motor, 45 gallon reservoir.
  • 8,800 lb machine weight - ships by flatbed freight. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-9078CNC Hydraulic Press Brake Manual

Baileigh BP-9078CNC 90-Ton Hydraulic Press Brake with Delem CNC Control

The BP-9078CNC is a 90-ton hydraulic press brake with a 78.75 inch bed and a Delem CNC control. It is the programmable version of the 90-ton machine, and the control is the difference worth paying for: bend sequences are stored and recalled rather than dialled in by hand each time a job comes back.

Full capacity is 78.75 inches at .196 inch mild steel, which is 3/16 inch plate across the whole bed. Throat depth is 7.87 inches, the housings sit 61 inches apart and there is 11.81 inches from table to ram. A 10 hp main motor drives the pump, with a 1/2 hp motorized back gauge running 23.62 inches of travel. Stroke is 5.9 inches, approach 3.14 inches per second, bending .236, return 2.36.

Power is 220V 3-phase and the reservoir holds 45 gallons. The machine weighs 8,800 lbs and moves by flatbed freight, so the offload needs planning before delivery. One year warranty.

If you do not need stored programs, the BP-9078NC is the same 90 tons and the same bed on a digital counter control. The full range is in press brakes.
