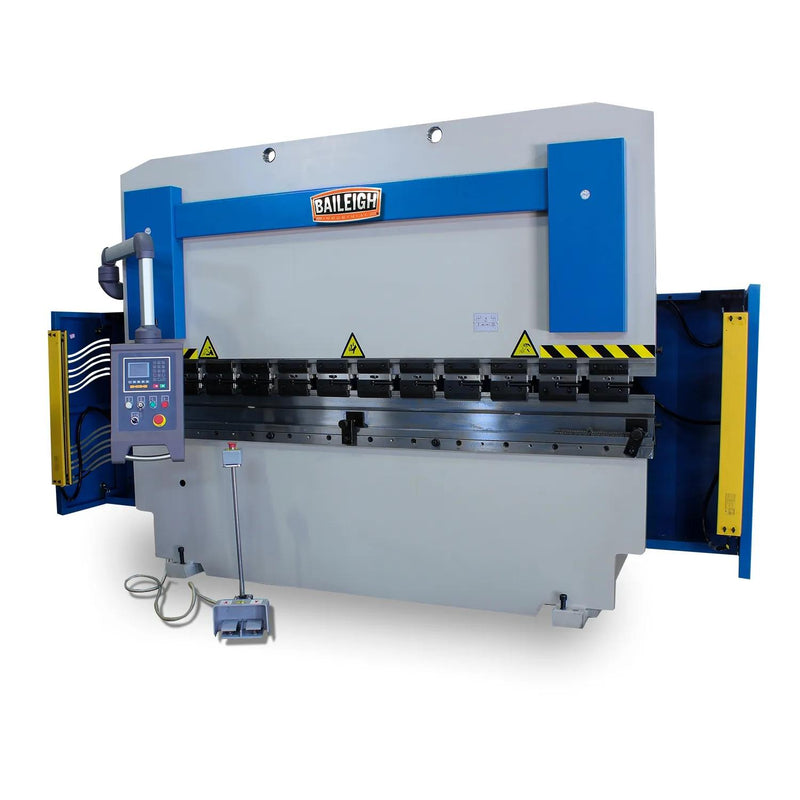

Baileigh BP-7098CNC Hydraulic Press Brake

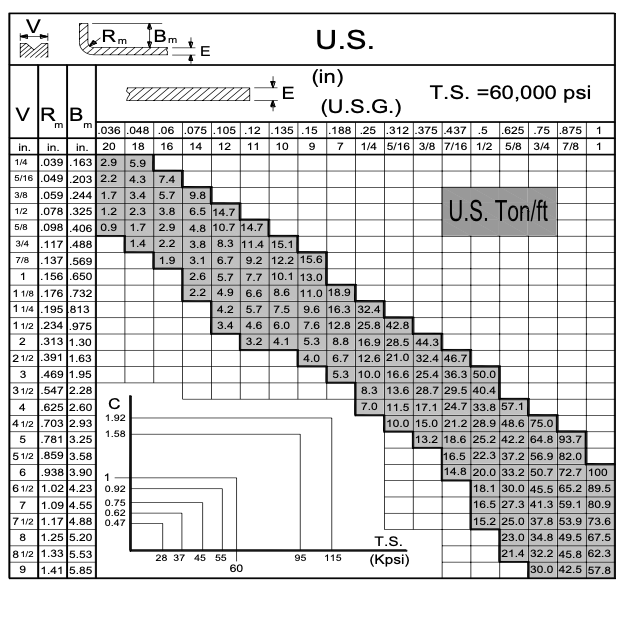

Baileigh BP-7098CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-7098CNC Hydraulic Press Brake
Baileigh BP-7098CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-7098CNC Hydraulic Press Brake

SKU: BA9-1000836  by Baileigh
Save $960.00 Save $960.00
$61,159.00
$61,159.00 - $61,159.00
$61,159.00
$60,199.00
$60,199.00 - $60,199.00
$60,199.00

Call for our Best Deal (855) 605-4599

Baileigh BP-7098CNC - 70-Ton CNC Press Brake, 98in Bed

  • 70 tons of bending force on a 98in x 5.5in table.
  • 80.7in between housings - takes 8-foot sheet through the machine.
  • 11.8in throat depth, noticeably deeper than the smaller machines in the range.
  • 2-axis CNC control with 23.62in of back gauge travel.
  • 3.9in stroke with 3.1in ram travel adjustment; 3.9in/sec approach, .275in/sec working, 3.46in/sec return.
  • 4,500 psi maximum hydraulic pressure, 29 gallon reservoir.
  • 220V 3-phase 60Hz at 19A, 5.5 hp main motor.
  • Ships by flatbed freight. One year warranty. Capacity rated on 64,000 psi mild steel.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-7098CNC Hydraulic Press Brake Manual

Baileigh BP-7098CNC 70-Ton CNC Hydraulic Press Brake, 98in Bed

The BP-7098CNC is a 70-ton programmable hydraulic press brake with a 98 inch table, which takes 8-foot sheet between the housings at 80.7 inches of clear span. Two-axis CNC control handles ram depth and back gauge together and stores the programs.

Throat depth is 11.8 inches, noticeably deeper than the 7.87 inches on the smaller machines in the range, and there is 11.8 inches from table to ram. Stroke is 3.9 inches with 3.1 inches of ram travel adjustment. Approach runs 3.9 inches per second, working speed .275, return 3.46. The back gauge covers 23.62 inches.

A 5.5 hp main motor works against a 4,500 psi maximum with a 29 gallon reservoir, and the axis servos draw very little. Power is 220V 3-phase 60Hz at 19A. Rated capacity assumes 64,000 psi mild steel. The machine ships by flatbed freight. One year warranty.

If 98 inches is more bed than the work needs, the BP-5078CNC gives CNC control on a 78 inch bed at 50 tons. The full range is in press brakes.
