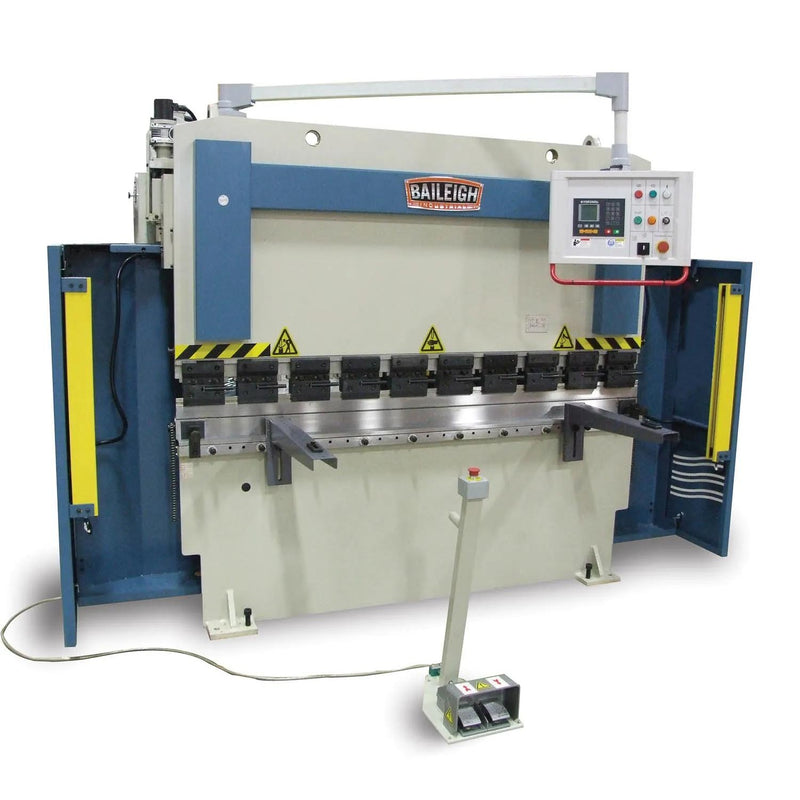

Baileigh BP-5078CNC Hydraulic Press Brake

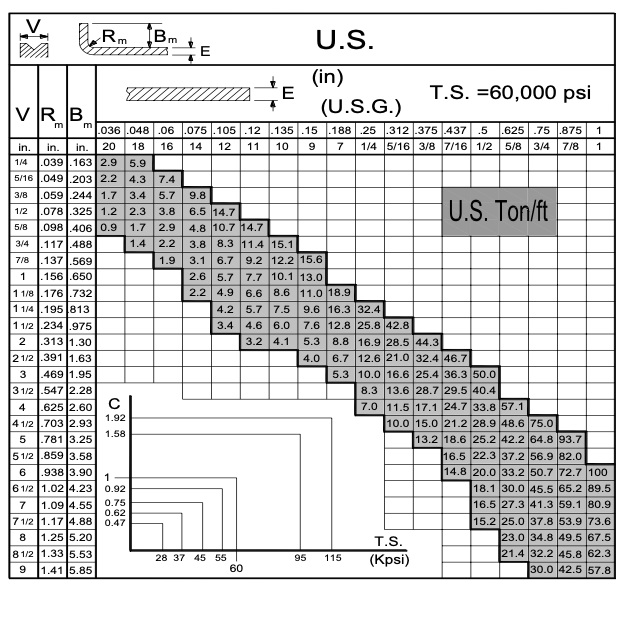

Baileigh BP-5078CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-5078CNC Hydraulic Press Brake
Baileigh BP-5078CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-5078CNC Hydraulic Press Brake

SKU: BA9-1010285  by Baileigh
$51,809.00 - $51,809.00
$51,809.00
$51,809.00 - $51,809.00
$51,809.00

Call for our Best Deal (855) 605-4599

Baileigh BP-5078CNC - 50-Ton CNC Press Brake, 78in Bed

  • 50 tons of bending force on a 78.7in table.
  • 2-axis CNC control - ram depth and back gauge positioned together, programs stored.
  • 7.87in throat depth, 64.5in between housings, 11.81in table to ram.
  • 3.93in stroke, 3.93in/sec approach, .393in/sec working, 3.5in/sec return.
  • 15.7in back gauge travel, 1/2 hp drive.
  • 4,500 psi maximum hydraulic pressure, 16.5 gallon reservoir.
  • 220V 3-phase 60Hz, 4 hp main motor.
  • Ships by flatbed freight. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-5078CNC Hydraulic Press Brake Manual

Baileigh BP-5078CNC 50-Ton CNC Hydraulic Press Brake, 78in Bed

The BP-5078CNC is a 50-ton programmable hydraulic press brake with a 78.7 inch table. Two-axis CNC control positions both ram depth and back gauge, and bend programs are stored and recalled rather than set up by hand each time a job repeats.

Throat depth is 7.87 inches, the housings sit 64.5 inches apart and there is 11.81 inches from table to ram, which is the working envelope for anything already formed. Stroke is 3.93 inches, approach runs at 3.93 inches per second, working speed .393, return 3.5. The back gauge covers 15.7 inches of travel.

A 4 hp main motor drives the pump against a 4,500 psi maximum, with a 16.5 gallon reservoir and a 1/2 hp back gauge motor. Power is 220V 3-phase 60Hz. The machine ships by flatbed freight, so plan the offload before delivery. One year warranty.

The BP-5060NC makes the same 50 tons on a shorter 61 inch bed with NC rather than CNC control, at a lower price. The full range is in press brakes.
