Baileigh BP-5060NC Hydraulic Press Brake

Name: Baileigh BP-5060NC Hydraulic Press Brake
Brand: Baileigh
SKU: BA9-1000824
Price: 59499.0 USD
Availability: InStock

SKU: BA9-1000824 by Baileigh

Save $1,880.00

$61,379.00

$61,379.00 - $61,379.00

$61,379.00

$59,499.00

$59,499.00 - $59,499.00

$59,499.00

Call for our Best Deal (855) 605-4599

Baileigh BP-5060NC - 50-Ton NC Press Brake, 61in Bending Capacity

50 tons of bending force across the full length of the bed.
61in maximum bend at .118in mild steel - 1/8in plate full width, not just in short sections.
7.87in throat depth, 49.21in between housings, 11.81in table to ram.
Encoder-controlled DROs on both ram depth and back gauge position.
Motorized ball-screw back gauge, 23.62in travel.
Three modes - jog, manual, automatic - on foot pedal control.
5.9in stroke, 3.14in/sec approach, .275in/sec bending, 2.36in/sec return.
Hardened single-Vee tooling included, with front material rests and a safety curtain.
220V 3-phase, 5 hp main motor, 1/2 hp back gauge motor, 28 gallon reservoir.
6,160 lb machine weight - ships by flatbed freight. One year warranty.

Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-5060NC Hydraulic Press Brake Manual

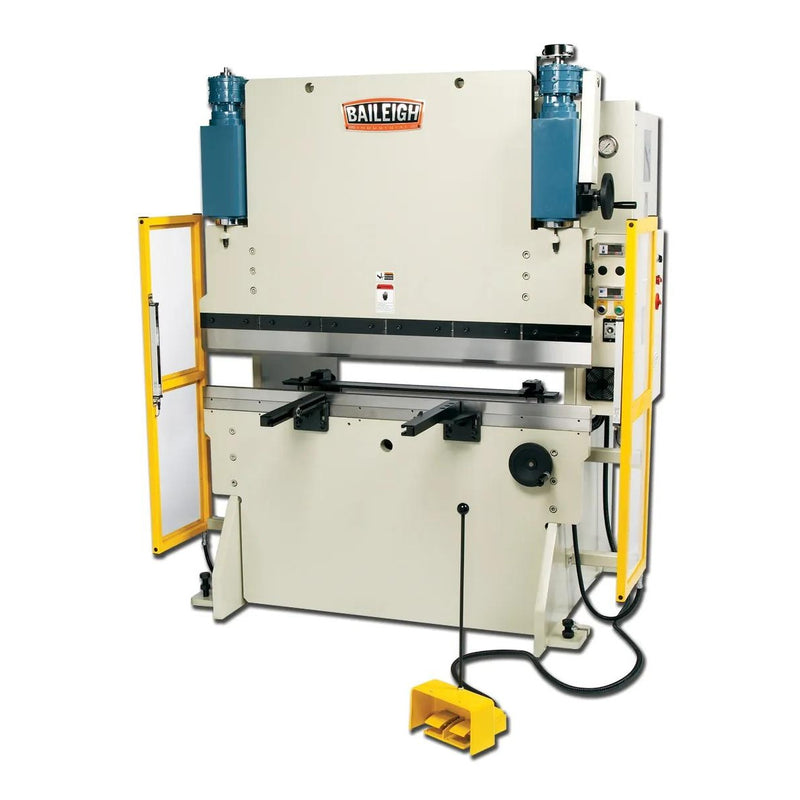

Baileigh BP-5060NC 50-Ton Hydraulic Press Brake with 61in Bending Capacity

The BP-5060NC is a 50-ton NC hydraulic press brake with a 61 inch bed. It shares the frame and bed length of the 33-ton machine below it in the range, but a 5 hp pump and heavier cylinders take full-width capacity from .078 inch up to .118 inch mild steel.

That extra thickness is the reason to choose it. At 61 inches by .118 inch you are into 1/8 inch plate across the whole bed, which covers bracketry, gussets, base plates and chassis work that a lighter brake can only manage in short sections. Throat depth is 7.87 inches, the housings sit 49.21 inches apart, and there is 11.81 inches from table to ram. The motorized back gauge runs on a ball screw with 23.62 inches of travel, with encoder-driven digital readouts on both ram depth and gauge position.

Three modes cover setup through production, all on foot pedal control, and it ships with hardened single-Vee tooling, front material rests and a safety curtain. Power is 220V 3-phase with a 5 hp main motor, a 1/2 hp back gauge motor and a 28 gallon reservoir. The machine weighs 6,160 lbs and moves by flatbed freight, so plan the offload before it arrives. One year warranty.

If .078 inch full width is enough for your work, the BP-3360NC gives the same 61 inch bed at 33 tons for less money. The full range is in press brakes.
