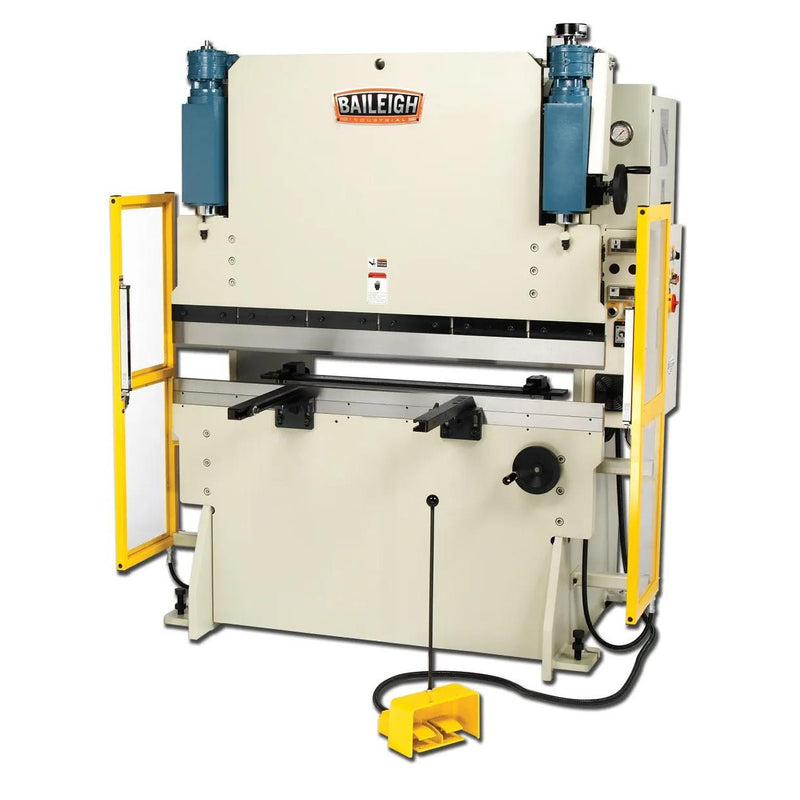

Baileigh BP-3360NC Hydraulic Press Brake

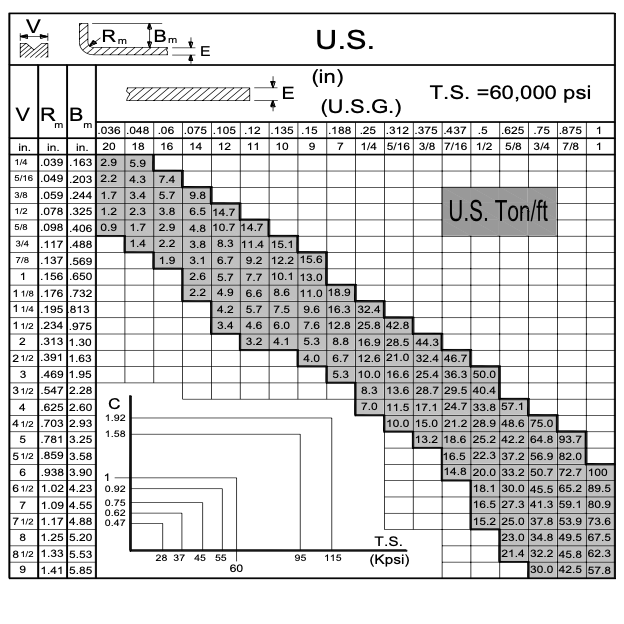

Baileigh BP-3360NC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-3360NC Hydraulic Press Brake
Baileigh BP-3360NC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-3360NC Hydraulic Press Brake

SKU: BA9-1000803  by Baileigh
Save $4,800.00 Save $4,800.00
$49,499.00
$49,499.00 - $49,499.00
$49,499.00
$44,699.00
$44,699.00 - $44,699.00
$44,699.00

Call for our Best Deal (855) 605-4599

Baileigh BP-3360NC - 33-Ton NC Press Brake, 61in Bending Capacity

  • 33 tons of bending force across the full length of the bed.
  • 61in maximum bend at .078in mild steel - full-width capacity, not a centre-of-bed figure.
  • 7.87in throat depth and 49.21in between housings, which sets what will pass through the machine.
  • Encoder-controlled DROs on both ram depth and back gauge position for repeatable bends.
  • Motorized ball-screw back gauge, 23.62in travel.
  • Three modes - jog, manual, automatic - covering setup through production, all on foot pedal control.
  • 5.9in stroke, 3.14in/sec approach, .275in/sec bending, 2.36in/sec return.
  • Hardened single-Vee tooling included, along with front material rests and a 6-light safety curtain.
  • 220V 3-phase, 3 hp main motor, 1/2 hp back gauge motor, 48 gallon reservoir.
  • 3,300 lb machine weight - ships by truck freight. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-3360NC Hydraulic Press Brake Manual

Baileigh BP-3360NC 33-Ton Hydraulic Press Brake with 61in Bending Capacity

The BP-3360NC is a 33-ton NC hydraulic press brake with a 61 inch bending bed. Two encoder-controlled hydraulic cylinders drive the upper beam, and separate digital readouts show ram depth and back gauge position, so a bend gets dialled in once and then repeats.

Full-width capacity is 61 inches at .078 inch mild steel. Throat depth is 7.87 inches and the housings sit 49.21 inches apart, which is what actually decides whether a formed part will pass through the machine. The motorized back gauge rides a ball screw with 23.62 inches of travel. Three modes cover the work: jog for setup, manual when you want control over the descent and return, and automatic for production runs.

It ships with a set of hardened single-Vee tooling, front material rests, foot pedal control and a 6-light safety curtain. Power is 220V 3-phase, with a 3 hp main motor, a 1/2 hp back gauge motor and a 48 gallon oil reservoir. The machine weighs 3,300 lbs and moves by truck freight, so plan for a forklift and a clear path into the shop. One year warranty.

If 61 inches is more bed than you need, the BP-3350NC makes the same 33 tons across a 50 inch bed and takes .098 inch material full width, so it is the better pick for thicker stock in narrower pieces. The full range is in press brakes.
