Baileigh BP-17913CNC Hydraulic Press Brake

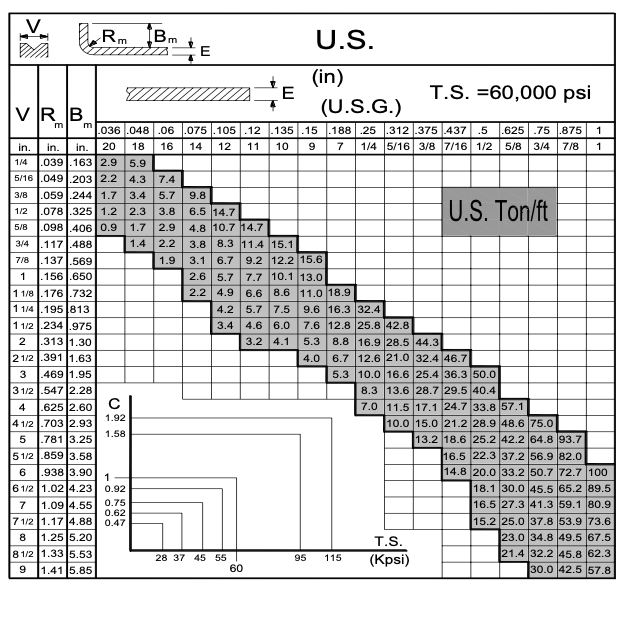

Baileigh BP-17913CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-17913CNC Hydraulic Press Brake
Baileigh BP-17913CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-17913CNC Hydraulic Press Brake

SKU: BA9-1000789  by Baileigh
Save $5,000.00 Save $5,000.00
$109,999.00
$109,999.00 - $109,999.00
$109,999.00
$104,999.00
$104,999.00 - $104,999.00
$104,999.00

Call for our Best Deal (855) 605-4599

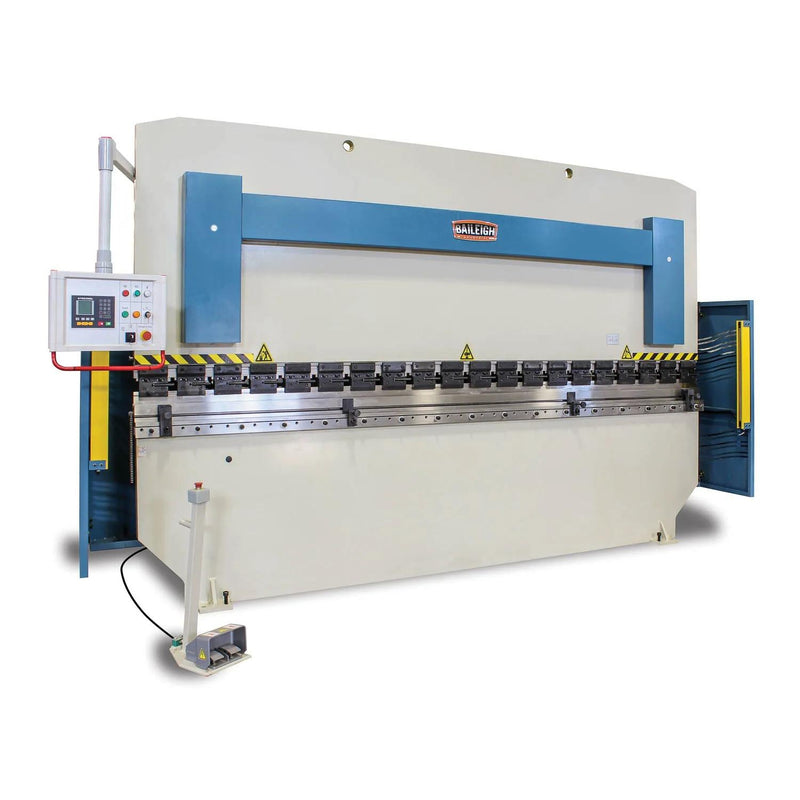

Baileigh BP-17913CNC - 179-Ton CNC Press Brake, 157in Table

  • 179 tons of bending force on a 157in x 7in table.
  • 123in between housings, 17.7in table to ram.
  • 7in stroke with 4.3in ram travel adjustment.
  • 12.5in throat depth for deep-formed work.
  • 2-axis CNC control, 23.62in servo back gauge travel.
  • 4,500 psi maximum hydraulic pressure, 33 gallon reservoir.
  • 220V 3-phase at 33.5A, 15 hp main motor.
  • Ships by flatbed freight - 13ft machine, plan access and rigging. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-17913CNC Hydraulic Press Brake Manual

Baileigh BP-17913CNC 179-Ton CNC Hydraulic Press Brake, 157in Table

The BP-17913CNC is the long-bed version of the 179-ton programmable press brake, with a 157 inch table and 123 inches between the housings. Ram, control and hydraulics are identical to the 125 inch machine; the difference is bed length and what you can bend in one pass.

Throat depth is 12.5 inches with 17.7 inches from table to ram, and stroke is 7 inches with 4.3 inches of travel adjustment. Approach runs 3.9 inches per second, bending .236, return 2.36. Two-axis CNC control positions ram depth and back gauge, with 23.62 inches of servo gauge travel.

A 15 hp main motor works against a 4,500 psi maximum with a 33 gallon reservoir, on 220V 3-phase at 33.5A. Rated capacity assumes 64,000 psi mild steel. This is a 13-foot machine on flatbed freight, so settle access and rigging before it ships. One year warranty.

The BP-17910CNC is the same machine on a 125 inch bed. The full range is in press brakes.
