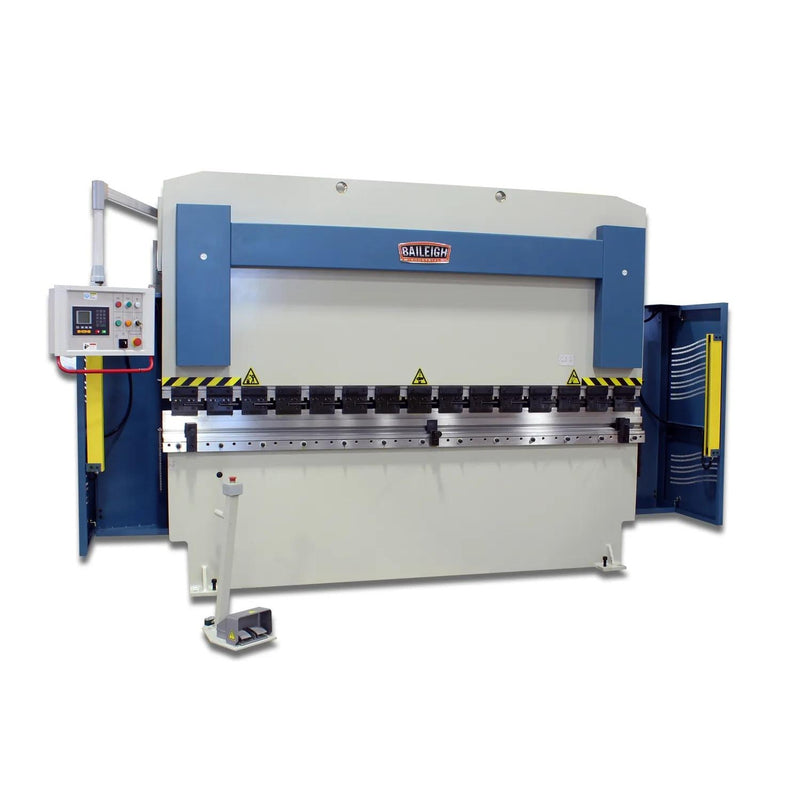

Baileigh BP-17910CNC Hydraulic Press Brake

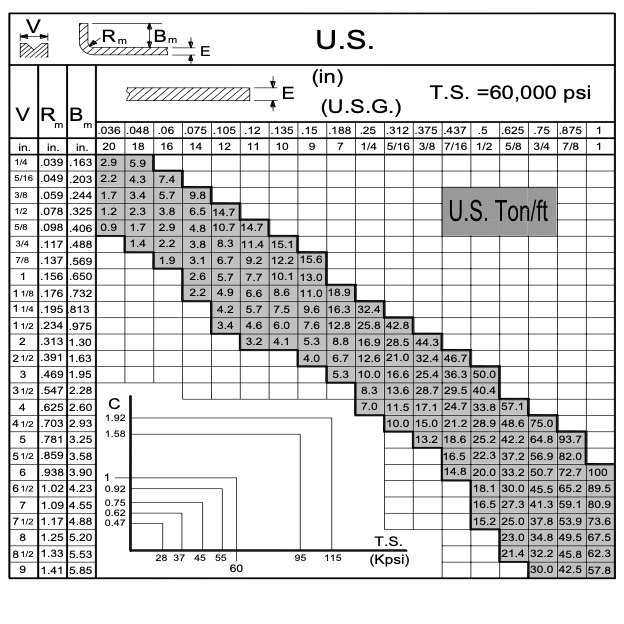

Baileigh BP-17910CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-17910CNC Hydraulic Press Brake
Baileigh BP-17910CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-17910CNC Hydraulic Press Brake

SKU: BA9-1000788  by Baileigh
Save $6,300.00 Save $6,300.00
$104,999.00
$104,999.00 - $104,999.00
$104,999.00
$98,699.00
$98,699.00 - $98,699.00
$98,699.00

Call for our Best Deal (855) 605-4599

Baileigh BP-17910CNC - 179-Ton CNC Press Brake, 125in Table

  • 179 tons of bending force on a 125in x 7in table.
  • 100in between housings, 17.7in table to ram.
  • 7in stroke - the longest in the range - with 4.3in travel adjustment.
  • 12.5in throat depth for deep-formed work.
  • 2-axis CNC control, 23.62in servo back gauge travel.
  • 4,500 psi maximum hydraulic pressure, 33 gallon reservoir.
  • 220V 3-phase at 33.5A, 15 hp main motor.
  • Ships by flatbed freight. One year warranty. Capacity rated on 64,000 psi mild steel.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-17910CNC Hydraulic Press Brake Manual

Baileigh BP-17910CNC 179-Ton CNC Hydraulic Press Brake, 125in Table

The BP-17910CNC is a 179-ton programmable hydraulic press brake with a 125 inch table and 100 inches of clear span between the housings. It is a production machine: the tonnage and the 17.7 inches from table to ram put it well past what a general fabrication shop needs, and into structural and heavy plate work.

Throat depth is 12.5 inches and stroke is 7 inches, the longest in the range, with 4.3 inches of ram travel adjustment. Approach runs 3.9 inches per second, bending .236, return 2.36. Two-axis CNC control handles ram depth and back gauge, with 23.62 inches of servo-driven gauge travel.

A 15 hp main motor works against a 4,500 psi maximum with a 33 gallon reservoir, drawing 33.5A on 220V 3-phase. Rated capacity assumes 64,000 psi mild steel. The machine ships by flatbed freight and needs proper rigging on arrival. One year warranty.

For the same machine on a 157 inch bed, see the BP-17913CNC. The full range is in press brakes.
