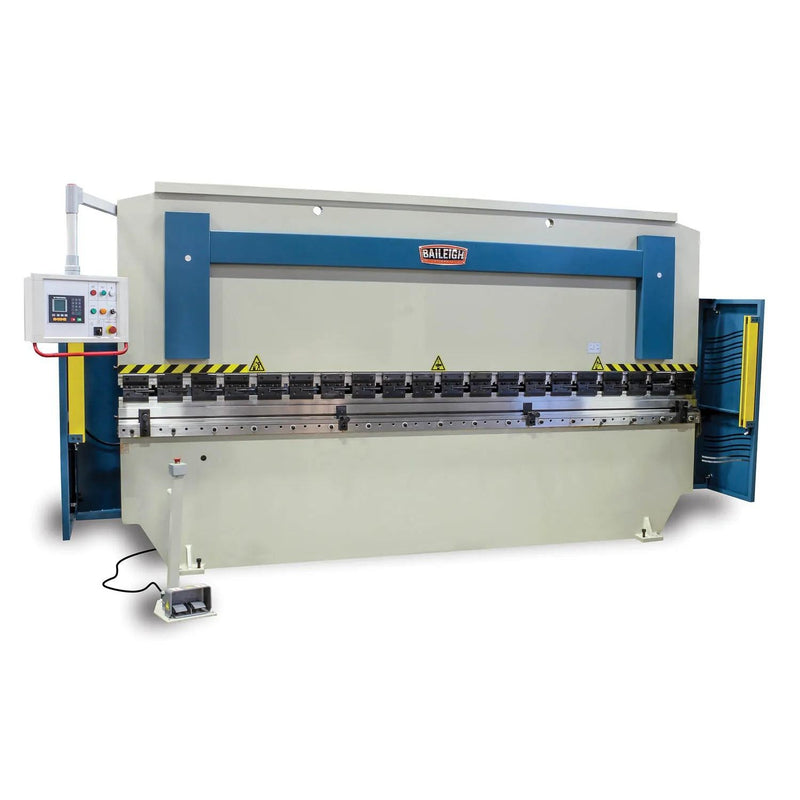

Baileigh BP-14013CNC Hydraulic Press Brake

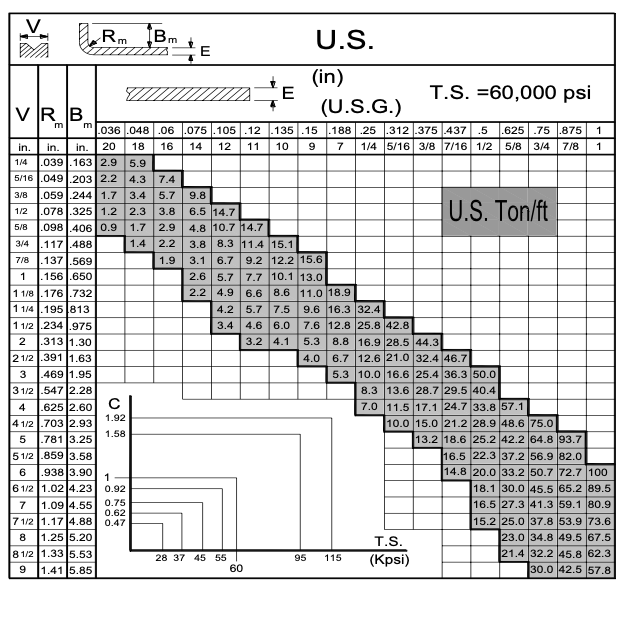

Baileigh BP-14013CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-14013CNC Hydraulic Press Brake
Baileigh BP-14013CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-14013CNC Hydraulic Press Brake

SKU: BA9-1000787  by Baileigh
Save $5,300.00 Save $5,300.00
$99,999.00
$99,999.00 - $99,999.00
$99,999.00
$94,699.00
$94,699.00 - $94,699.00
$94,699.00

Call for our Best Deal (855) 605-4599

Baileigh BP-14013CNC - 140-Ton CNC Press Brake, 157in Table

  • 140 tons of bending force on a 157in x 7in table.
  • 124in between housings - full-length bends in one pass.
  • 12.5in throat depth, 15.3in table to ram.
  • 2-axis CNC control, 23.62in servo back gauge travel.
  • 4.7in stroke with 4.3in ram travel adjustment; 3.93in/sec approach, .31in/sec bending, 2.36in/sec return.
  • 4,500 psi maximum hydraulic pressure, 33 gallon reservoir.
  • 220V 3-phase, 10 hp main motor.
  • Ships by flatbed freight - 13ft machine, plan access and rigging. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-14013CNC Hydraulic Press Brake Manual

Baileigh BP-14013CNC 140-Ton CNC Hydraulic Press Brake, 157in Table

The BP-14013CNC is the long-bed version of Baileigh's 140-ton programmable press brake, with a 157 inch table and 124 inches between the housings. Everything about the ram, control and hydraulics matches the 125 inch machine; what you are buying is the extra bed length.

Throat depth is 12.5 inches with 15.3 inches from table to ram. Stroke is 4.7 inches with 4.3 inches of ram travel adjustment. Approach runs 3.93 inches per second, bending .31, return 2.36. The back gauge covers 23.62 inches on servo drive, and two-axis CNC control positions ram depth and gauge together.

A 10 hp main motor works against a 4,500 psi maximum with a 33 gallon reservoir, on 220V 3-phase. This is a 13-foot machine and ships by flatbed freight, so access and rigging need to be settled before it leaves. One year warranty.

If your work fits inside 125 inches, the BP-14010CNC is the same machine on a shorter bed for meaningfully less. The full range is in press brakes.
