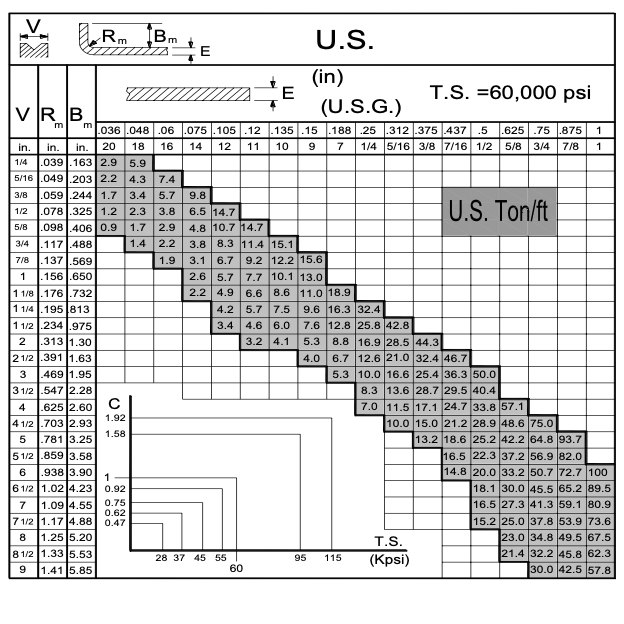

Baileigh BP-14010CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-14010CNC Hydraulic Press Brake
Baileigh BP-14010CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-14010CNC Hydraulic Press Brake

SKU: BA9-1000786  by Baileigh
Save $7,500.00 Save $7,500.00
$96,999.00
$96,999.00 - $96,999.00
$96,999.00
$89,499.00
$89,499.00 - $89,499.00
$89,499.00

Call for our Best Deal (855) 605-4599

Baileigh BP-14010CNC - 140-Ton CNC Press Brake, 125in Table

  • 140 tons of bending force on a 125in x 7in table.
  • 102in between housings for full-width work.
  • 12.5in throat depth and 15.3in table to ram - the deepest clearance in this part of the range.
  • 2-axis CNC control, 23.62in servo back gauge travel.
  • 4.7in stroke with 4.3in ram travel adjustment; 3.93in/sec approach, .31in/sec bending, 2.36in/sec return.
  • 4,500 psi maximum hydraulic pressure, 33 gallon reservoir.
  • 220V 3-phase, 10 hp main motor.
  • Ships by flatbed freight. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-14010CNC Hydraulic Press Brake Manual

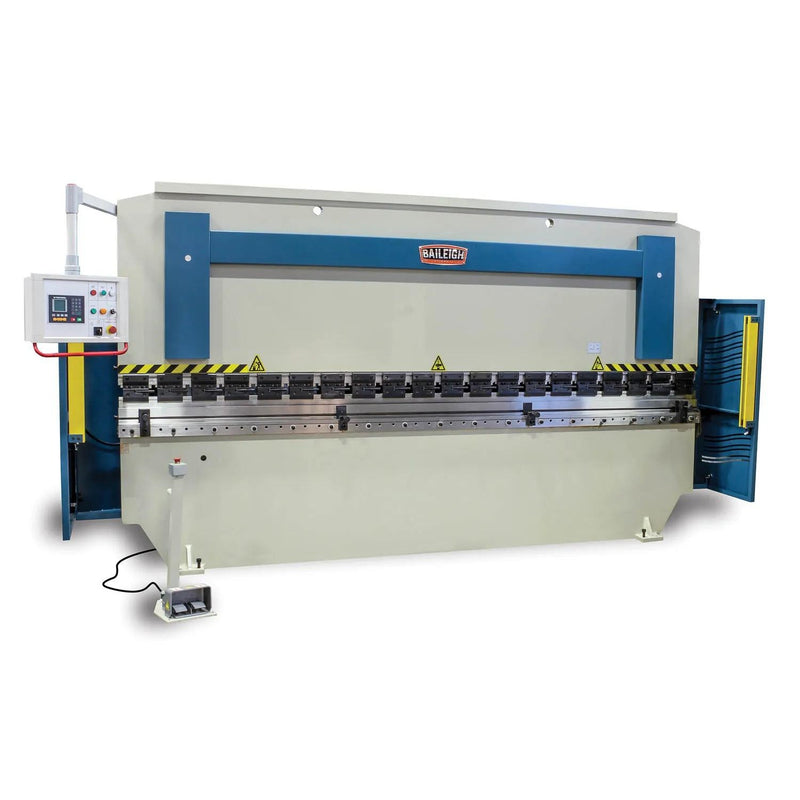

Baileigh BP-14010CNC 140-Ton CNC Hydraulic Press Brake, 125in Table

The BP-14010CNC is a 140-ton programmable hydraulic press brake with a 125 inch table and 102 inches between the housings. It is the same footprint class as the 112-ton machine with a substantially heavier ram, for shops running thicker plate or longer bends at full width.

Throat depth is 12.5 inches and there is 15.3 inches from table to ram, which is the deepest clearance in this part of the range and matters once parts have already been formed. Stroke is 4.7 inches with 4.3 inches of ram travel adjustment. Approach runs 3.93 inches per second, bending .31, return 2.36. The back gauge covers 23.62 inches on servo drive.

A 10 hp main motor drives the pump against a 4,500 psi maximum with a 33 gallon reservoir, on 220V 3-phase. The machine ships by flatbed freight and needs proper rigging at the far end. One year warranty.

The BP-11210CNC covers the same table length at 112 tons for less money. The full range is in press brakes.
