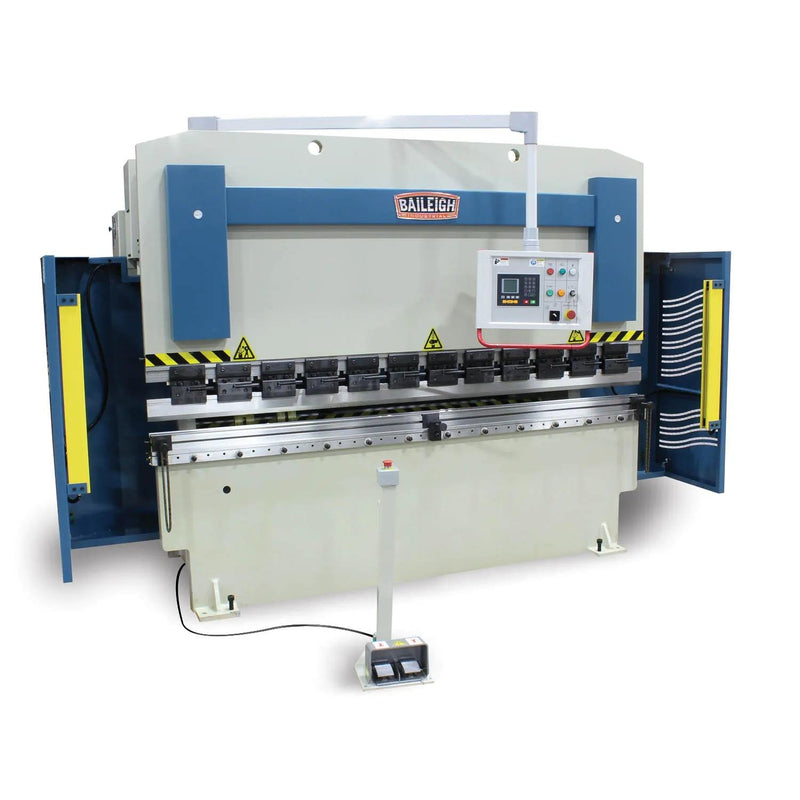

Baileigh BP-11210CNC Hydraulic Press Brake

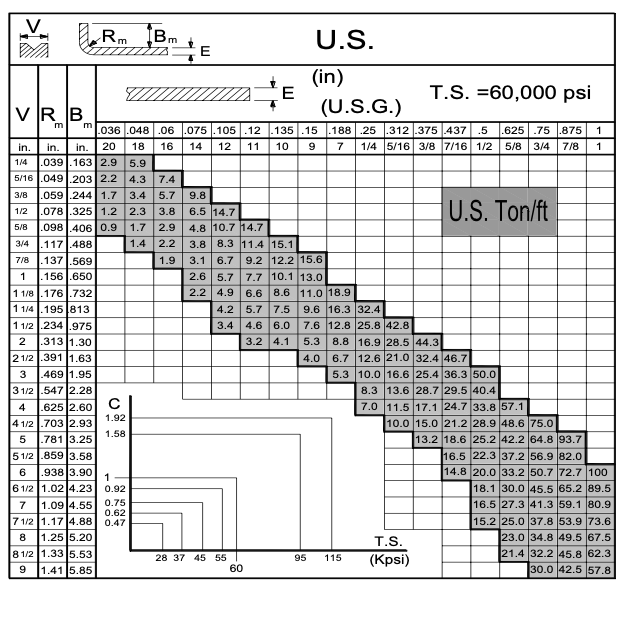

Baileigh BP-11210CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-11210CNC Hydraulic Press Brake
Baileigh BP-11210CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-11210CNC Hydraulic Press Brake

SKU: BA9-1000781  by Baileigh
Save $31,400.00 Save $31,400.00
$91,599.00
$91,599.00 - $91,599.00
$91,599.00
$60,199.00
$60,199.00 - $60,199.00
$60,199.00

Call for our Best Deal (855) 605-4599

Baileigh BP-11210CNC - 112-Ton CNC Press Brake, 125in Table

  • 112 tons of bending force on a 125in x 7in table.
  • 100in between housings - 8-foot sheet passes through with room either side.
  • 11.8in throat depth, 12.2in table to ram.
  • 2-axis CNC control, 23.62in servo back gauge travel.
  • 4.7in stroke with 4.3in ram travel adjustment; 3.9in/sec approach, .31in/sec working, 2.36in/sec return.
  • 4,500 psi maximum hydraulic pressure, 33 gallon reservoir.
  • 220V 3-phase 60Hz at 30A, 7.5 hp main motor - check the supply before delivery.
  • Ships by flatbed freight. One year warranty. Capacity rated on 64,000 psi mild steel.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-11210CNC Hydraulic Press Brake Manual

Baileigh BP-11210CNC 112-Ton CNC Hydraulic Press Brake, 125in Table

The BP-11210CNC is a 112-ton programmable hydraulic press brake with a 125 inch table and 100 inches of clear span between the housings, which is enough to slide 8-foot sheet through and still have room either side. Two-axis CNC control positions ram depth and back gauge and stores the programs.

Throat depth is 11.8 inches and there is 12.2 inches from table to ram. Stroke is 4.7 inches with 4.3 inches of ram travel adjustment. Approach runs at 3.9 inches per second, working speed .31, return 2.36. The back gauge covers 23.62 inches of travel on servo drive.

A 7.5 hp main motor works against a 4,500 psi maximum with a 33 gallon reservoir. Power is 220V 3-phase 60Hz at 30A, so the supply needs checking before delivery. Rated capacity assumes 64,000 psi mild steel. The machine ships by flatbed freight. One year warranty.

For the same 125 inch table at 140 tons, see the BP-14010CNC. The full range is in press brakes.
