Woodward-Fab WFTR45 Tube Roller

Woodward-Fab WFTR45 Tube Roller

SKU: WFTR45  by Woodward-Fab
$679.99 - $679.99
$679.99
$679.99 - $679.99
$679.99
Availability:
5+ in stock, ready to be shipped

Call for our Best Deal (855) 605-4599

Woodward-Fab WFTR45 Tube Roller Details

  • 1-1/2" round tube to a 20" diameter - Woodward-Fab's rating, in wall up to .080"
  • 1-1/2" tube die included - optional WFTR45 round tube dies from 1/2" to 2" for other sizes
  • Hand-crank drive roll - the crank turns the top roll, so the tube feeds and forms in one motion
  • Screw-adjusted top roll - wind it down a little between passes and walk the radius in gradually
  • Adjustable lower roll spacing - the lower rolls sit in slotted side frames
  • Ball bearings on the roll shafts - smooth, even rolling under load
  • Four-bolt base - bolts through a bench or onto a stand
  • 75 lbs - compact enough to store on a shelf between jobs
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

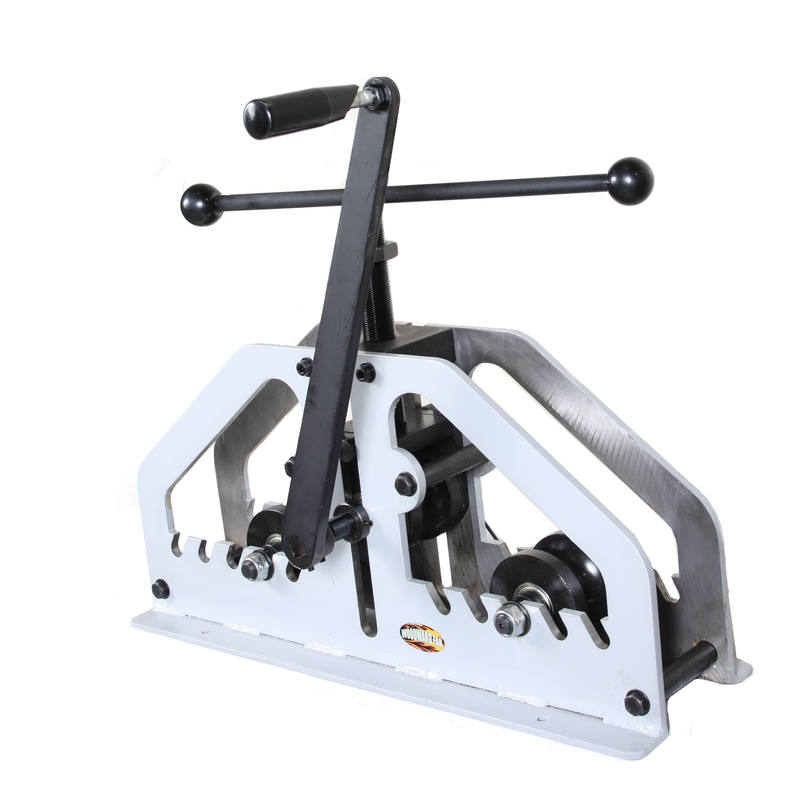

Woodward-Fab WFTR45 Manual Tube Roller - Rolls 1-1/2" Round Tube to a 20" Diameter

The Woodward-Fab WFTR45 is a compact, hand-cranked tube roller for putting large, even radii into round tube. Three rolls do the work: two lower rolls support the tube while the crank-driven top roll is screwed down a little between passes, so the radius tightens gradually instead of in one hit.

Woodward-Fab rates it to roll 1-1/2" round tube as small as a 20" diameter, in wall up to .080". That covers bumper and grille tube, trailer and cart frames, handrails, furniture frames and arched gates. The 1-1/2" die set comes with the machine, and WFTR45 round tube dies from 1/2" to 2" change it over for other sizes.

It weighs 75 lbs and bolts down through a four-hole base, so it suits a bench or a stand. The lower rolls sit in slotted side frames for adjustable spacing, and every roll shaft runs on ball bearings.

For 2" tube or a full day of rolling, the WFTR5 adds a chain drive to both lower rolls and its own height-adjustable stand. If you need a tight bend rather than a sweep, that is a job for one of our Tube Benders. Every roller we carry is in Tube Rollers.
