ProLine 24 inch Cast Iron Planishing Hammer
ProLine 24 inch Cast Iron Planishing Hammer
ProLine 24 inch Cast Iron Planishing Hammer
ProLine 24 inch Cast Iron Planishing Hammer
ProLine 24 inch Cast Iron Planishing Hammer
ProLine 24 inch Cast Iron Planishing Hammer

ProLine 24 inch Cast Iron Planishing Hammer

SKU: 050096  by ProLine
Made in the USA
$8,500.00 - $8,500.00
$8,500.00
$8,500.00 - $8,500.00
$8,500.00
Availability:
5+ in stock, ready to be shipped

Call for our Best Deal (855) 605-4599

  • 24" throat depth
  • Cast-iron frame for stability and vibration damping
  • CP-style tooling — includes die rack and starter dies
  • Foot-pedal activation with automatic air cutoff
  • Needle valve for fine air-pressure adjustment
  • Optional bottom anvil holder (sold separately) for deeper contours

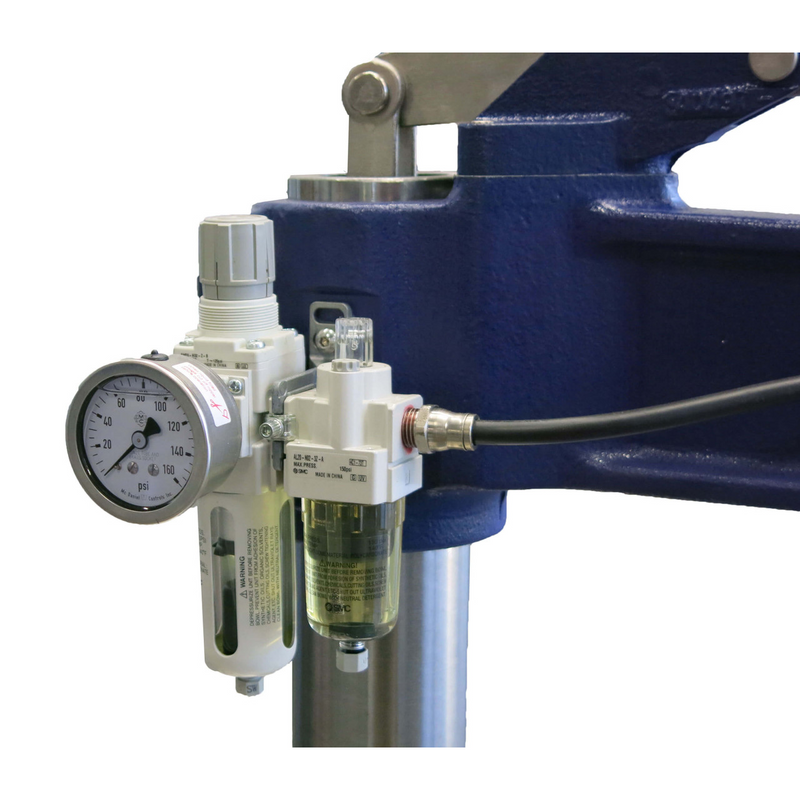

  • Requires 80-120 PSI @ 13 CFM shop air
  • 450 lbs — Made in the USA — ships LTL
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download ProLine 24" Pneumatic Planishing Hammer Manual

ProLine 24" Cast Iron Planishing Hammer — Pneumatic Production

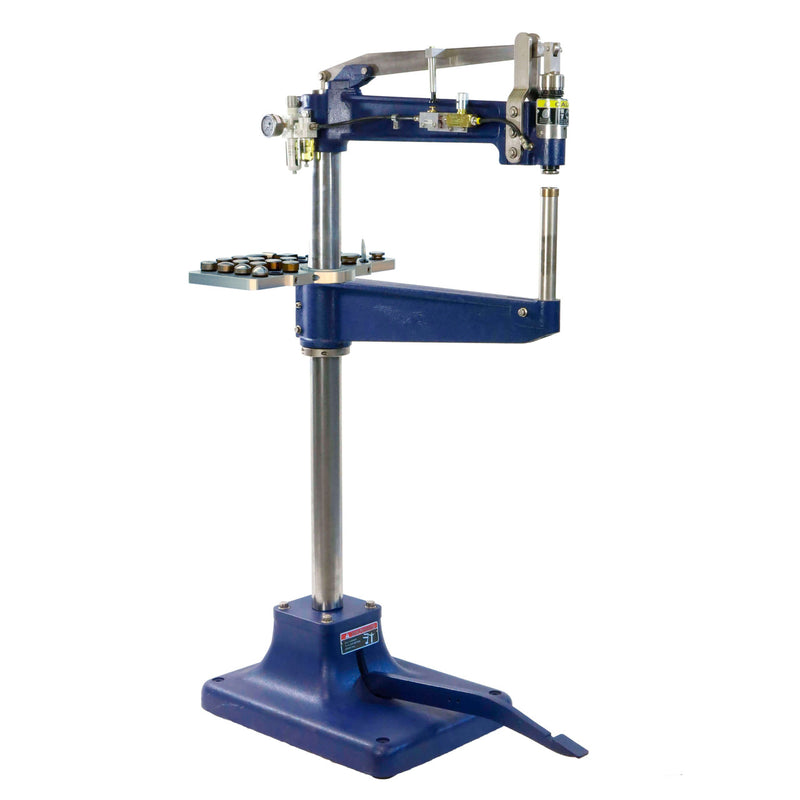

The ProLine 24" Cast Iron is American-made production-grade pneumatic planishing hammer. The cast-iron frame is the differentiator: it's rigid, heavy enough to dampen vibration on every strike, and built for the kind of repeated daily use that restoration, racing, and aircraft shops put on a planisher.

It uses the same CP-style tooling as the rest of the ProLine planishing hammer range, so dies and tooling carry between models. Foot-pedal control with an automatic air cutoff means the air-motor only runs when you're working a panel — safer and easier to control than continuous-run designs.

ProLine 24" Cast Iron Details

  • 24" throat depth for medium-to-large panels

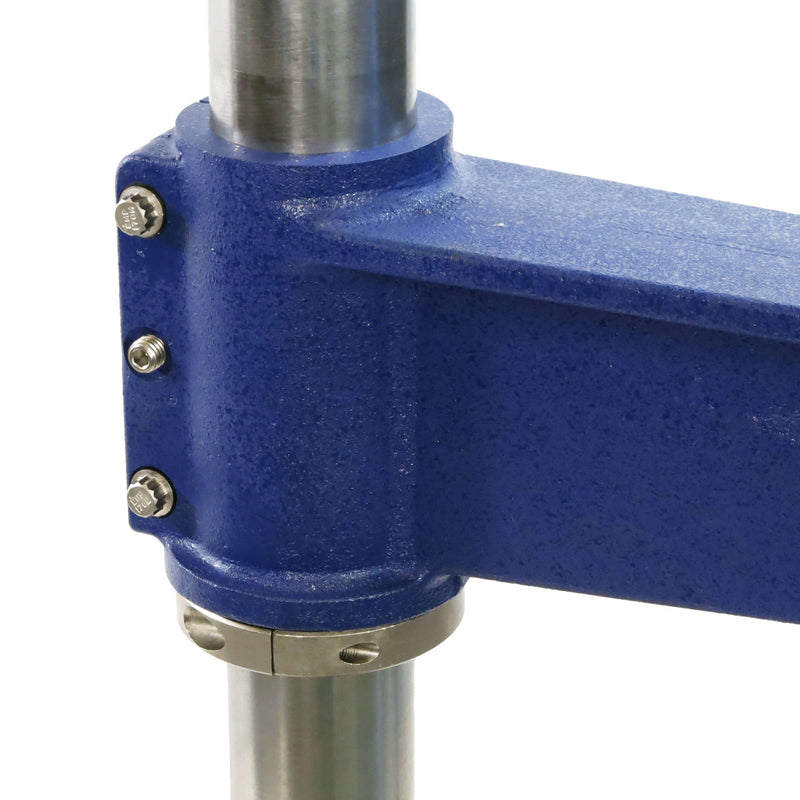

  • Cast-iron frame for stability and vibration damping

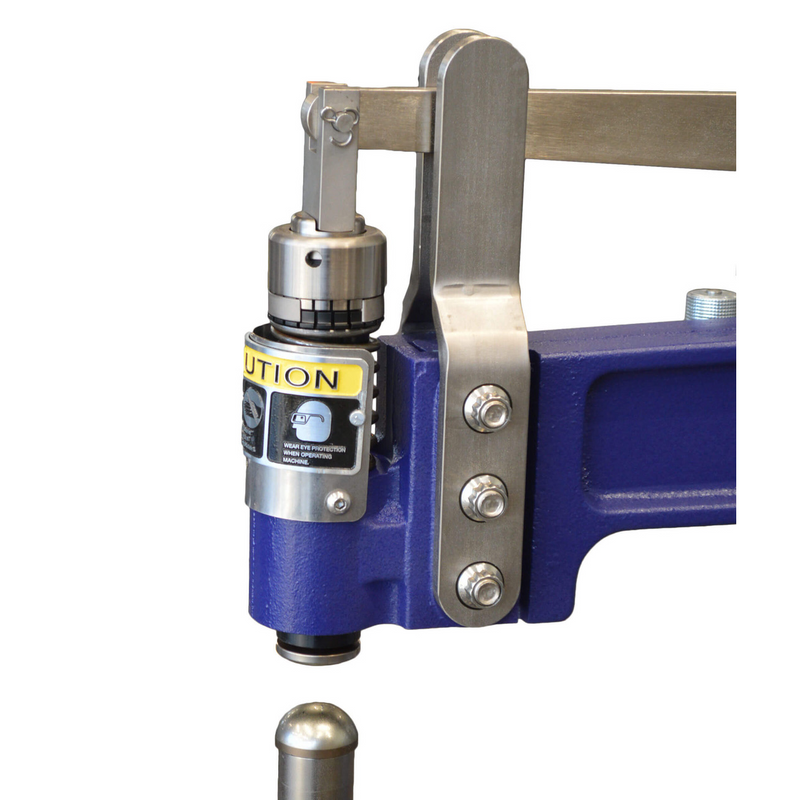

  • CP-style tooling — includes die rack and starter dies

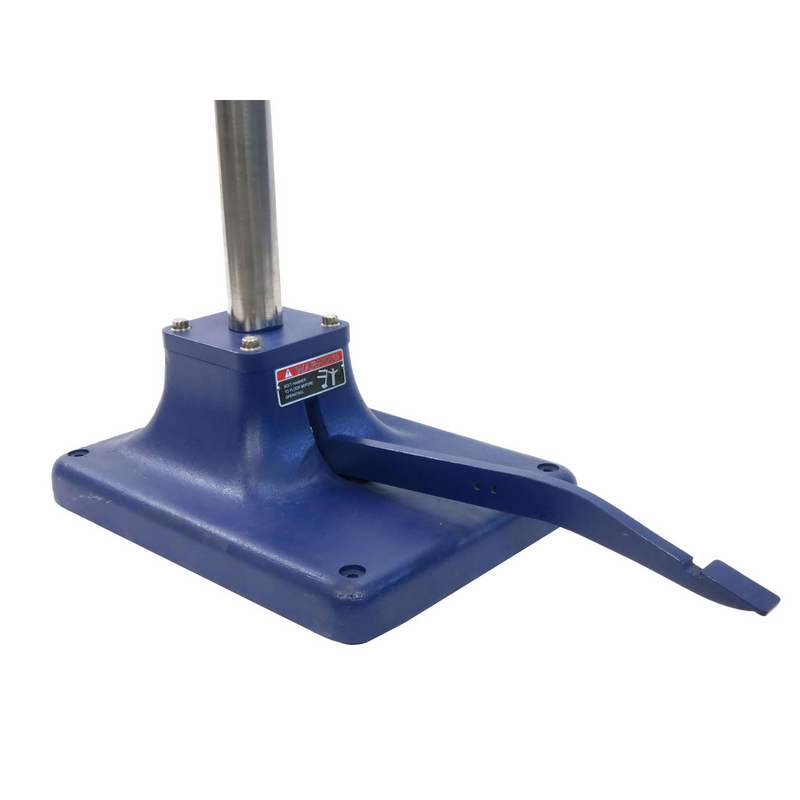

  • Foot-pedal activation with automatic air cutoff

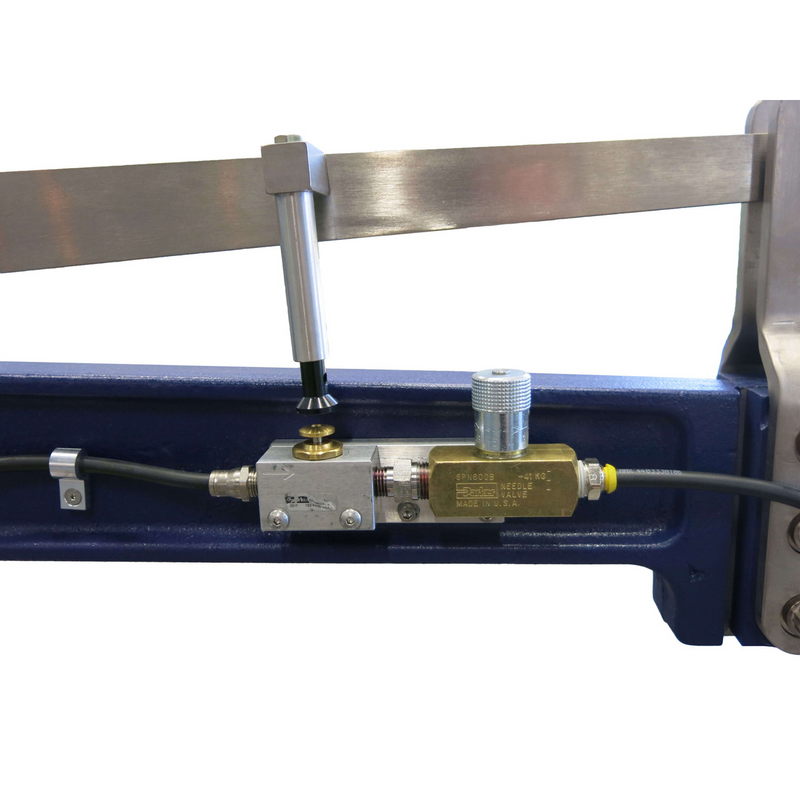

  • Needle valve for fine air-pressure adjustment
  • Optional bottom anvil holder (sold separately) for deeper contours
  • Requires 80-120 PSI / 13 CFM shop air
  • Weighs 450 lbs
  • Made in the USA

For a larger 36" version, see the ProLine 36" Cast Iron Planishing Hammer. For the full ProLine range including handheld CP-style hammers, see ProLine planishing hammers.
