Mittler Bros. 2200-HSK 10 Ton Spring Steel Hydraulic Press

Mittler Bros. 10 Ton Spring Steel Hydraulic Press (2200-HSK)

SKU: 2200-HSK  by Mittler Bros.
Made in the USA
$1,495.00 - $1,495.00
$1,495.00
$1,495.00 - $1,495.00
$1,495.00
Availability:
Only 1 left!

Call for our Best Deal (855) 605-4599

Mittler Bros. 2200-HSK - 10 Ton Spring Steel Punch Press

  • 10 ton capacity from a hydraulic cylinder with a 2" stroke
  • Set up to punch a 9/32" hole as delivered
  • Built-in guide for 1/16" x 1" wide material
  • Heat treated punch and die - other sizes available from Mittler
  • 3-3/4" deep throat with 3" maximum clearance between tooling
  • 3/8" plate frame
  • Hydraulic pump sold separately - air or electric
  • Made in USA by Mittler Bros.
  • Ships at 60 lb in an 8" x 5" x 15" box
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download Mittler Bros. 2200 Series Bench Press Manual

Mittler Bros. 2200-HSK 10 Ton Hydraulic Press for Punching Spring Steel

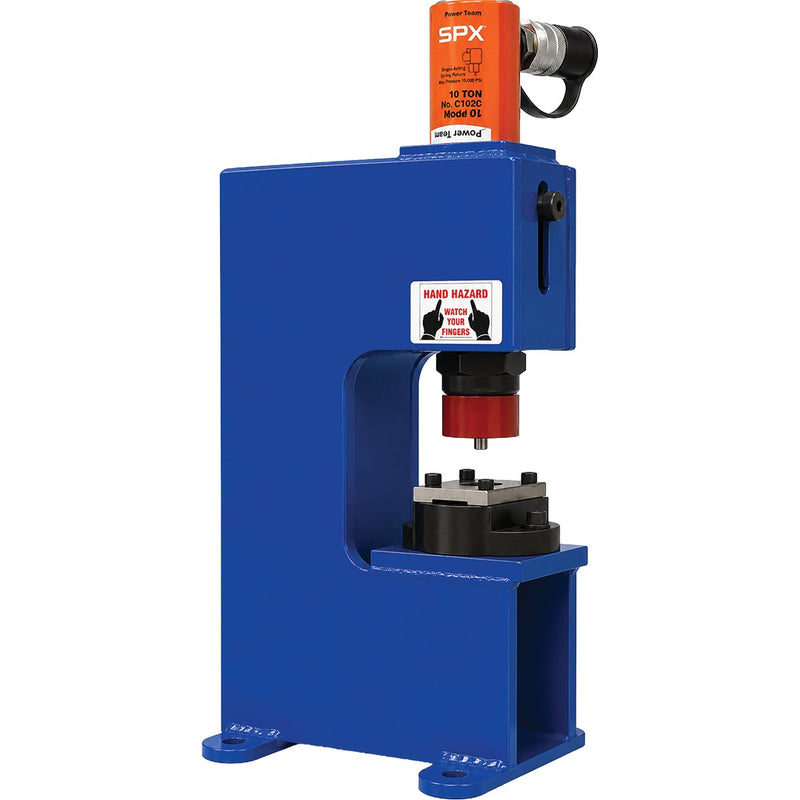

The Mittler Bros. 2200-HSK is a compact 10 ton hydraulic press that arrives set up to punch a 9/32" hole in spring steel strip. The punch and die are heat treated, and a built-in guide holds 1/16" x 1" wide material square under the punch.

Spring steel is hard on drill bits and slow to drill accurately. Punching it is faster and leaves a clean hole in the same place every time, which matters when you are making the same part in quantity. Mittler offers other punch and die sizes for the press.

The frame is 3/8" plate with a 3-3/4" throat and a 2" stroke. A hydraulic pump is needed and is sold separately: Mittler's air hydraulic pump runs off shop air, or use the electric hydraulic pump. The press ships at 60 lb in an 8" x 5" x 15" box.

The same press is available without the punch and die as the 2200-HS. See all bench presses.
