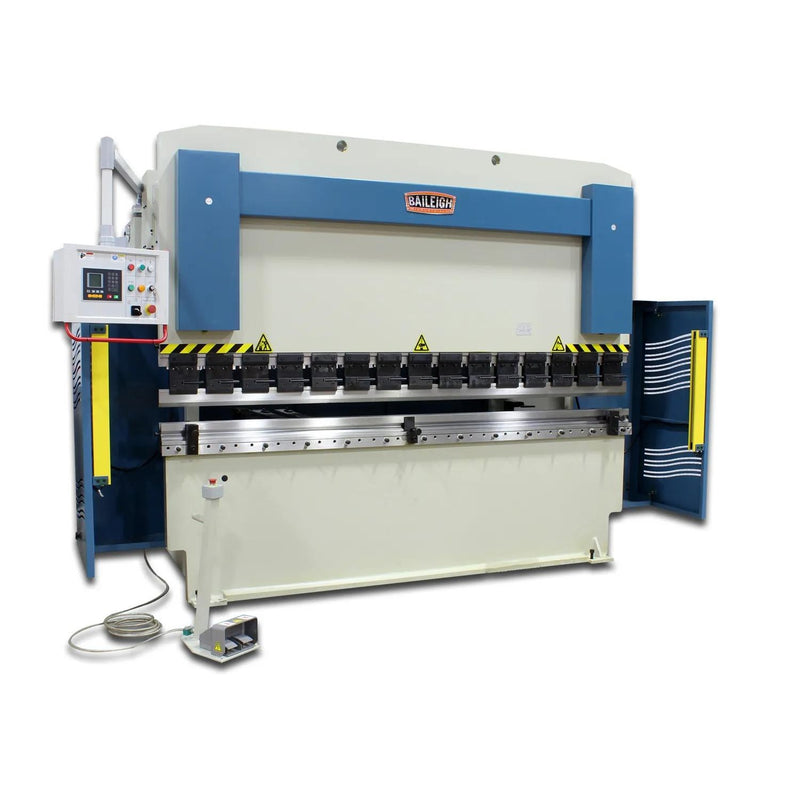

Baileigh BP-22410CNC Hydraulic Press Brake

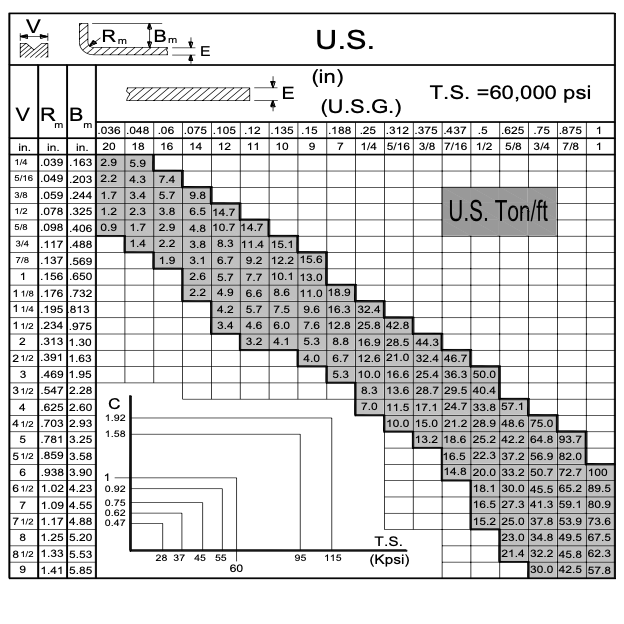

Baileigh BP-22410CNC Hydraulic Press Brake - Bending Pressure Chart
Baileigh BP-22410CNC Hydraulic Press Brake
Baileigh BP-22410CNC Hydraulic Press Brake - Bending Pressure Chart

Baileigh BP-22410CNC Hydraulic Press Brake

SKU: BA9-1000790  by Baileigh
Save $20,000.00 Save $20,000.00
$119,999.00
$119,999.00 - $119,999.00
$119,999.00
$99,999.00
$99,999.00 - $99,999.00
$99,999.00

Call for our Best Deal (855) 605-4599

Baileigh BP-22410CNC - 224-Ton CNC Press Brake, 125in Table

  • 224 tons of bending force - the heaviest tonnage in the range.
  • 125in table, 100in between housings.
  • 12.5in throat depth, 17.7in table to ram.
  • 5.9in stroke; 3.9in/sec approach, .236in/sec bending, 2.36in/sec return.
  • 2-axis CNC control, 23.62in back gauge on a 1/2 hp drive.
  • 4,500 psi maximum hydraulic pressure, 33 gallon reservoir.
  • 220V 3-phase at 33.5A, 15 hp main motor.
  • Ships by flatbed freight - plan the offload well in advance. One year warranty.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh BP-22410CNC Hydraulic Press Brake Manual

Baileigh BP-22410CNC 224-Ton CNC Hydraulic Press Brake, 125in Table

The BP-22410CNC is a 224-ton programmable hydraulic press brake with a 125 inch table and 100 inches between the housings. This is the heaviest tonnage Baileigh builds in this frame, for structural plate and thick-section work where the limit is force rather than length.

Throat depth is 12.5 inches with 17.7 inches from table to ram. Stroke is 5.9 inches, approach runs 3.9 inches per second, bending .236, return 2.36. The back gauge covers 23.62 inches driven by a 1/2 hp motor, under two-axis CNC control.

A 15 hp main motor works against a 4,500 psi maximum with a 33 gallon reservoir, drawing 33.5A on 220V 3-phase. The machine ships by flatbed freight and is heavy enough that the offload wants planning well in advance. One year warranty.

For the same 224 tons across a 157 inch bed, see the BP-22413CNC. The full range is in press brakes.
